JD Series All In One Solar Street Light with Motion Sensor
Model: JD-1950/JD-19100/JD-19150
- Residential JD Solar Street Light
- Power: 50W/100W/150W
- POLY Solar panel
- SMD5730 LED chips
- Built-in 32650 LiFePO4 battery
- One-piece die-cast aluminium housing
- IP65 Level Waterproof
- Remote contol
- CE,ROHS Certified
JD Series All In One Integrated Solar Street Light with Motion Sensor
JD Series Integrated Solar Street Light with Motion Sensor is one popular all in one solar street light for residential , it is Solar-powered, no-wiring, no electricity cost, dusk to dawn lighting automatically.
JD Solar Street Light equipped with super bright 5730 LED chip and high-capacity LiFePO4 battery. IP65 waterproofing, ideal for any outdoor environment.
JD Solar Street Light is Sleeved design, easy to install on the arm of a conventional AC street light, low cost replacement of traditional street lights with solar street lights can be achieved. The solar street light can be installed on wall or pole etc.
Technical Data of MJ-LH Series Solar Street Light with Motion Sensor
- Specificaton

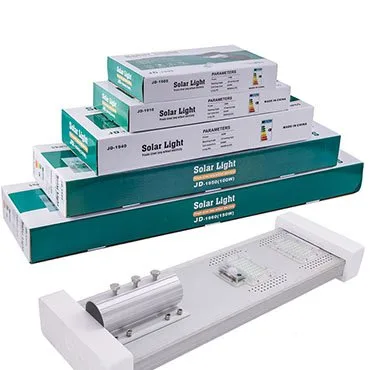

- Packing
| Model | JD-1950 | JD-19100 | JD-19150 |
| Rated power | 50W | 100W | 150W |
| Lumens | 2000LM | 2500LM | 3000LM |
| Solar panel | 16W/6V | 20W/6V | 25W/6V |
| LiFePO4 battery | 3.2V/20AH | 3.2V/30AH | 3.2V/40AH |
| Install height | 3-4M | 4-5M | 5-6M |
| Spacing | 10-12M | 12-15M | 15-20M |
| Material | Aluminum alloy | ||
| Color temp. | 6500K | ||
| Sensing distance | 12M | ||
| Work temp. | -20℃ ~ +60℃ | ||
| Pole diameter | 60mm | ||
| Water proof | IP65 | ||
| CRI | >85 | ||
| Charge time | 8H | ||
| Lighting time | Light on at dusk, Light off at dawn auto. 12 hours lighting time per day, 3-5 rainy days backup. | ||
| Model | JD-1950 | JD-19100 | JD-19150 |
| QTY/Carton | 6pcs | 4pcs | 3pcs |
| Carton weight | 26KG | 23.1KG | 21KG |
| Carton size (mm) | 680*320*550 | 870*470*285 | 1070*325*280 |
Details of JD Series Solar Street Light with Motion Sensor

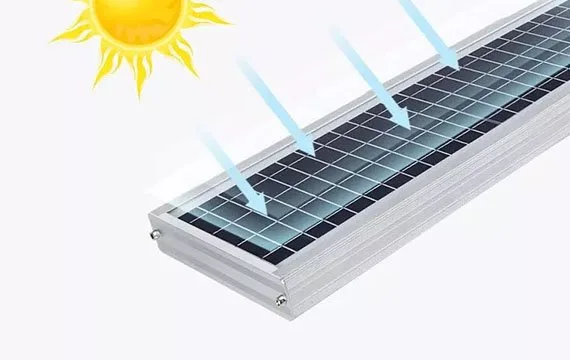

High Efficiency Solar Panel
The JD solar street light adopts polycrystalline silicon photovoltaic panel with high-conversion efficiency. The fully charing time is 6-8hours.
JD solar street light is all in one integrated design, easy installation, can be mounted on wall or pole.

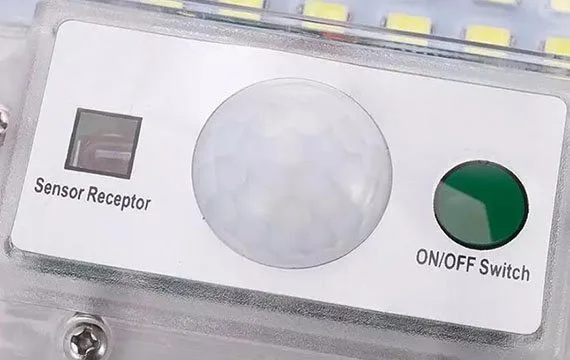

Motion Sensor
Equipped with PIR motion sensor, the JD solar street light can detect human movement within 8meters 120° detection angle.
100% full brightness when people movement is detected, 30% brightness after people leave the detection area.

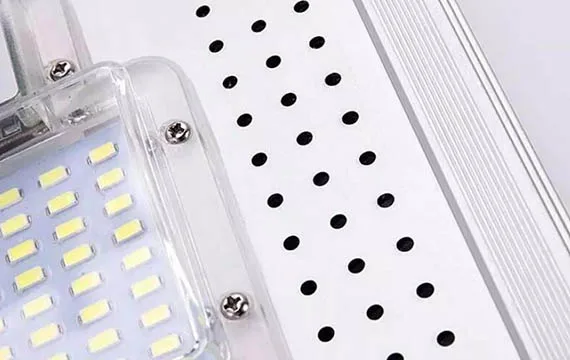

Aluminum Lamp Body
Thickened one-piece die-cast moulding, strong and durable, non-corrosive.
Simple structure and easy to disassemble.

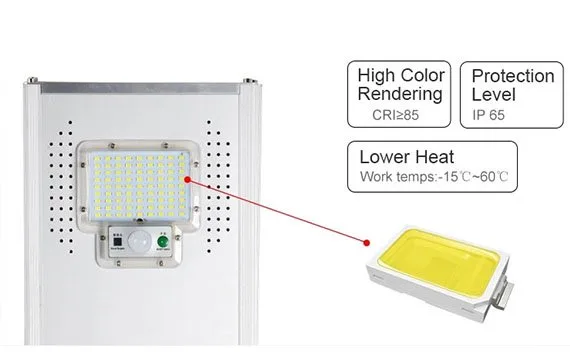

Super Bright LED
Equipped with large SMD5730 LED chips , brightness is higher.
120Degrees wide lighting angle, larger illuminated area.
LiFePO4 Lithium Battery
Built-in 32650 Lithium iron phosphate battery with waterproof protection, reliable performance. The charge and discharge time is up to 2000 times.
Working temperature is -20 degrees to +60 degrees.

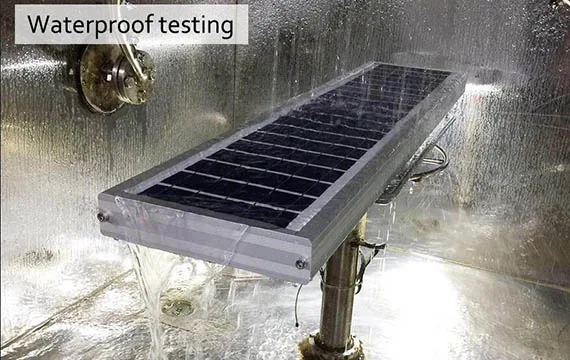

IP65 Waterproof
The JD solar street light has good waterproof and lightning-proof performance.
JD Series solar street light was passed IP65 waterproofing test, can work in all kinds outdoor of bad weather. Harsh Weather Resistance.
Features of JD Series Solar Street Light with Motion Sensor

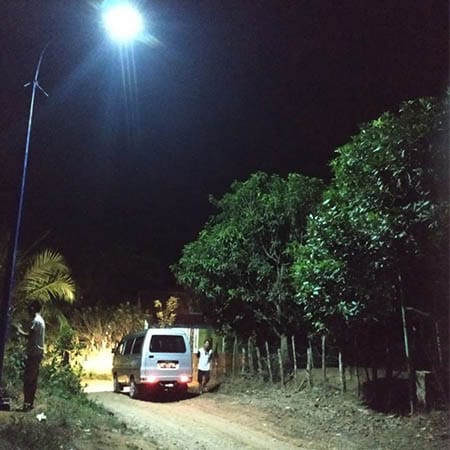

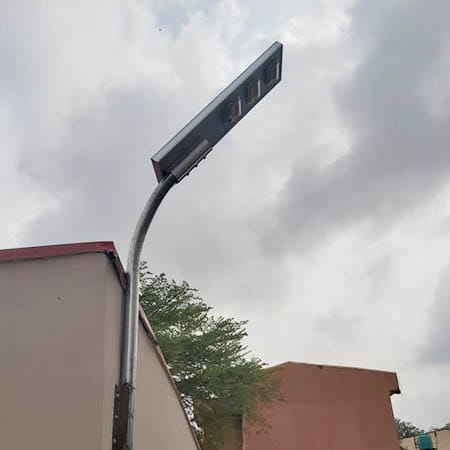

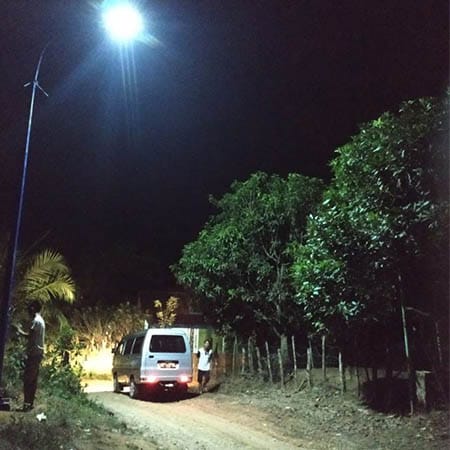

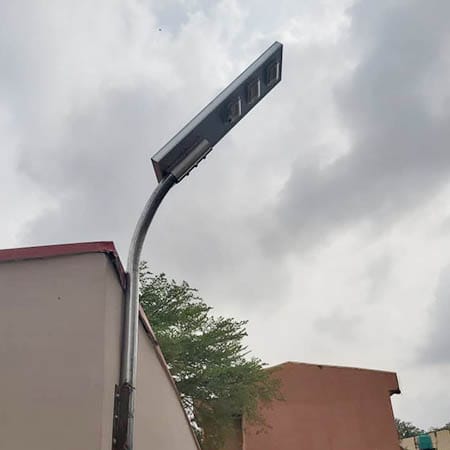

Photos of JD Series Solar Street Lights

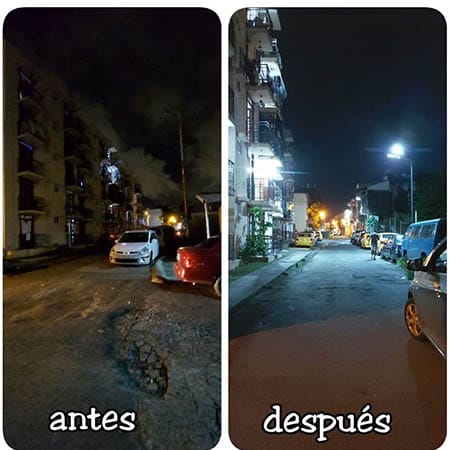

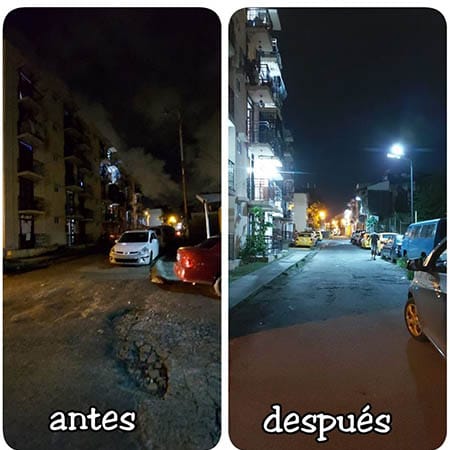

- Customer Feedback

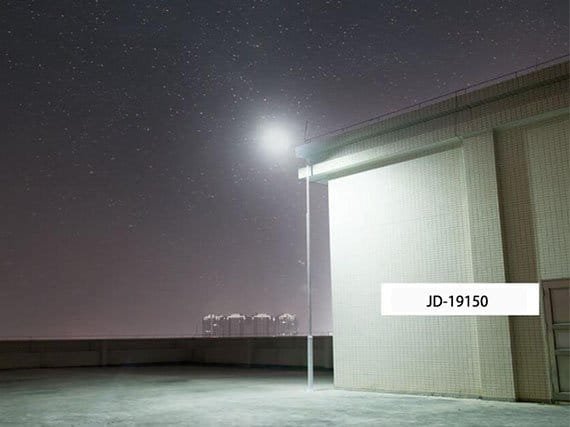

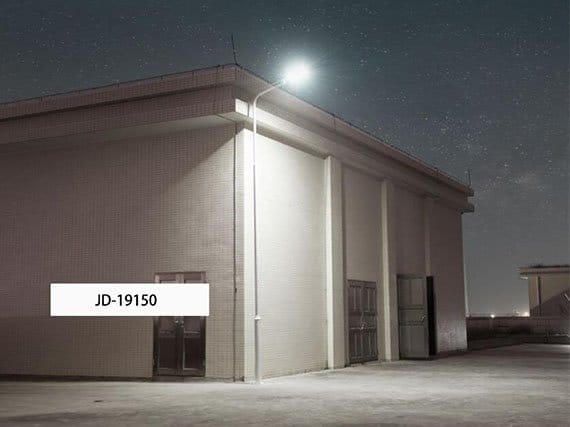

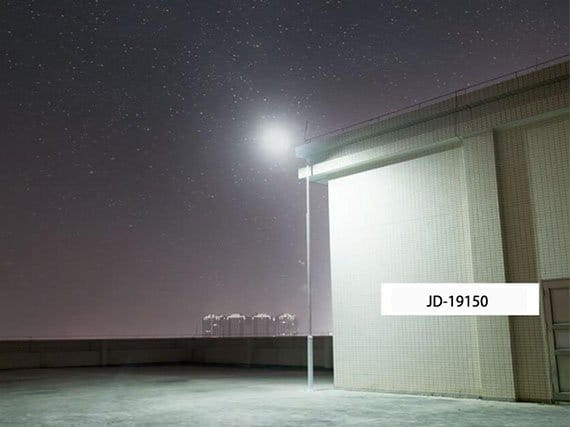

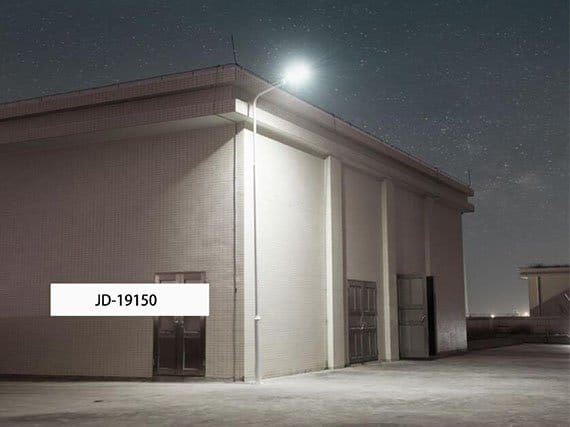

- Lighting Effect
Dimension of JD Solar Street Lights (3)
Video of JD Solar Street Light with Motion Sensor

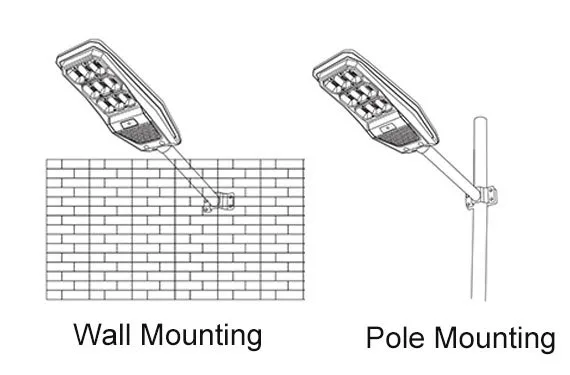

Two Installation Ways
Wall Mounting and Pole Mounting are available. Meet different installation requirment.
OEM Customized
Related Products (16)
The lighting time is 12hours per day, dusk to dawn auto working, 2-3 rainy days backup.
6-8 Hours.
the diameter of pole arm should be 60mm.
Diameter range is 60~100mm.
The battery lifetime is 4-5 years. After expiration, replacing the battery can continue to use.
6500K is default CCT., 3000K CCT. is optional.
500PCS.
Sample order is 3-5days, 20′ Container is 15days, 40′ Container is 20days.
Pole arm is not included, it is optional.
The warranty is 2 Years.
