Newskypower Solar Flood Lights
Newskypower has developed several series of solar flood lights. This includes solar flood light with remote, solar flood light with camera, and solar flood light with motion sensor.
Solar flood lights use solar energy to provide bright and efficient lighting for outdoor use. In these led solar flood lights, the lamp head and solar panel are separate, so the lamp can face the task while the panel faces the sun, within the supplied cable and mounting limits.
Choose a solar-powered LED floodlight for an entrance, yard, shopfront or sign. Start with the difference that matters to your order:
| Series | Documented difference | Choose by |
|---|---|---|

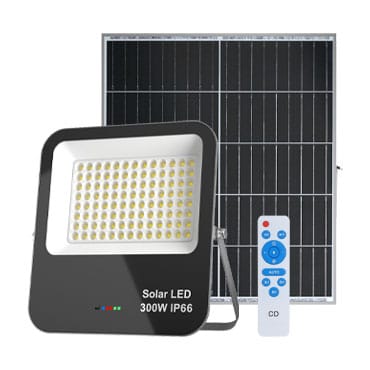

| CD01 | Aluminum housing, glass cover | White-light output and glass-front construction |

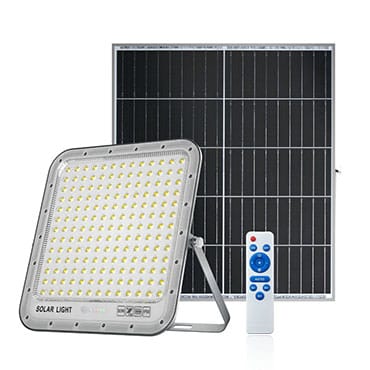

| CD01-PC | Aluminum housing, PC cover | White-light output and PC-front construction |
| MJ-BW | Radar sensor available as an option | Standard illumination or specified motion response |
| MJ-BWC | Camera and Wi-Fi connectivity | Lighting plus remote monitoring |
| MJ-AWC | RGB and app control | Decorative colour effects |
| SID / JD-Y | Tube / emergency formats | Different light distribution or portable use |
Check the installation position, available sunlight and lighting schedule first. In the compared 300W configurations, CD01 and CD01-PC have the same listed operating power and battery capacity; the front-cover material distinguishes them. Use cover type, output and controls together to narrow the shortlist. Motion-triggered lighting is separate from dusk-to-dawn switching.
Compare Solar Flood Light Configurations
Compare output and electrical consumption separately from the model suffix. These are supplier-listed values for the reference configurations; panel and battery details follow in the operating section. The card labels identify catalogue versions, not actual power consumption; confirm the available version in your offer.
| Model | Operating power | Light output | Lamp body size |
|---|---|---|---|
| CD01-PC-100W | 7–8 W | 1,000–1,200 lm | 240 × 200 × 48 mm |
| CD01-PC-300W | 17–18 W | 2,500–2,700 lm | 348 × 322 × 48 mm |
| CD01-200W | 10–11 W | 1,500–1,600 lm | 280 × 230 × 48 mm |
| CD01-300W | 17–18 W | 2,500–2,700 lm | 348 × 322 × 48 mm |
- Catalogue model labels: 60/100/200/300W
- MONO Solar Panel
- LiFePO4 Battery
- Aluminum Housing with glass cover
- Outdoor & Indoor lamp positioning, with the panel outdoors in suitable sunlight
- Remote Control, light control and timer
- Catalogue model labels: 60/100/200/300W
- MONO Solar Panel
- LiFePO4 Battery
- Aluminum Housing with PC cover
- Outdoor & Indoor lamp positioning, with the panel outdoors in suitable sunlight
- Remote Control
- Catalogue model labels: 60/100/200/300/500/800/1200/1500W
- MONO Solar Panel
- LiFePO4 Battery
- Die-casting Aluminum Housing
- Outdoor & Indoor lamp positioning, with the panel outdoors in suitable sunlight
- Remote Control; radar sensor available by configuration
- Catalogue model labels: 100/200/300/500/800/1200W
- MONO Solar Panel
- LiFePO4 Battery
- Die-casting Aluminum Housing
- CCTV WIFI Camera; confirm resolution and recording requirements for the selected version
- Remote Control & APP Control
- Catalogue model labels: 60/100/200/300/500/800W
- MONO Solar Panel
- LiFePO4 Battery
- Die-casting Aluminum Housing
- Outdoor & Indoor lamp positioning, with the panel outdoors in suitable sunlight
- Remote Control
- Catalogue model labels: 60/100/200/300/500/800W
- MONO Solar Panel
- LiFePO4 Battery
- Die-casting Aluminum Housing
- RGB colour effects; confirm music-response functions for the selected version
- Remote Control & APP Control
- Catalogue model labels: 100/200/300/400/600W
- MONO Solar Panel
- LiFePO4 Battery
- ABS Housing
- Outdoor & Indoor lamp positioning, with the panel outdoors in suitable sunlight
- Remote Control & APP Control: confirm the supplied control version
- Catalogue model labels: 100/200/300W
- POLY Solar Panel
- LiFePO4 Battery
- PC+PVC Lamp Head
- Outdoor & Indoor lamp positioning, with the panel outdoors in suitable sunlight
- Remote Control
- Catalogue model labels: 70W/90W
- MONO Solar Panel
- Lithium Battery
- Catalogue colour options: 3000K/4000K/6500K; confirm the ordered version
- Outdoor & Indoor use within the product's specified conditions
- Constant lighting/SOS/Warning flash
Features of Newskypower Solar Flood Lights
Wide Range of Applications
LED solar flood light is a great way to light up the home or outdoor living spaces such as pathways, walkways, plazas, shops, parking lots, billboards, etc.
Easy Installation
A separate solar panel avoids the need to bring a mains supply to the lamp, but the panel still needs its specified connection to the light. Verify the mounting surface, fixings and cable route before installation.
Keep the lamp, panel and installation accessories tied to the same model. These reference arrangements help you plan the order:
▶ Installation details
| Series | Cable and mounting | Supply scope |
|---|---|---|
| CD01 / CD01-PC | Installation sheets describe a 4 m panel connection; the PC quotation also lists a pole-mount bracket separately | Confirm the complete accessory list and fixings in the quotation |
| MJ-BW | Quoted version uses a 3 m panel connection; the manual illustrates wall mounting | Manual lists lamp, panel, remote, support bracket, wall bolts and operating instructions |
Check bracket hole positions against the drawing for the ordered version; lamp body dimensions are not mounting-hole spacing. Poles, foundations, special adapters and extension cables are items to specify separately. A wall-mount illustration does not establish compatibility with every pole.
- Plan positions: choose an unshaded panel location and verify cable reach to the lamp.
- Fix the supports: use brackets and fasteners suitable for the substrate and loads, with access for panel cleaning.
- Connect: follow the model's connection order and seal matching connectors; do not cut supplied wiring to extend it.
- Commission: follow initial charging instructions, check light-control response as directed, then verify the selected programme and aiming after dark.

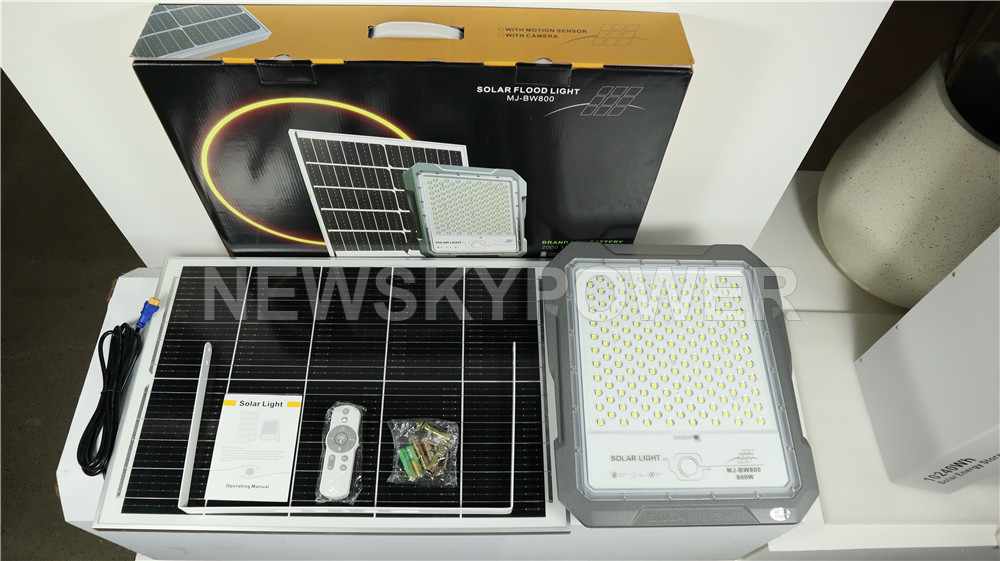

MJ-BW800 kit reference from source photographs; final package contents follow the order specification.
Wide Beaming Angle
Large Lighting Area
Solar-powered LED flood lighting should be selected for the site, not by a universal coverage-area claim. A solar flood light is a useful option where mains wiring is difficult, an unshaded panel position is available and the lighting schedule fits the system's energy budget. Persistent shade, no practical panel-to-lamp route, or continuous output beyond the available solar capacity calls for a revised panel arrangement, system or power supply.
Select light distribution for the task: an entrance threshold, a yard or an evenly lit sign. Greater mounting distance changes the light reaching the surface; aiming and beam angle determine where it falls. Provide dimensions, height and lamp positions before selecting quantity.
High Brightness
The compared CD01/CD01-PC configurations list 7,500–8,000 K white light. Other colour requirements need a matching supply option. RGB solar flood light options serve decorative colour effects; they are not a direct substitute for a specified white-light output. Our guide to lumens, watts and coverage explains why total lumens alone cannot establish site illuminance.

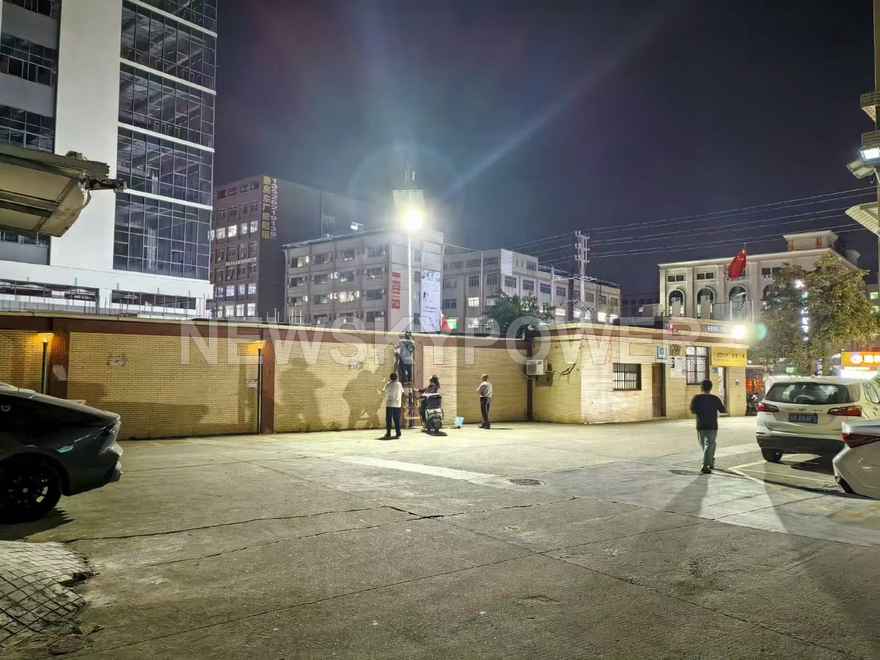

A yard lighting scene showing fixture position and surrounding obstructions.
Lighting for Billboard
Illuminate billboards with bright, uniform lighting to keep advertisements visible and eye-catching throughout the night.
To achieve that goal, specify the required hours and check both the light distribution and the energy budget. Automatic dusk-to-dawn operation does not by itself guarantee full output until morning.
Recommended starting model for this brief: MJ-BW800. For a 4 × 2 m sign with the proposed lamp position 1.5 m from the sign face and six evening hours of lighting, begin the layout and energy assessment with MJ-BW800 rather than choosing by the catalogue wattage label alone. Its reference quotation lists a 50 W / 5 V monocrystalline panel and a 3.2 V / 45 Ah LiFePO₄ battery (144 Wh nominal). A dated MJ-BW800 sample photometric report measured 3,148.1 lm; request photometry for the version being supplied.
▶ Billboard sizing checks
- Select the number and positions of MJ-BW800 luminaires from the sign-face target. Specify required illuminance and uniformity, then use the supplied distribution data or a site trial to check the 4 × 2 m surface at the proposed 1.5 m distance. The sample lumen figure alone cannot establish even coverage or the required quantity.
- Specify the six-hour operating profile. For illustration, an average electrical load of 17–18 W over six hours would require 102–108 Wh before system losses. This is a project-load example, not a measured MJ-BW800 power rating. Its 144 Wh nominal battery makes MJ-BW800 a model to evaluate, but usable battery energy, controller settings and the actual operating load must be confirmed before promising six hours.
- Verify repeat-night operation before ordering. Ask for the agreed dimming schedule, discharge test at the proposed setting, and recharge calculation for the site’s lowest-sunlight month. If the verified output or energy margin is insufficient, specify a larger battery/panel configuration or revise lamp count and schedule with the supplier.
This gives the buyer a named starting product and a clear way to confirm that it will light the sign for the required hours. The final model quantity and configuration follow the lighting and autonomy check.
Sturdy and Durable
Die-cast Aluminum

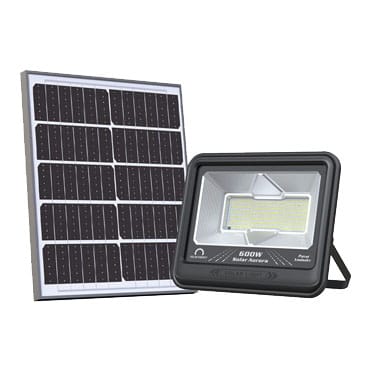

CD01, CD01-PC and MJ-BW offer aluminum housings; MJ-SAR is an ABS alternative. Use the specified body material and mounting arrangement to compare versions rather than assuming that every series has the same construction.
Glass or PC lampshade
The compared CD01 quotation lists an aluminum housing and glass cover; CD01-PC lists aluminum and PC. If tempered glass is required, request confirmation for the quoted cover. Material names alone do not establish impact resistance or an unbreakable cover.
The CD01-PC specification sheet declares IP66 for its documented version. Match the actual order to the relevant specification and test evidence; do not extend that declaration to every series. Protection also depends on the completed installation: enclosure, cable entries and connections.
Specify rain and dust exposure when requesting the model's IP rating and supporting documentation. Coastal salt exposure, corrosion or possible immersion require a separate suitability check; an IP rating alone does not describe these conditions.
Intelligent Dimming
Energy Saving
With a programmed reduction profile, output can change over the night. In different time periods, the brightness is different. In the second half of the night when there are fewer people, the brightness will be reduced, thus saving battery power.
In dusk-to-dawn mode, the light responds to the solar panel's voltage. When night falls and the voltage of the solar panel is below the set voltage point, the light will automatically come on. When dawn comes and the voltage of the solar panel reaches the set voltage point, the light will automatically turn off.
▶ Battery & control details
Solar flood lights with battery backup store daytime energy for use after sunset. The output table above pairs with these reference electrical configurations:
| Model | Monocrystalline panel | LiFePO₄ battery |
|---|---|---|
| CD01-PC-100W | 6 V / 15 W | 3.2 V / 10 Ah / 32 Wh |
| CD01-PC-300W | 6 V / 30 W | 3.2 V / 25 Ah / 80 Wh |
| CD01-200W | 6 V / 20 W | 3.2 V / 15 Ah / 48 Wh |
| CD01-300W | 6 V / 30 W | 3.2 V / 25 Ah / 80 Wh |
Wh is nominal voltage × capacity, not entirely usable battery energy. Values apply to these configurations; final specifications are set in the quotation.
Choose the operating mode around the task:
- Constant output: suitable when a steady lighting level is required. Calculate energy across all required hours.
- Timed reduction: suitable when lower output later at night is acceptable. Establish the permitted settings and times.
- Motion response: suitable when light should increase on approach. Include standby consumption, expected activity and the available sensor configuration.
Dusk-to-dawn control switches the system; it does not specify which output mode runs. Check nightly demand against usable battery energy, then assess daily recharge under seasonal sunlight, shade and system losses. A battery may support one night yet not recover enough charge for repeated nights.

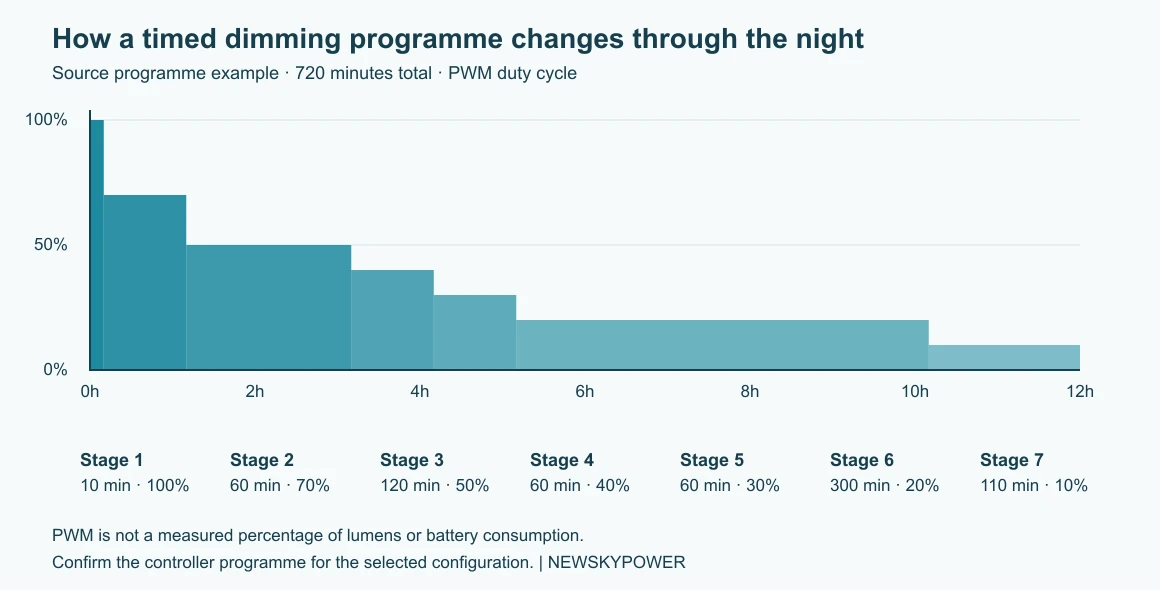

The seven-interval illustration totals 12 hours and explains staged PWM control. Its percentages are controller settings, not measured brightness or a guaranteed programme for every model.
Programme example; select the actual control profile with the quoted configuration.

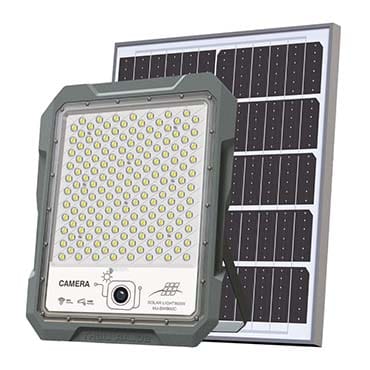

Security Camera (Optional)
Smart Monitoring
According to the needs of the market, we have also developed solar flood light with camera, which can connect the light to the network via WiFi, so users can monitor and operate remotely via cell phone.
The solar flood lights with camera range is for lighting plus monitoring. Provide Wi-Fi conditions, preferred resolution, storage and alert requirements; recording time depends on the selected version and settings. Where motion alerts are supported, confirm how alerts reach the user and whether the function requires a particular app or service.
For approach-triggered light without a camera, compare motion-sensor lighting options. Camera alerts and changes in lighting output are separate functions.
Powerful Factory of Solar Flood Lights -Newskypower
Newskypower is a manufacturer and supplier of solar flood lights in China. We develop solar lighting configurations for distributors and outdoor projects.
- Solar lighting experience since 2008.
- Extensive product range, one-stop purchasing.
- Advanced technology and production facilities.
- OEM/ODM Service; confirm the customisation scope for the order.
For a project: send the location, site dimensions, mounting positions, target illumination, night schedule and quantity. The quotation can then identify a candidate configuration, operating profile, mounting components and items requiring site confirmation.
For distribution: send the target market, preferred series, quantities by model, sample needs and branding or packaging requirements. Request a line-by-line offer showing configurations, kit contents, options, packing, production timing, applicable warranty and spare-part arrangements.
Product Quality is The Life of a Company
The self-developed aging rack system, intelligent detection and monitoring of light operating status.
Check the selected configuration over its agreed lighting schedule, including the controller programme and operating response.
Request the report matching the ordered model and enclosure. The claimed IP rating should identify the tested version and conditions.
Also check cable entries and connectors for site rain exposure; the enclosure report does not cover every field connection.
Detect the voltage, current, and power of the solar panel by simulating sunlight to check if it is normal. Match the supplied panel to the lamp and charging system.
Specify destination-market documentation requirements in the inquiry. The applicable reports and declarations must match the supplied product.
Real Cases of Newskypower Solar Flood lights
This is a basketball court lighting case. The existing photograph shows the lighting arrangement. For a similar request, send the court layout, mounting positions and required lighting standard. These inputs help determine fixture quantity, aiming and uniformity for your site.
The yard-and-gate application illustrates a more local lighting task. When comparing the brightest solar flood light for a yard, check the light reaching the gate and approach rather than the model suffix alone. Focus on the approach, mounting position and required night schedule before choosing a larger model. Use your required illuminance and operating schedule to assess the proposed configuration.
Related Product
FAQs
Yes, we are a professional manufacturer of solar flood lights since 2008.
The referenced CD01/CD01-PC and MJ-BW quotations list 10–20 days depending on quantity. Confirm sample timing, the model mix and the production schedule in your offer; a container size alone does not fix the lead time.
The CD01/CD01-PC installation documentation describes 4 m, while the quoted MJ-BW version uses 3 m. Confirm the cable supplied with the ordered configuration.
MJ-BW upgrade notes describe 3 m and 5 m extension options. Provide the required total run and series so connectors, conductor size and voltage drop can be checked. These options do not establish a universal maximum cable length.
Service life depends on the battery, operating programme, temperature and maintenance. Request the applicable lamp, battery and accessory warranty terms, claims process and replacement parts. A warranty period is not a guarantee of identical service life for every component.
Compare CD01's glass cover with CD01-PC's PC cover, then match output and battery capacity. MJ-BW offers optional radar sensing. A 100W or 300W model label does not equal continuous electrical consumption; use the documented operating-power value and controller programme.
Match the supplied model's IP rating and connection arrangement to the site's rain and dust exposure. Our IP-rating guide explains the rating differences.
Yes, where the model's conditions, panel sunlight and installation are suitable. A permanently shaded site needs a different panel position or supply arrangement.
Specify the required backup period and minimum lighting level. The answer needs the selected programme, starting battery charge and recharge conditions; there is no single figure for every configuration.
No. Use the series-specific installation summary and the quotation's kit list. Identify any pole adapters, foundations or additional cable before ordering.
Include those requirements with the model mix and quantities. The offer will establish sample arrangements, minimum order quantities, packaging and production timing.
Send a project brief or distribution purchase list using the form below. Attach site photographs, a sketch or packaging requirements where relevant so NEWSKYPOWER can prepare a specific response.
