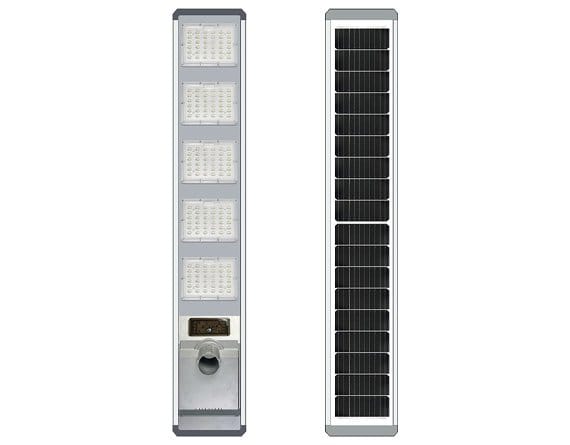

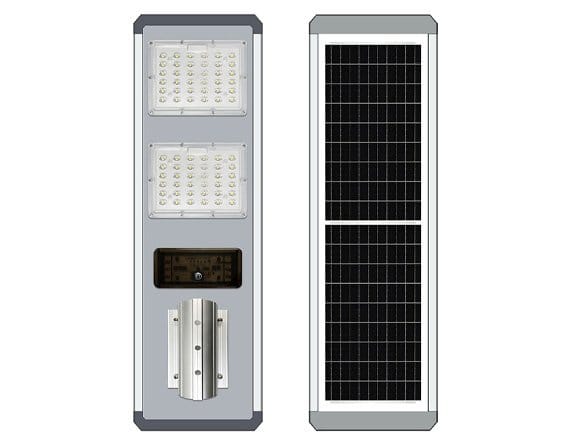

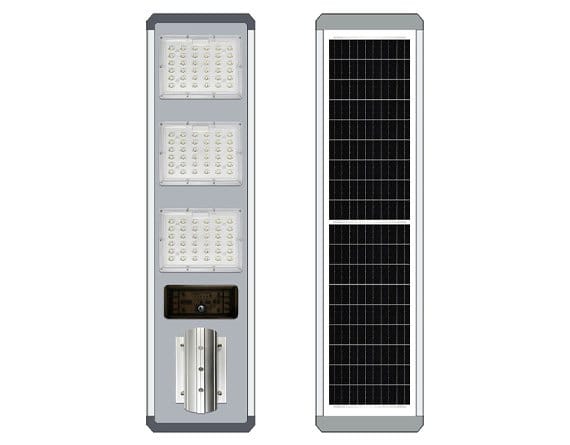

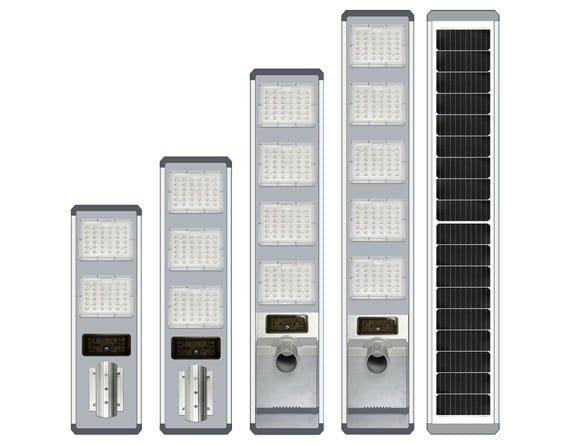

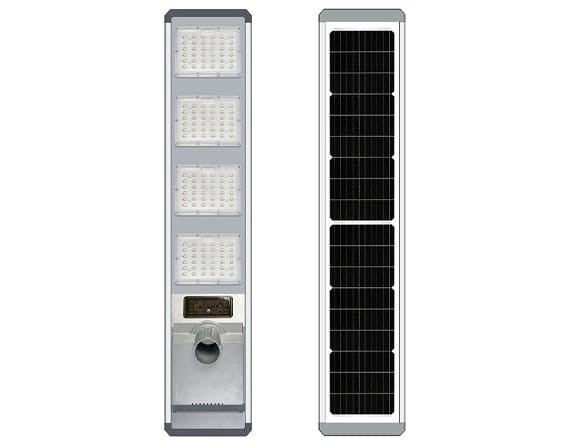

JD-H Series Solar Street Light
Model: JD-H200/JD-H300/JD-H400/JD-H500
- Residential JD Solar Street Light
- Power: 200W/300W/400W/500W
- MONO Solar panel
- SMD5054 LED chips
- LiFePO4 lithium battery
- Aluminum+ABS housing
- IP65 Level Waterproof
- CE, ROHS Certified
Technical Data of JD-H Series Solar Street Light
- Specificaton
| Model | JD-H200 | JD-H300 | JD-H400 | JD-H500 |
| LED light | 200W | 300W | 400W | 500W |
| Lumen | 2310lm | 3300lm | 4620 lm | 5640lm |
| LED chip | 72pcs , SMD5054 | 108pcs , SMD5054 | 144pcs , SMD5054 | 180pcs , SMD5054 |
| Battery | 3.2V/22AH, LiFePO4 | 3.2V/30AH, LiFePO4 | 3.2V/35AH, LiFePO4 | 3.2V/45AH, LiFePO4 |
| Solar panel | 28W,MONO | 35W,MONO | 46W,MONO | 55W,MONO |
| Work mode | Constant lighting | |||
| Material | Aluminum+ABS | |||
| Charge time | 4-6H | |||
| Discharge time | ≥12H | |||
| Lamp size(mm) | 255*820 | 255*1000 | 255*1250 | 255*1500 |
| Install height | 4-6M | 4-6M | 5-7M | 5-8M |
Details of JD-H Series Solar Street Light
MONO
Solar Panel
MONO solar panel with high efficiency >20%.
Fast charging technology.
Long lifespan over 25 years. Dusk to dawn work auto.
SMD5054
High Brightness LED
Selected high-quality SMD5054 LED chips with optical lens.
High lighting efficiency>160LM/W. 140-degree wide lighting angle.
CRI>80. Constant lighting for a whole night.
LiFePO4
Lithium Battery
Built-in rechargeable new LiFePO4 lithium battery.
Circulation time >2000 times.
Lifespan is more than 5 years.
IP65
Outdoor Waterproof
Suitable for all kinds of outdoor environments and rainstorm weather.
Passed IP65 waterproof testing by the authoritative laboratory.
Perfectly sealed waterproofing.
Die-casting Aluminum
Thickened Housing
Thickened one-piece die-cast aluminum body.
Stable and strong, waterproof and rustproof.
Good heat dissipation.
Features of JD-H Series Solar Street Light
MONO Solar Panel
SMD5730 bead
LiFePO4 Lithium Battery
Aluminum Body
IP65 Waterproof
Dusk to Dawn Auto
