JD-S Series Solar Street Light

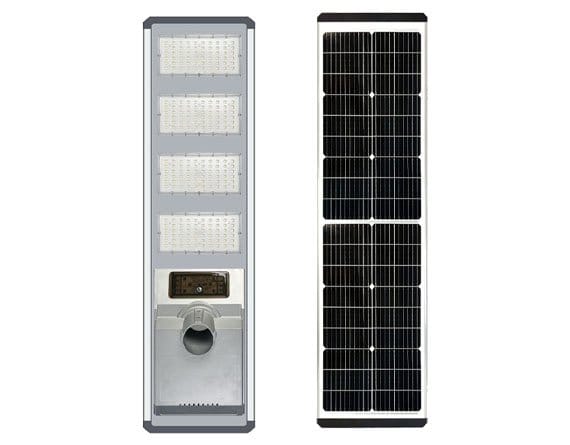

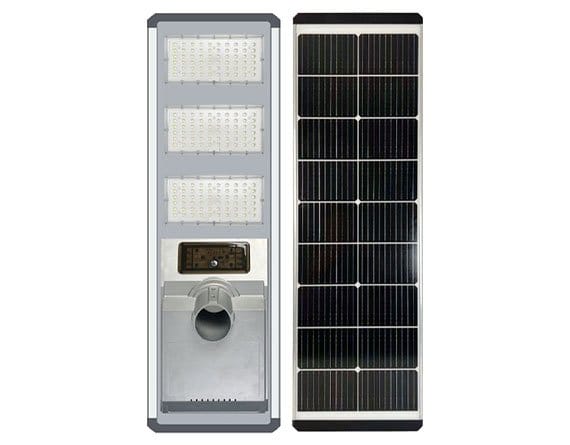

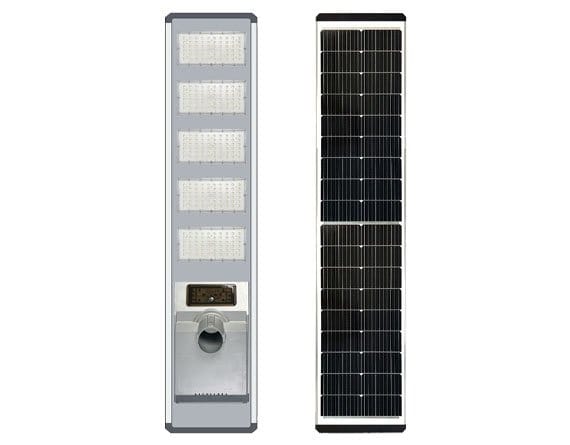

Model: JD-S300/JD-S400/JD-S500
- Residential JD Solar Street Light
- Power: 300W/400W/500W
- MONO Solar panel
- SMD5054 LED chips
- LiFePO4 lithium battery
- Aluminum+ABS housing
- IP65 Level Waterproof
- CE, ROHS Certified
Technical Data of JD-S Series Solar Street Light
- Specificaton
| Model | JD-S300 | JD-S400 | JD-S500 |
| LED light | 300W | 400W | 500W |
| Lumen | 7920lm | 9980lm | 12540lm |
| LED chip | 180pcs , SMD5054 | 240pcs , SMD5054 | 300pcs , SMD5054 |
| Battery | 3.2V/50AH, LiFePO4 | 3.2V/70AH, LiFePO4 | 3.2V/90AH, LiFePO4 |
| Solar panel | 90W,MONO | 110W,MONO | 135W,MONO |
| Work mode | Constant lighting | ||
| Material | Aluminum+ABS | ||
| Charge time | 4-6H | ||
| Discharge time | ≥12H | ||
| Lamp size(mm) | 400*1250 | 400*1500 | 400*1800 |
| Install height | 6-8M | 6-10M | 6-12M |
Details of JD-S Series Solar Street Light
MONO
Solar Panel
MONO solar panel with high efficiency >20%.
Fast charging technology.
Long lifespan over 25 years. Dusk to dawn work auto.
SMD5054
High Brightness LED
Selected high-quality SMD5054 LED chips with optical lens.
High lighting efficiency>160LM/W. 140-degree wide lighting angle.
CRI>80. Constant lighting for a whole night.
LiFePO4
Lithium Battery
Built-in rechargeable new LiFePO4 lithium battery.
Circulation time >2000 times.
Lifespan is more than 5 years.
IP65
Outdoor Waterproof
Suitable for all kinds of outdoor environments and rainstorm weather.
Passed IP65 waterproof testing by the authoritative laboratory.
Perfectly sealed waterproofing.
Die-casting Aluminum
Thickened Housing
Thickened one-piece die-cast aluminum body.
Stable and strong, waterproof and rustproof.
Good heat dissipation.
Features of JD-S Series Solar Street Light
MONO Solar Panel
SMD5730 bead
LiFePO4 Lithium Battery
Aluminum Body
IP65 Waterproof
Dusk to Dawn Auto
