INTREPID PIONEER ABS Solar Street Light with Motion Sensor

Model: MJ-LH8100 / MJ-LH8200 / MJ-LH8300

Residential Solar Street Light with Motion Sensor
Power: 100W/200W/300W
POLY Solar panel
SMD2835 LED beads
LiFePO4 Lithium battery
ABS Material body
IP65 Waterproof
Remote contol
CE,ROHS Certified

Summary
Technical Data
Details
Feature
Photos
Dimension
Top

INTREPID PIONEER MJ-LH Series Solar Street Light with Motion Sensor

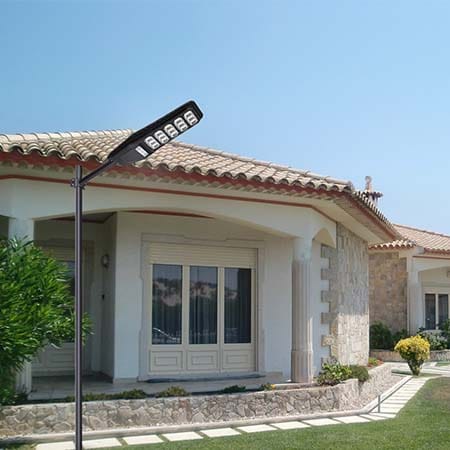

INTREPID PIONEER MJ-LH Series LED Solar Street Light with Motion Sensor is one of the most popular all in one solar street lights, Solar-powered, no electricity bill, turn on at dusk and turn off at dawn automatically.

MJ-LH Series LED Solar Street Light provides 6500K daylight white light CCT., 35000K is optional. It’s equipped with super bright LED beads and LiFePO4 battery. IP65 waterproof makes it work well even in bad weather.

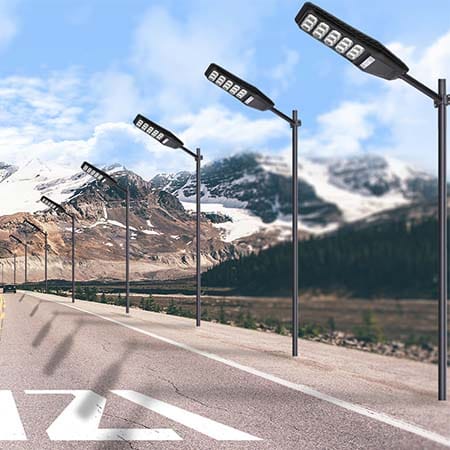

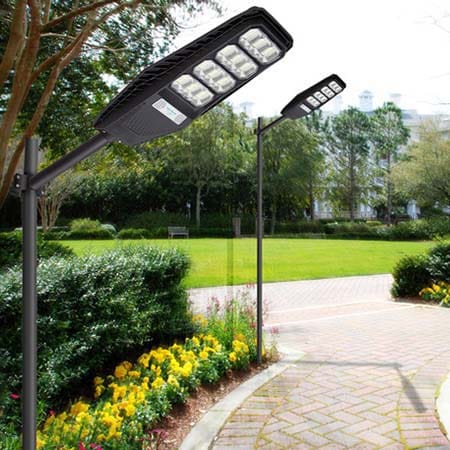

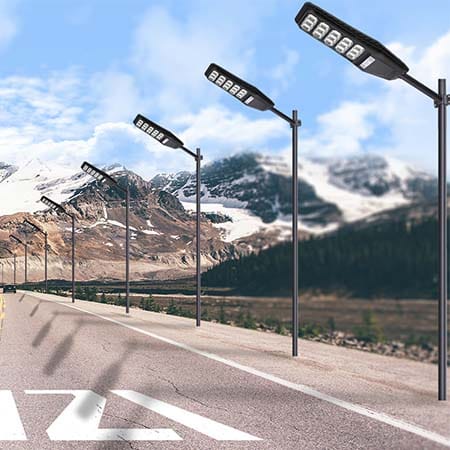

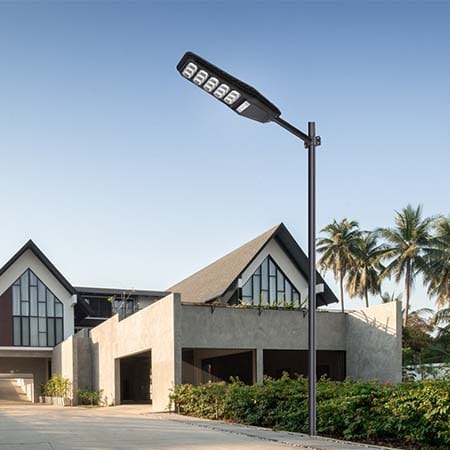

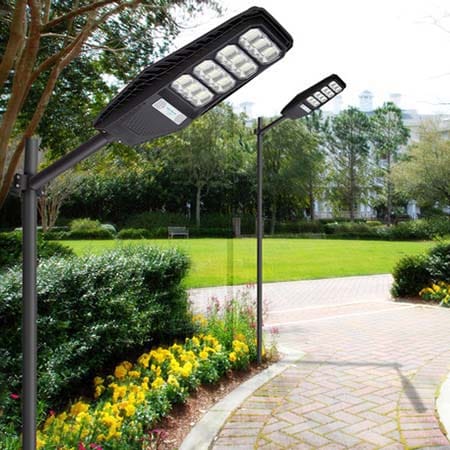

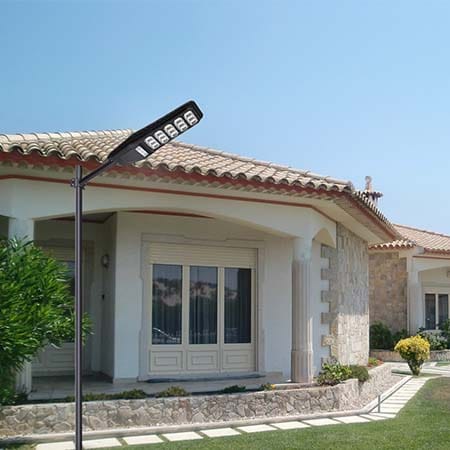

MJ-LH Series LED Solar Street Light come with wall and pole mounting two kinds accessories set, Wire-free, easy installation, widely used in garden, park, walk road, driving way, courtyard etc.

The Solar Street Light with Motion Sensor is equipped with a remote control providing long-distance setting. Different lighting modes and brightness for your choice.

MJ-LH solar light

Structure of INTREPID PIONEER MJ-LH Series Solar Street Light

INTREPID PIONEER MJ-LH Series Solar Street Light with Motion Sensor

Specificaton
Packing

Model	MJ-LH8100	MJ-LH8200	MJ-LH8300
Rated power	100W	200W	300W
LED bead	360pcs,2835	480pcs,2835	600pcs,2835
Lumens	1200LM	1800LM	2400LM
Solar panel	10W/4V	15W/4V	18W/4V
LiFePO4 battery (DC3.2V)	12000mAh	18000mAh	24000mAh
Mounting height	3-4Meters
Color temp.	6000K
Material	ABS
Water proof	IP65
CRI	>80
Charge time	8H
Work time	3 Nights +
Lighting mode	Light on at dusk, Light off at dawn Auto. 4 work modes.

Lighting Mode

Intelligent automatic power reduction

MODE	0-1H	2-3H	4-5H	6H	6H-Dawn
AUTO mode	100%-80%	80%-60%	60%-50%	50%-40%	30%
2+X/3+X	100%-80%	80%-60%	60%-50%	50%-40%	30%
Always mode	100%-80%	80%-60%	60%-50%	50%-40%	30%

Remote Control of INTREPID PIONEER MJ-LH Series Solar Street Light with Motion Sensor

remote control of MJ-LH

Model	MJ-LH8100	MJ-LH8200	MJ-LH8300	Arm with bolts
Gift box (mm)	54527871	65530871	76530871	–
QTY/CTN.	5	5	5	25
Carton G.W (KG)	12	14.8	17.75	23
Carton size(mm)	560380300	670380330	780380330	550420500

Details of INTREPID PIONEER Solar Street Light with Motion Sensor

Radar

Motion Sensor

Equipped with built-in microwave radar motion sensor, the solar street light can detect any movement within 8meters at 120° detection angle.

100% full brightness when motion is detected, 30% brightness after 30s without motion is detected.

Integrated

ALL IN ONE Design

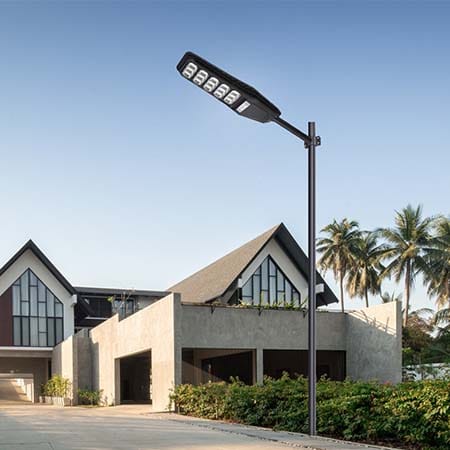

All-in-one integrated design, no wiring, easy installtion within few minutes. 0 electricity bill.

Providing wall and pole mounting installation options. The solar street light can be installed on walls, trees, light poles etc where you want to install.

UV Resistant

ABS Lamp Body

ABS plastic is chemically resistant, heat resistant and has a certain surface hardness, it is highly elastic and tough.

Patented design.

2835SMD

Super Bright LED

Equipped with new upgrade SMD2835 LED chips, brightness is 20% increased.

120 degree widely luminous angle, illumination area is 40% increased.

32650

LiFePO4 Lithium Battery

Large-capacity 32650 lithium iron phosphate battery, circulation time is up to 2000 times, more safety and stability.

Working temperature is from -20 degrees to +60 degrees.

IP65

Outdoor Waterproof

MJ-LH Series solar street light is passed IP65 waterproof testing by authoritative laboratory.

The solar street light can be used in any outdoor environment, rainstorm weather.

PWM

P-MOS Fast Charging

This solar street light adopts the latest quick charging scheme, charging efficiency can be up to 50% higher than similar products.

For example, similar products use 6V/12W solar panel and the peakcharging current is 2A; Our product uses 4V/12W solar panel and the peak charging current is 3A. By comparison, the charging efficiency of our products has been improved by 50%.
