Interstellar Warrior All In Two Split Solar Street Light MJ-XJ

Model: MJ-XJ801 / MJ-XJ802 / MJ-XJ803 / MJ-XJ804

  • Power: 100W/200W/300W/400W
  • POLY Solar panel
  • SMD2835 LED
  • LiFePO4 lithium battery
  • Die-casting aluminum lamp body
  • IP67 Waterproof
  • Remote contol
  • CE,ROHS

Interstellar Warrior All In Two Split Solar Street Light

Interstellar Warrior MJ-XJ Series All In Two Split Solar Street Light is one of the most popular solar street lights, it is Split All In Two structure design. Pole-mounted and wall-mounted are two fixed mounting options available. The model is warmly welcomed and sold very popular due to its high cost-effectiveness.

The solar panel installation angle is adjustable to maximize absorbs solar energy. Die-cast aluminum lamp body,  LiFePO4 Lithium battery, and high bright LED beads with a large luminous angle. IP67 waterproof rating. The MJ-XJ Series All In Two Split Solar Street Lights are suitable for outdoor streets, parks, gardens, factories, villages, farms, etc.

solar street lighting

Video of MJ-XJ All In Two Solar Street Light

Technical Data

 Model MJ-XJ801 MJ-XJ802 MJ-XJ803 MJ-XJ804
Rated power 100W 200W 300W 400W
LED bead 192pcs,2835 192pcs,2835 300pcs,2835 300pcs,2835
Lumens 2000LM 3000LM 4000LM 5000LM
Solar panel 25W/5V 35W/5V 40W/5V 50W/5V
LiFePO4 battery (DC3.2V) 20AH 30AH 45AH 60AH
Mounting height 3-4M 3-5M 4-6M 5-7M
Color temp. 6000K
Material Die-casting Aluminum
Waterproof IP67
Arm Included
Charge time 8H
Work Mode Light on at dusk, Light off at dawn Auto. Constant lighting.

Lighting Mode

Intelligent automatic power reduction

Time 0-0.5H 0.5-2H 2-4H 5H To Dawn
Constant lighting brightness 100-80% 80-60% 60-50% 50-40% 40-30%

Remote Control

Multiple work modes

REMOTE CONTROLLER

 Model MJ-XJ801 MJ-XJ802 MJ-XJ803 MJ-XJ804
Gift box (mm) 580*405*130 630*405*130 700*425*130 715*510*140
QTY/CTN. 4PCS 4PCS 3PCS 2PCS
Carton G.W 24.8KG 27.4KG 23.6KG 18.6KG
Carton size (mm) 600*420*550 650*420*550 715*410*440 730*300*520



Details of MJ-XJ Series All In Two Solar Street Light

LED Chip
2835SMD

High Brightness with Optical Lens

High brightness 2835SMD LED bead with PC optical lens. low light decay, low heat, constant curren stability, prolong service life of the lamp.

The optical lens provide greater luminance uniformity. 150*70 Degree luminous Angle.

The lens can effectively gather the light to improve the brightness and reduce the light loss. The light efficiency is 20% increased than traditional reflective cup.

POLY

Solar Panel

Outstanding performance in Low-Light, High transparent, Unique & Advanced technology giving the panel good performance.

Ability to withstand High Wind-Pressure and Snow-Load, Advanced module sealing technology to eliminate leakage and frame deformation.

Aluminium frame with tempered glass and waterproof junction box.

Military quality system ensure 25 years power output warranty.

POLY SOLAR PANEL

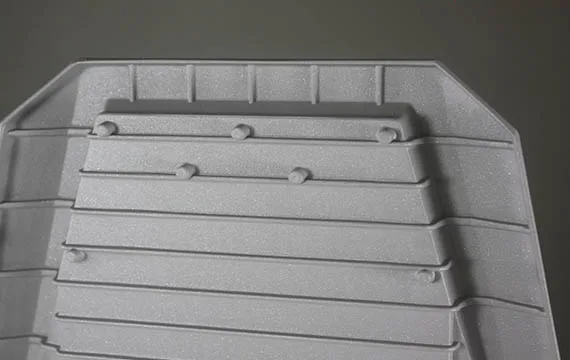

aluminum housing
Die-casting Aluminum

Strong Lamp Body

Patented appearance design.

The lamp body is made of sturdy Die-casting aluminum, Sturdy and durable.

The Die-cast aluminium material is rust-free and can be used in coastal areas. Good heat dissipation can help LEDs work better.

LiFePO4

Lithium Battery

Built-in high-capacity lithium iron phosphate battery, operating temperature -20 degrees to +60 degrees.

The circulation time is 2000 times, BSM over-charge and over-discharge protection.

Excellent safety and stability.

LiFePO4 battery

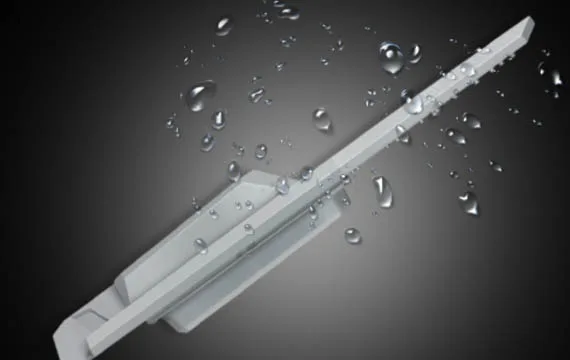

IP67 water proof
IP67

Outdoor Waterproof

Good sealing design, waterproof with built-in waterproof rubber ring.

All MJ-XJ Series All In Two solar street light was passed IP67 waterproof  testing by authoritative laboratory.

The solar street light can be used in any outdoor environment, rainstorm weather.

PWM

P-MOS Fast Charging

The solar controller has unique charge and discharge management system, PWM control P-MOS charging, Charge & discharge are more efficiency.

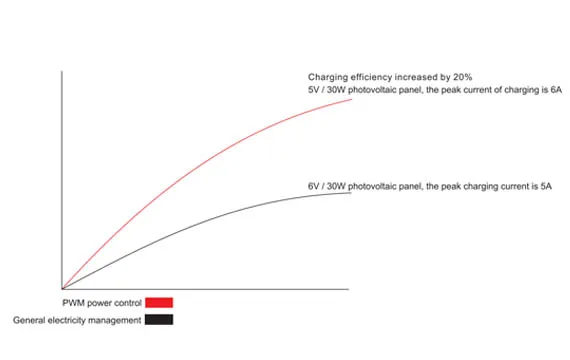

For example: 6V /30W solar panel is commonly used in the market, and the peak charging current is 5A, this model use 5V/30w,The charging peak current is 6A, the charging efficiency is increased by 20%.

power curve

Features of MJ-XJ Series All In Two Solar Street Light

solar experience
POLY Solar Panel
led bead
High brightness bead
Optical Lens
Optical Lens
battery
LiFePO4 Lithium Battery
aluminum
Die-casting Aluminum
remote control
Remote Control
waterproof
IP67 Waterproof
Rainy days backup
Rainy days backup
dusk to dawn
Dusk to Dawn Auto

Photos of MJ-XJ Series All In Two Solar Street Light

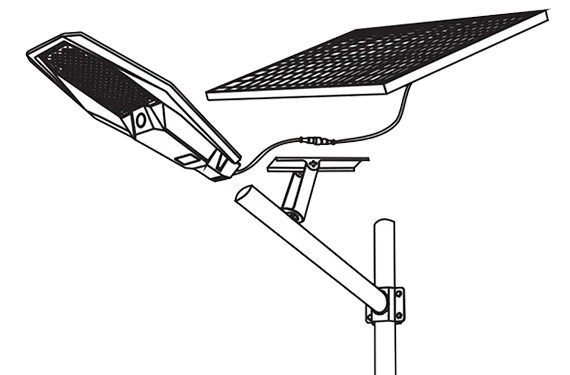

How To Assemble All In Two Split Solar Street Light?

MJ-XJ801,MJ-XJ802,MJ-XJ803,MJ-XJ804
Interstellar Warrior
ALL IN TWO SOLAR LED STREET LIGHT

Intelligent Power Management System

Meet the customer’s “365 days, daily brightness” demand.

ALL IN TWO SOLAR STREET LIGHT

Customized Your Logo on Product & Packages

logo OEM
OEM LOGO
Color box
Inner Color Box
carton package
Outer Carton
What is working time?

The lighting time is 12hours per day, dusk to dawn auto working, 2-3 rainy days backup.

What is charging time?

6-8 Hours.

What is recommend diameter of pole?

The recommend diameter of pole is 76mm, the diameter range is 60~100mm.

What is the MJ-XJ solar street light lifetime?

The battery lifetime is 4-5 years. After expiration, replacing the battery can continue to use.

What is colour temperaturer for choice?

There are 3500K and 6000K CCT. for choice.

Does the lens turn yellow?

The lens will not turn yellow and brittle within 5 years, it is made of PC (Japanese emperor) material, working temperaturer is -40℃ ~ +125℃.

What is the MOQ for customize color box?

500PCS.

What is your production time?

Sample order is 3-5days, 20′ Container is 15days, 40′ Container is 20days.

Do you supply poles?

Yes, pole is optional.

What is warranty time?

The warranty is 2 Years.
