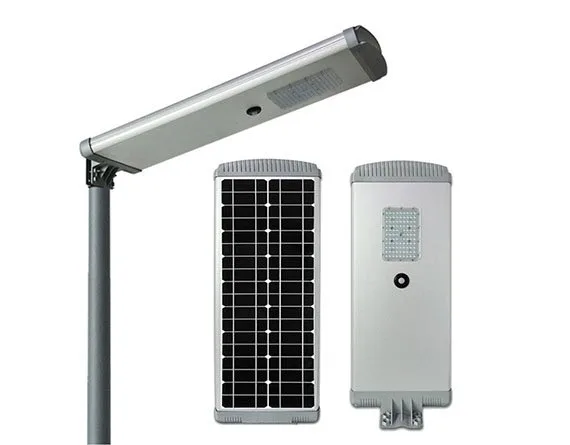

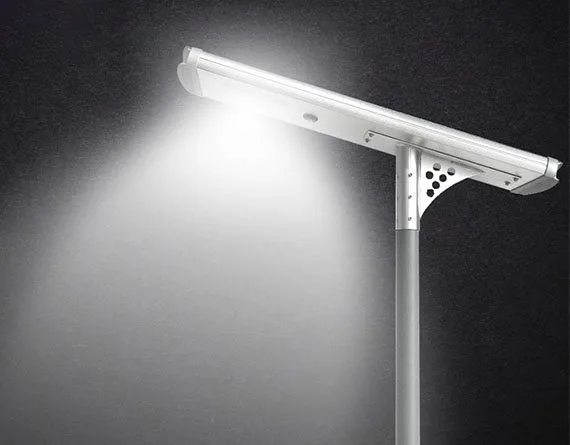

NK Series All In One Solar Street Light

Model: NK-30W/40W/60W/80W/100W/120W/150W

Power: 30W/40W/60W/80W/100W/120W/150W
Monocrystalline silicon solar panel
CREE LED Source with lens
LiFePO4 Lithium battery
Die-casting aluminum body
IP67 Waterproofing
CE,ROHS Certified

Summary
Technical Data
Details
Feature

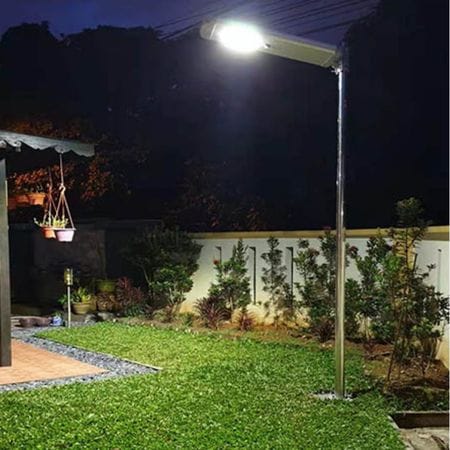

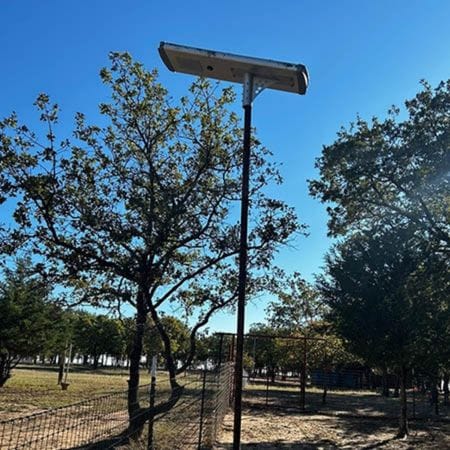

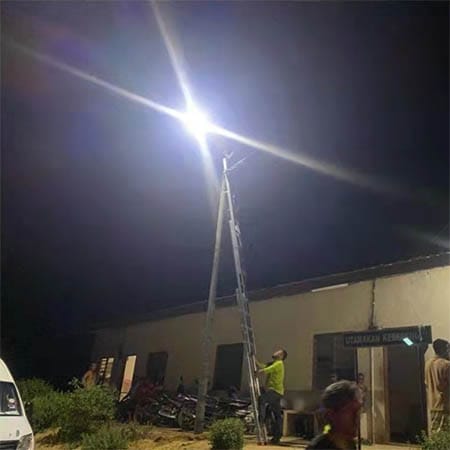

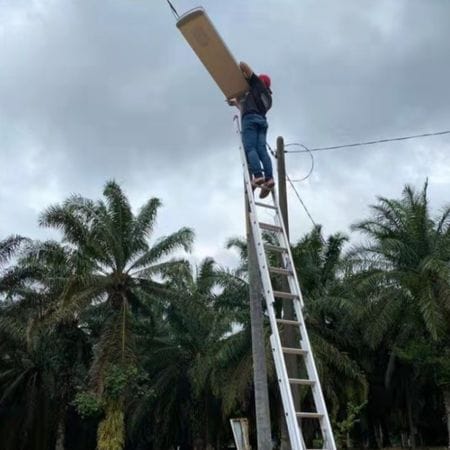

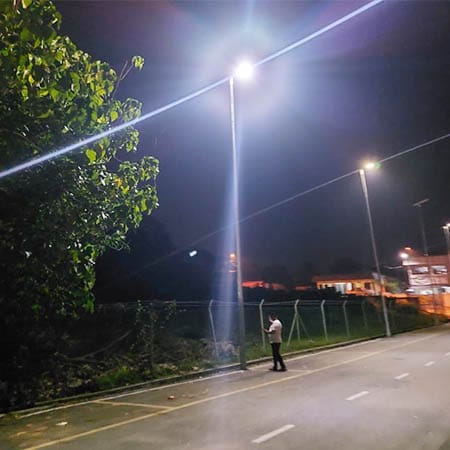

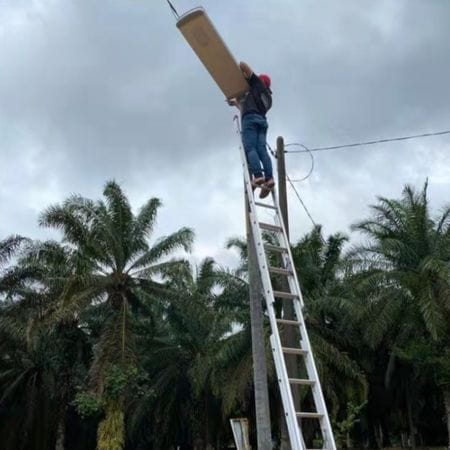

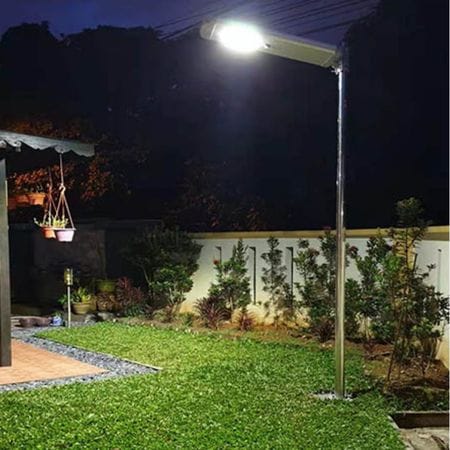

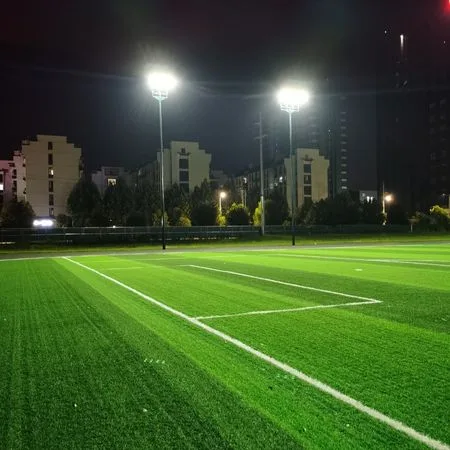

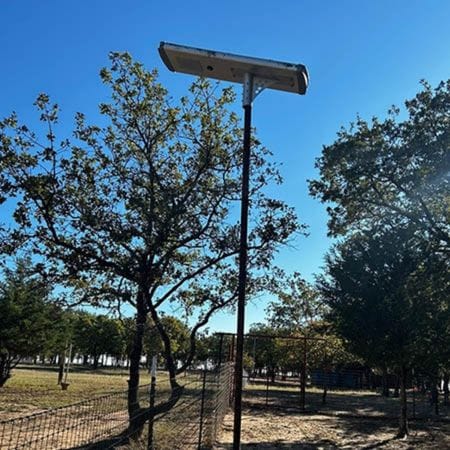

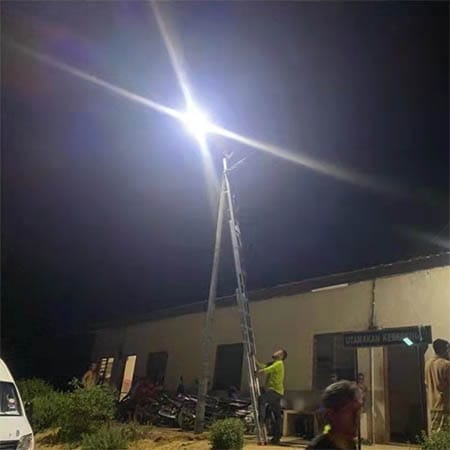

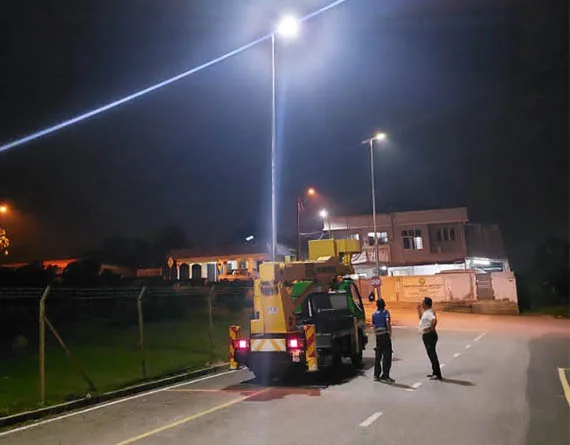

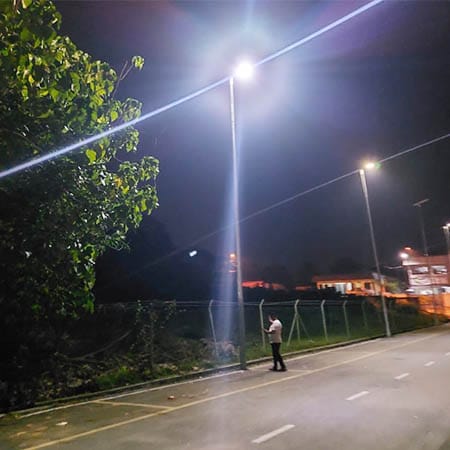

Case Photos
Dimension
Top

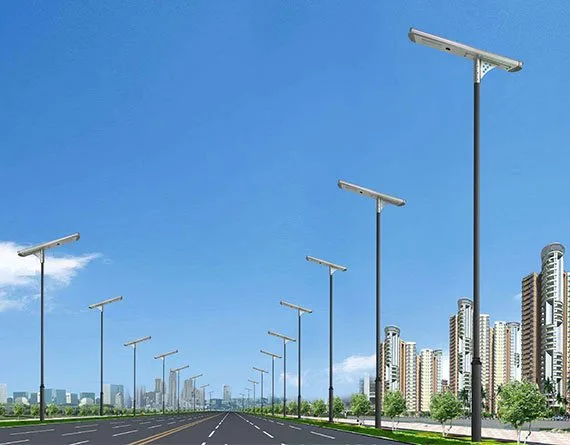

Newskypower All In One Solar Street Light

NK Series All In One Solar Street Lights are mainly designed for commercial or government project purposes, the power includes 30W, 40w,60w,80w,100w,120w, and 150w.

As outdoor lighting, the NK All In One Solar Street Light is powered by solar energy and designed to offer high brightness lighting by utilizing Grade A LED beads, an optical LED lens, a high-efficiency MONO solar panel, high-capacity LiFePO4 lithium battery, MPPT charging controller.

The All In One Solar Street Light is a revolutionary solar product by utilizing Photovoltaic. It absorbs solar energy in daylight and converts it to electricity that is stored in a Lithium battery, the intelligent MPPT controller masters the operation of the whole system and the protection of the lithium battery. When the illuminance of the ground is reduced to 15 lux at night time, or the solar panel voltage drop to 5V below, the All In One Solar Street Light will work automatically, optimizing the brightness effectively according to the real-time environment.

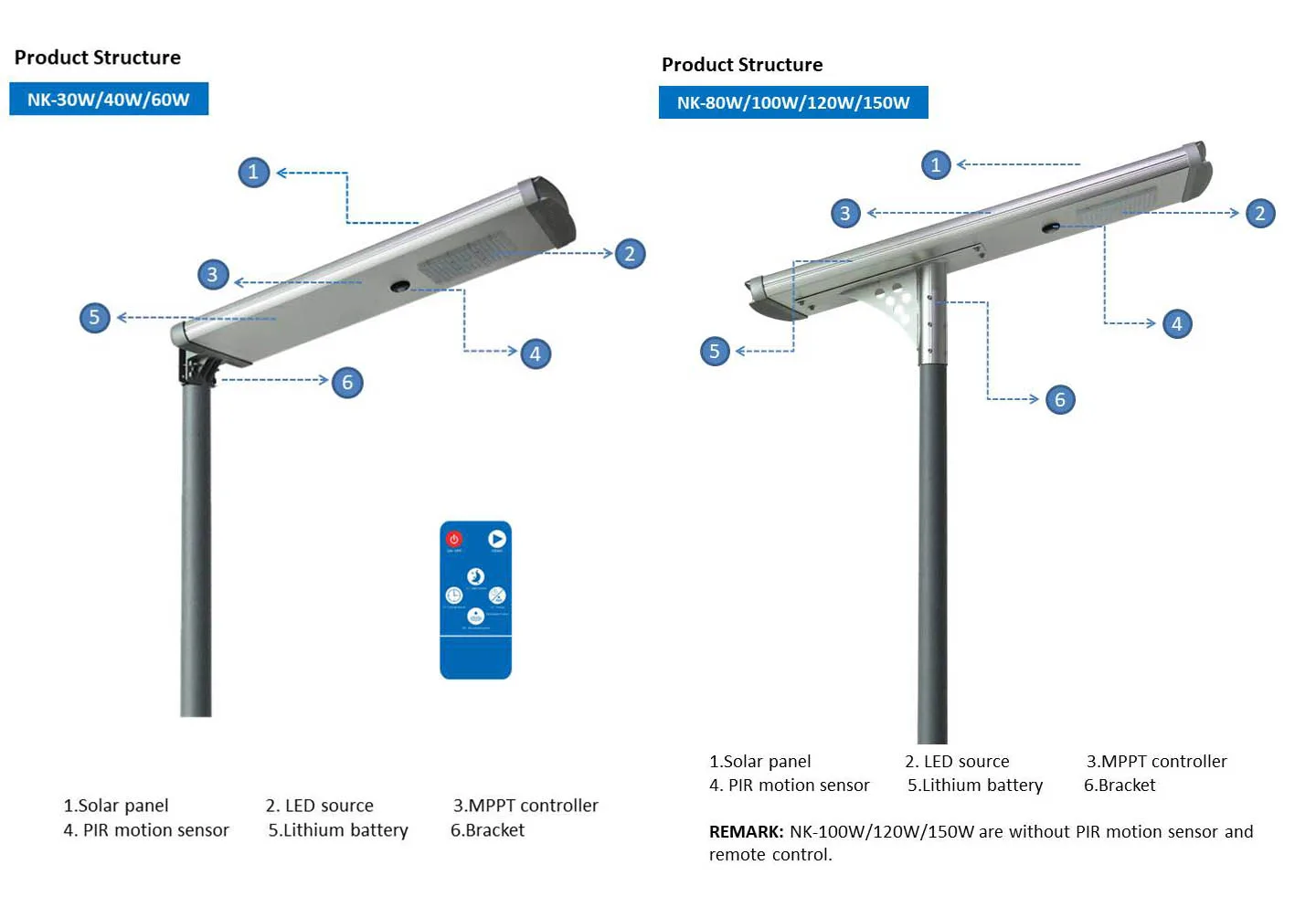

structurer

Technical Data

Specificaton
Packing

Model	NK-30W	NK-40W	NK-60W
Rated power	30W	40W	60W
Lumens	4200LM	5600LM	8400LM
Solar panel	50W/18V	60W/18V	80W/18V
LiFePO4 battery	24AH/12.8V	30AH/12.8V	36AH/12.8V
Install height	5-6M	6-7M	7-8M
Spacing	18-20M	20-25M	25-30M
Pole diameter	60-80mm（optimal：76mm）
Color temp.	3000/4000/6500K
Sensing distance	12M
Work temp.	-20℃ ~ +60℃ (When the temperature is below -10℃, derating use )
Water proof	IP67
Charge time	6-8H
Lighting time	Light on at dusk, Light off at dawn atuo.12 hours lighting time per day, 3 rainy days backup.365days can be light.

Model	NK-80W	NK-100W	NK-120W	NK-150W
Ratedpower	80W	100W	120W	150W
Lumens	11200LM	12000LM	14000LM	16000LM
Solar panel	100W/18V	110W/18V	120W/18V	150W/18V
LiFePO4battery	48AH/12.8V	54AH/12.8V	60AH/12.8V	72AH/12.8V
Install height	8-10M	10-11M	10-11M	10-12M
Spacing	30-35M	35-40M	35-40M	35-40M
Polediameter	60-80mm （optimal：76mm）
Colortemp.	6500K
Worktemp.	-20℃ ~ +60℃ (When the temperature is below -10℃, deratinguse )
Waterproof	IP67
CRI	>85
Chargetime	6-8H
Lighting time	Lighton at dusk, Light off at dawn auto.12 hours lighting time per day, 3 rainy days backup.365 days can be light.

Model	NK-30W	NK-40W	NK-60W
N.G	13KG	15KG	19KG
G.W	14KG	16KG	20KG
Productsize(mm)	840380220	980380220	1230380220
Cartonsize (mm)	930450250	1070450250	1320450250

Model	NK-80W	NK-100W	NK-120W	NK-150W
N.G	22KG	24KG	27KG	29KG
G.W	23KG	25KG	30KG	32.5KG
Productsize(mm)	143538075	160538075	180538075	207538075
Cartonsize (mm)	1525460150,670420160	1660460150,670420160	1900460165670420160	2150460165670420160

Details of NK All In One Solar Street Light

Heavy Duty

Die-casting Aluminum Housing

The lamp body is made of Die-casting aluminum, Sturdy and durable, rust-free, suitable for marine environment.

Aluminium is very good for heat dissipation of the LED light source, extends the life of the LED beads.

IP67 waterproofing, no-worry of stormy weather, can be used in any outdoor environment.

High Efficiency

MONO Solar panel

Module efficiency up to 21% achieved through advanced cell technology and manufacturing capabilities.

Excellent performance uder low light conditions. Reliable quality leads to a better sustainability even in harsh enviroment like desert, farm and coastline.

Material and workmanship, 5 years warranty for 90% output power and 25 years for 80% output power.

Optical Lens

High Brightness LED beads

A-CLASS LED bead, the advanced lighting technology brings a higher luminous intensity, lower thermal resistance and a greater luminaire stability.

Luminous Efficiency>160Lm/W. Working time is 100,000Hours. Color temperature can be customized from 3000K to 6500K.

The optical lens provide greater luminance uniformity. 140 Degree luminous Angle.

32650

LiFePO4 Lithium Battery

High-capacity 32650 LifePO4 Lithium battery, the cycles number is over 2000 times, Life time is 5-8Years. More storage and power capacity versus conventional Lead Acid batteries.

Working temperaturer is -20degree to +60degree.

Battery BMS (Battery Manage System) provide over-charge protection and over-discharge protection. Excellent safety and stability.

Max Power Tracking

MPPT Charging Controller

Innovative MPPT solar charging technology, tracking efficiency >99%, high charge conversion efficiency up to 96%, discharge conversion efficiency up to 95.5%.

Automatic power balance, support 365 days light on.

PIR or Microwave radar motion sensor for optional, detects movement within several meters automatically, regulates the output of the LED lamp from a ‘dim mode’ to ‘full-brightness.

5 Stages
