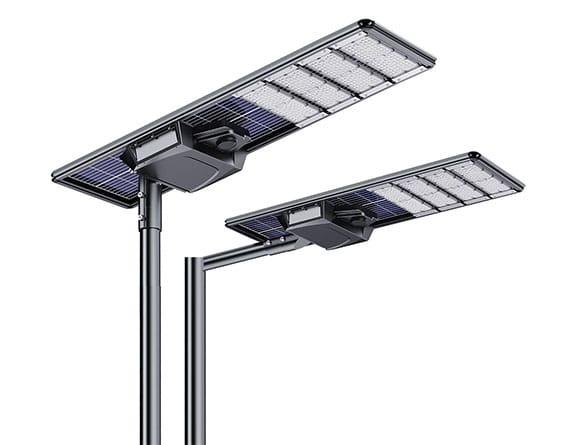

NT Series Double Sided LED Solar Street Light

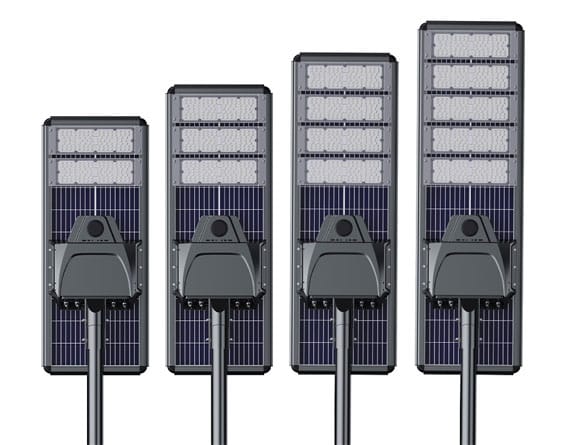

Model: NT-30W/40W/60W/80W/100W/120W/150W

Power: 30W/40W/60W/80W/100W/120W/150W
Monocrystalline silicon solar panel
CREE LED Source with lens
LiFePO4 Lithium battery
Die-casting aluminum body
IP65 Waterproofing
CE, ROHS Certified

Summary
Technical Data
Details
Feature

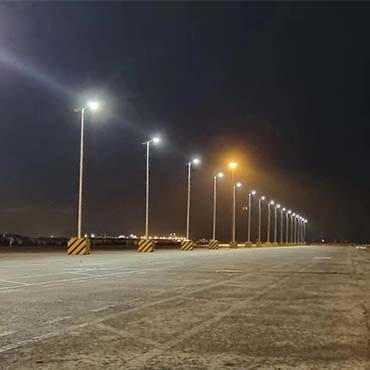

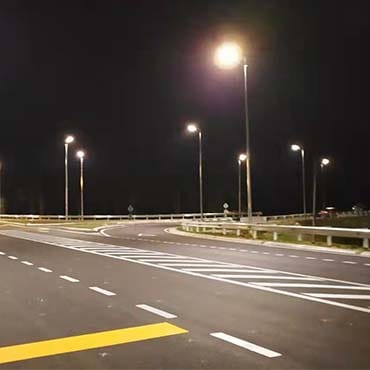

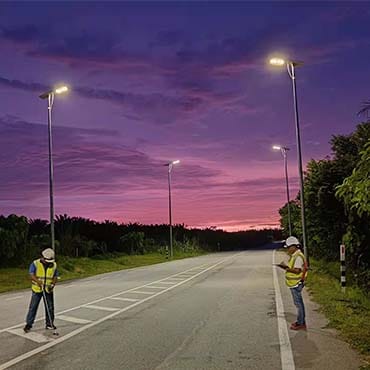

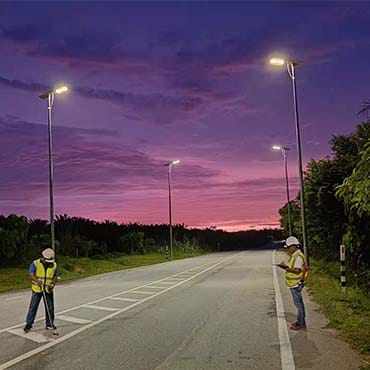

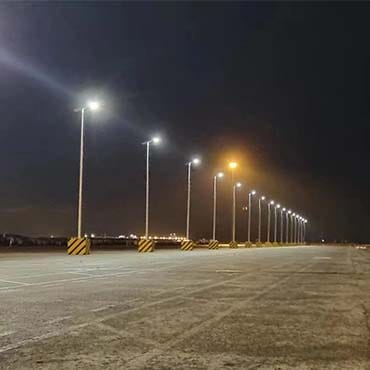

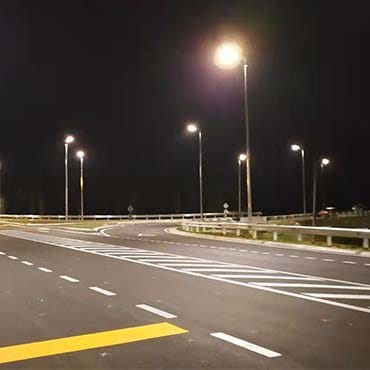

Case Photos

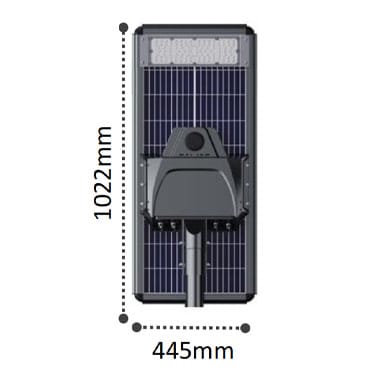

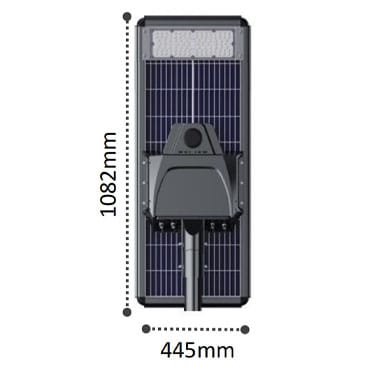

Dimension
Top

Newskypower All In One Solar Street Light

NEWSKYPOWER introduces a premium line of NT Series integrated solar street lights designed to deliver exceptional performance, durability, and energy efficiency for residential, commercial, and industrial applications. Available in 30W, 40W, 60W, 80W, 100W, 120W, and 150W configurations, our solar lights are engineered to meet diverse lighting needs while ensuring sustainability and cost-effectiveness.

Equipped with advanced 23% efficiency mono-crystalline silicon solar cells, the solar panel maximizes energy harvesting even in low-light conditions, ensuring reliable performance year-round—dual-sided charging for faster charging and more charge. Innovative MPPT technology, tracking efficiency >99%. Featuring a durable LiFePO4 lithium battery, the system offers superior cycle life (2000+ cycles), high thermal stability, and deep discharge recovery.

Upgrade to smarter, greener lighting with NEWSKYPOWER’s NT Series All-in-One Solar Street Light.

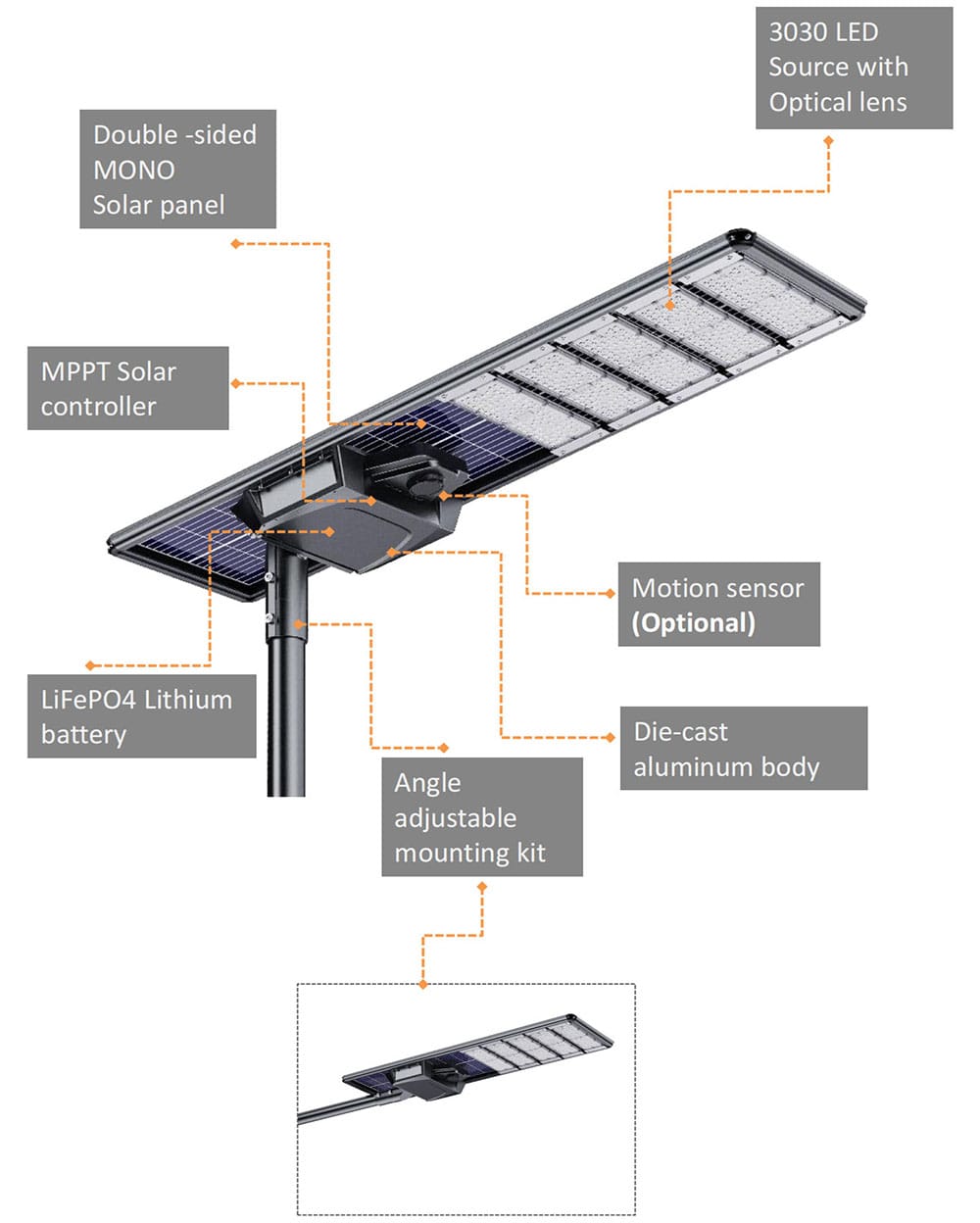

NT Sereis Solar Street Lights

Technical Data

Specificaton
Packing

Model	NT-30W	NT-40W	NT-60W	NT-80W	NT-100W	NT-120W	NT-150W
Rated power	30W	40W	60W	80W	100W	120W	150W
Lumens	4800LM	6400LM	9600LM	12800LM	16000LM	19200LM	24000LM
Solar panel	70W/18V	80W/18V	90W/18V	100W/18V	120W/18V	130W/18V	140W/18V
LiFePO4 battery	24AH/12.8V (307.2WH)	30AH/12.8V (384WH)	36AH/12.8V (460.8WH)	42AH/12.8V (537.6WH)	48AH/12.8V (614.4WH)	30AH/25.6V (768WH)	36AH/25.6V (912.6WH)
Install height	5-6M	6-7M	7-8M	8-9M	8-10M	9-11M	10-12M
Spacing	15-18M	18-21M	21-24M	24-27M	24-30M	27-33M	30-36M
LEDs	SMD3030,180LM/M Efficiency
Material	Die-casting aluminum
CRI	>80
Solar controller	MPPT,5 Stages programming
Pole diameter	76mm
Color temp.	6500K
Work temp.	-20℃ ~ +60℃ (When the temperature is below -10℃, derating use )
Water proof	IP65
Charge time	6-8H
Lighting time	Light on at dusk, Light off at dawn auto. 12 hours lighting time per day, 5-7 rainy days backup. 365 days can be light.
Pole (Optional)	Q235 carbon steel with Hot-dip galvanized

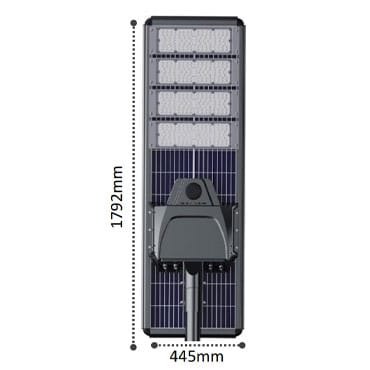

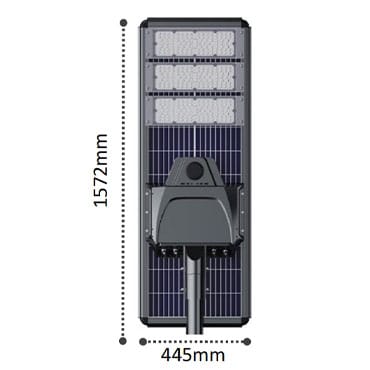

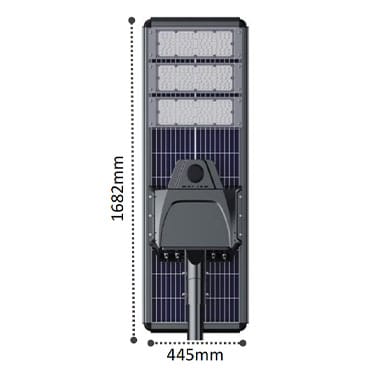

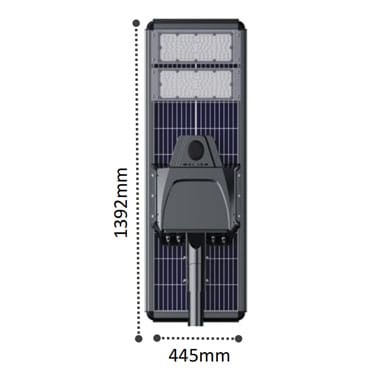

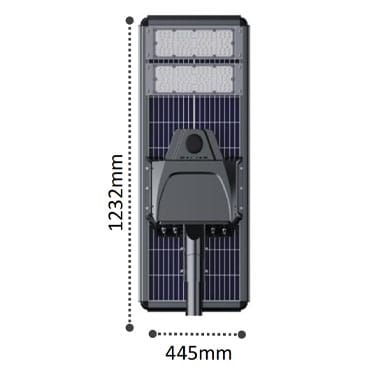

Model	NT-30W	NT-40W	NT-60W	NT-80W	NT-100W	NT-120W	NT-150W
Product Size (MM)	102244586	108244586	123244586	139244586	157244586	168244586	179244586

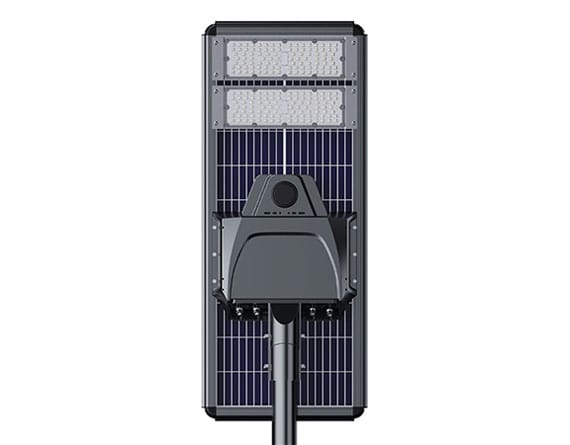

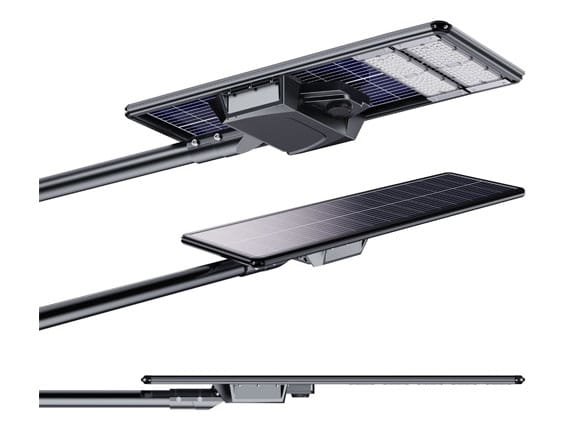

Details of NT All In One Solar Street Light

Double-sided charing

Solar Panel

182*182mm Monocrystalline silicon solar cells with 23% conversion efficiency.

Dual-sided charging for faster charging and more charge.

3.2mm High transmittance tempered glass; Sealing material: EVA.

Designed for 25 years of service life.

SMD3030

LED Head

Lower thermal resistance and greater luminaire stability.

Luminous Efficiency>180Lm/W. Working time > 10,0000 hours.

Color temperature is from 3000K to 6500K optional.

Optical lens equipped, 150 Degrees wide lighting angle.

MPPT

Controller

Innovative MPPT technology, tracking efficiency >99%. Full digital technology, high charge conversion efficiency of up to 96%, discharge conversion efficiency of up to 95.5%.

Automatic power balance 365 mode, 365 days can be lit. Human infrared induction. 5 stages time and dimming can be adjusted, dimming 0~100%.

Can read parameters and running status: If battery voltage is low, it can be set to dimming automatically. Day/Night threshold can adjust automatically. Low temperature charging protection. When BMS power off because of LVD, it can activate the system automatically.

LiFePO4 Lithium

Battery

High-quality A-grade LiFePO4 battery cells. The number of cycles is more than 2000 times. Lifespan is 5-8 years. The working temperature is -20 degrees Celsius to +60 degrees Celsius.

Rigorous testing, welding, assembly, packing, and aging process. Epoxy resin board heat insulation, waterproof.

High-quality Battery Management System compatible with the battery pack’s voltage and capacity. Overcharge, over-discharge, short circuit protection. Temperature monitoring, and balancing of the cells.
