SCL-007plus Solar Street Light
Model: SCL-007plus (3Heads & 6Heads)
- Power: 30W & 60W
- MONO Solar panel
- 180pcs/360pcs SMD2835 LED with Lens
- LiFePO4 Lithium battery
- Die-casting aluminum body
- IP65 Waterproof
- CE,ROHS
SCL-007plus Solar Street Light
Technical Data of SCL-007plus Solar Street Light
- Specificaton
| Model | SCL-007plus-3 | SCL-007plus-6 |
| Solar panel | 33W/5V | 66W/5V |
| Rated power | 30W | 60W |
| Lumens | 3000LM | 6000LM |
| LiFePO4 battery | 45AH/3.2V | 80AH/3.2V |
| Install height | 4-5M | 5-8M |
| Spacing | 15-18M | 18-30M |
| Pole diameter | 89mm | |
| Color temp. | 3000/4000/6500K | |
| Work temp. | -20℃ ~ +60℃ (When the temperature is below -10℃, derating use ) | |
| Water proof | IP65 | |
| Charge time | 6-8H | |
| Lighting time | Light on at dusk, Light off at dawn auto. 12 hours lighting time per day, 2 rainy days backup. | |
Dimension of SCL-007plus Solar Street Light
Product Size
φ1290*H390mm
PACKING SIZE
| Model | CTNS | Ctn. G.W | Ctn. Size |
| SCL-007plus-3 | 2 | 17KG | 610*340*420mm |
| 390*390*380mm | |||
| SCL-007plus-6 | 3 | 26KG | 610*340*420mm*2 |
| 390*390*380mm |
Features of SCL-007plus Solar Street Light
MONO Solar Panel
SMD2835 LED
LiFePO4 Lithium Battery

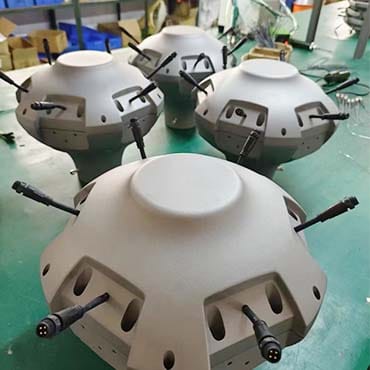

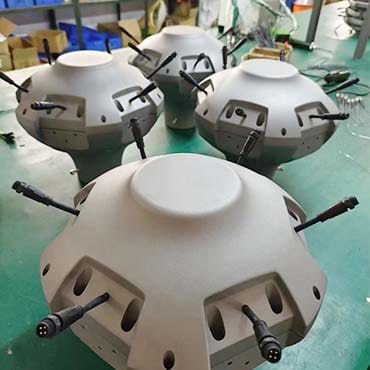

Die-casting Aluminum
IP65 Waterproof
Rainy-days backup
