WS75 Solar Motion Sensor Light
Model: WS75
- Three adjustable lamp heads with 99 SMD2835 LEDs
- 1.7W / 5.5V solar panel
- 1800mAh / 3.7V lithium battery
- 6500K cool white light; three lighting modes
- PC housing; black or white
- IP65 protection rating

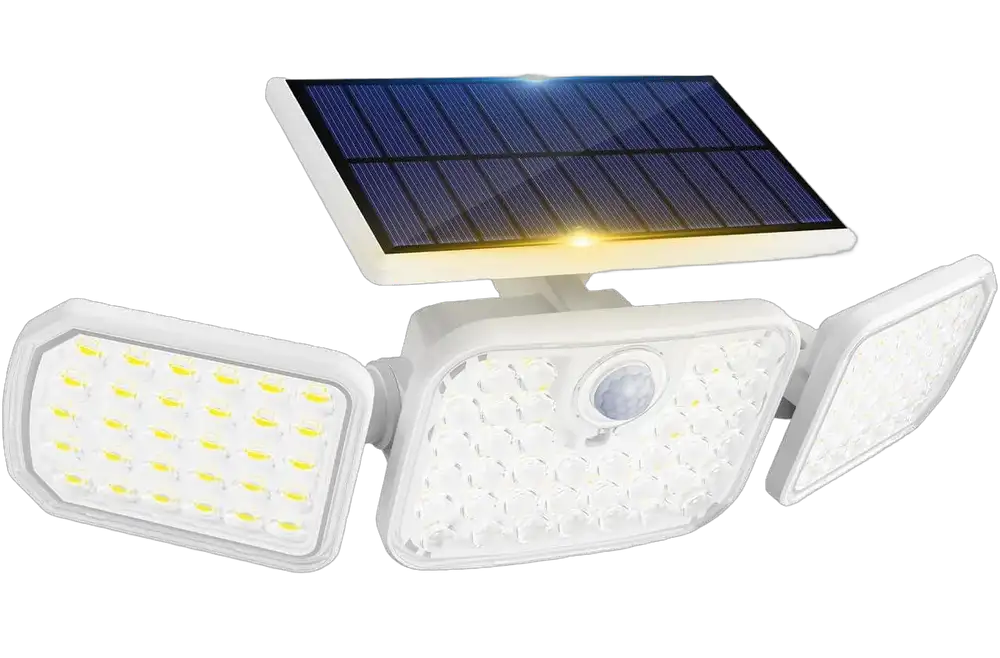

WS75 Three-Head Solar Motion Sensor Wall Light
WS75 is a three-head solar motion sensor wall light for entrances, garages and outdoor circulation areas. It combines 99 SMD2835 LEDs, a top-mounted solar panel and a built-in lithium battery in a PC housing.
Adjust the lamp heads towards the required area and choose motion-triggered lighting or constant medium light. Black and white housing options suit different exterior finishes.
Technical Data of WS75 Solar Motion Sensor Light
- Specification
| Model | WS75 |
| Solar panel | 1.7W / 5.5V |
| LEDs | 99 pcs SMD2835 |
| Lithium battery | 1800mAh / 3.7V |
| Lighting modes | Motion sensor / constant |
| Detection duration | 20 seconds |
| Lamp size | L299.3 × W118.8 × H101 mm |
| Color temperature | 6500K |
| Housing colors | Black or white |
| Housing material | PC |
| Protection rating | IP65 |
| Charging time | 8 hours (reference) |
| Lighting time | 6–12 hours (reference) |
Charging and lighting times vary with sunlight, battery charge, selected mode and motion frequency. They do not guarantee continuous full-brightness operation throughout the night. Detection duration is the specification’s time value, not a detection distance or angle.
WS75 Product Details
Dimensions & Packaging

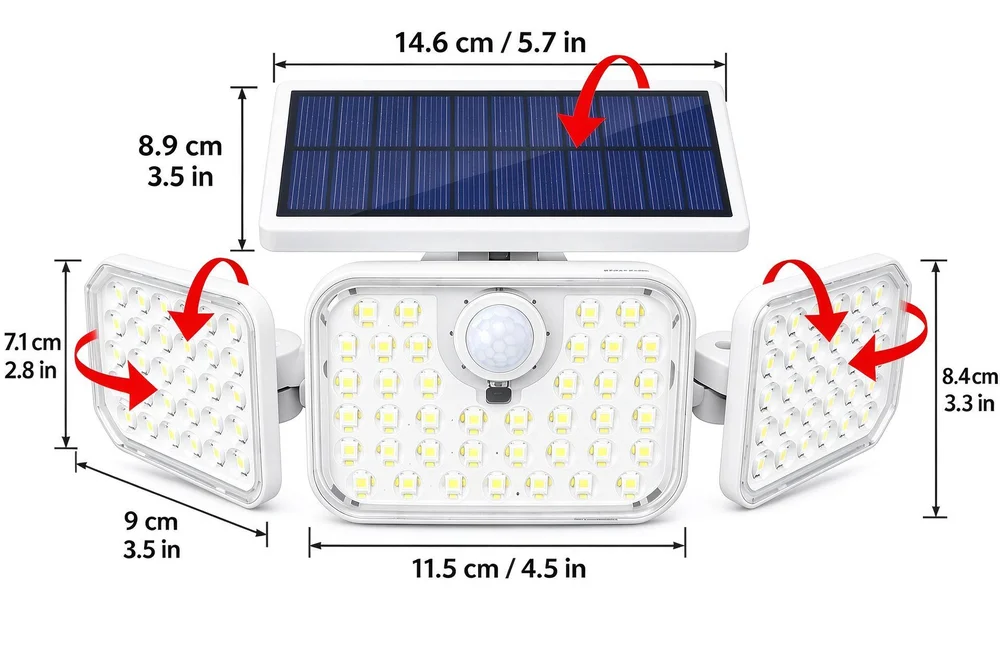

Overall lamp size: L299.3 × W118.8 × H101 mm. The drawing shows additional component dimensions.
Packaging options
1 light / box: 213 × 115 × 105 mm; 0.54 kg.
Master carton: 24 lights; 480 × 445 × 335 mm; 13.8 kg.
2 lights / box: 213 × 210 × 105 mm; 1.07 kg.
Master carton: 32 lights; 445 × 440 × 440 mm; 18.05 kg.
Carton quantities count individual lights. Confirm final packing details if accessories or packaging are changed.
Three Adjustable Lamp Heads
Three lamp heads can be adjusted to direct light towards the entrance or surrounding area. Keep the front PIR sensor unobstructed and test the light at the intended mounting location.

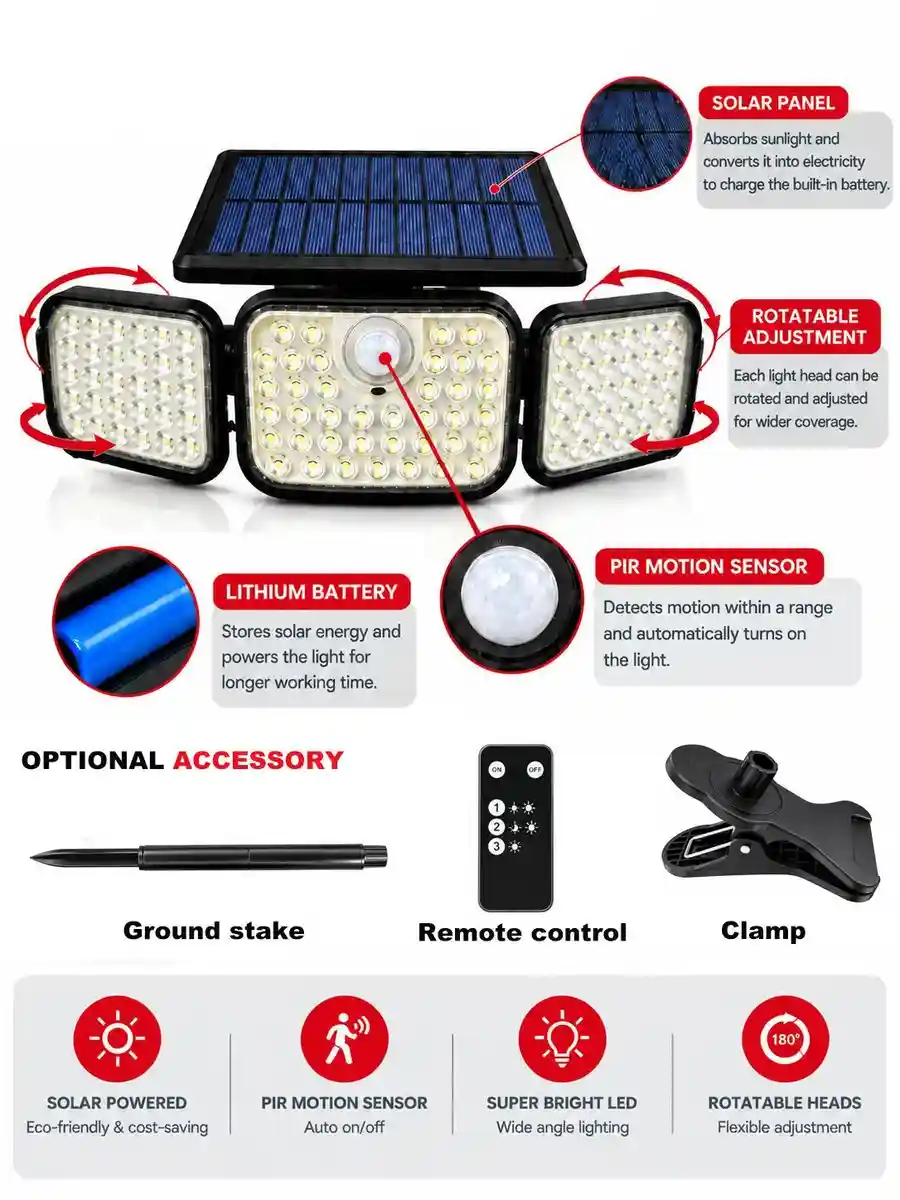

Solar Panel & Lithium Battery
The top-mounted 1.7W / 5.5V solar panel charges the built-in 1800mAh / 3.7V lithium battery.
Place the panel where it receives direct sunlight. Avoid deep shade from eaves, trees or nearby structures. Charging time is listed as 8 hours, with 6–12 hours of lighting as reference values; actual performance depends on conditions and mode.

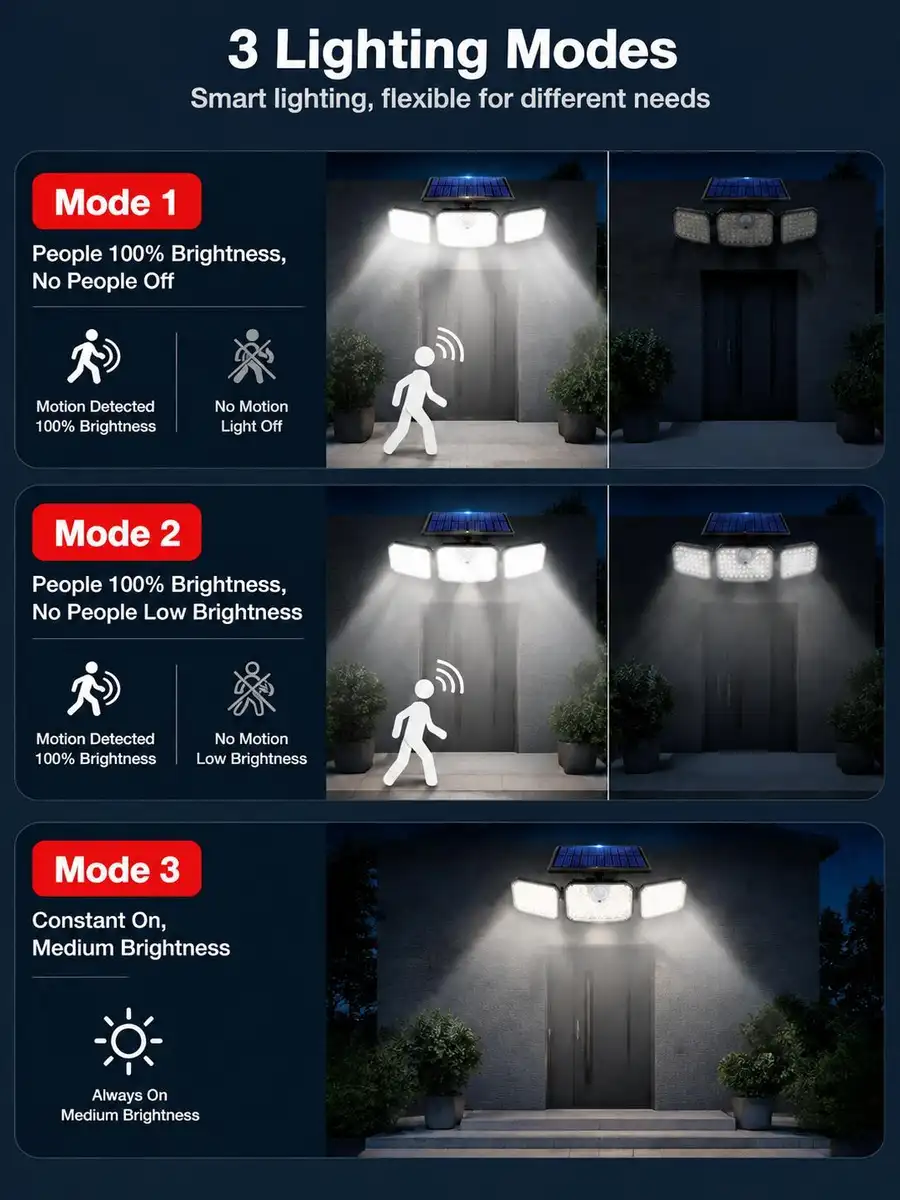

Three Lighting Modes
- Motion → bright / idle → off: 100% brightness when motion is detected; off without motion.
- Motion → bright / idle → low: 100% brightness when motion is detected; low brightness without motion.
- Constant medium light: continuous medium-brightness lighting in constant mode.
99 LEDs · Black or White PC Housing
WS75 uses 99 SMD2835 LEDs with a 6500K color temperature. The PC housing is available in black or white, with an IP65 protection rating in the supplied specification.
Optional Accessories
Ground stake, remote control and clamp are optional accessories. Specify the required items when requesting a quotation; they should not be assumed to be included in the standard pack.
Outdoor Applications
Consider WS75 for a garage entrance, backyard wall, garden boundary or shed exterior with suitable sunlight. Select the mounting method and optional accessories for the actual location.
These application illustrations are supplied in the product specification; they are not customer project photographs.
Features of WS75 Solar Motion Sensor Light
Related Products (17)
WS75 has three modes: motion-triggered full brightness with off when idle; motion-triggered full brightness with low light when idle; and constant medium light.
Yes. The lamp heads can be adjusted to direct the light towards the required area. Their position should be set to suit the mounting location.
The specification lists a 1.7W / 5.5V solar panel and a built-in 1800mAh / 3.7V lithium battery.
The specification lists 8 hours for charging and 6–12 hours of lighting. Actual times depend on sunlight, battery charge, operating mode and motion frequency. These figures do not guarantee full-brightness light throughout the night.
WS75 has a PC housing and an IP65 rating in the supplied specification. Follow the installation guidance and keep the solar panel exposed to sunlight.
The remote control, ground stake and clamp are optional. Confirm the required items and pack contents in your quotation.
Black and white housings are listed. Packaging information is provided for one-light and two-light inner boxes.
Send the WS75 model name, housing color, quantity, one-light or two-light pack preference, optional accessories and destination. Include your intended application and any branding or packaging requirements.
