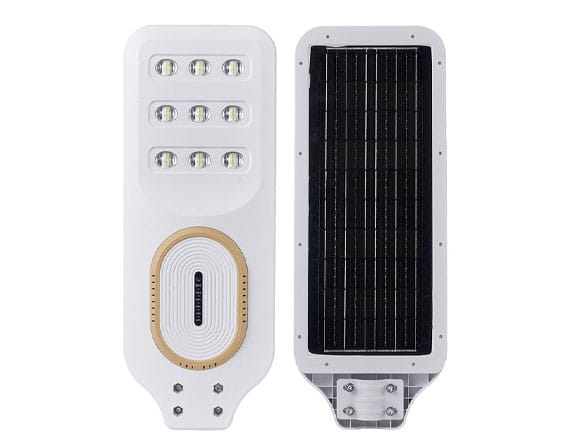

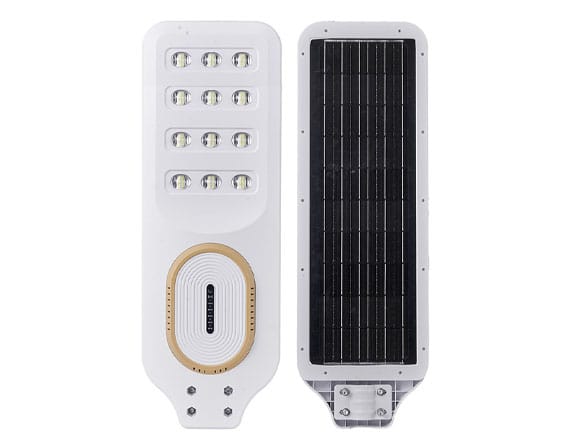

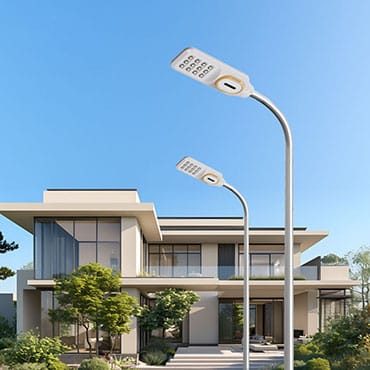

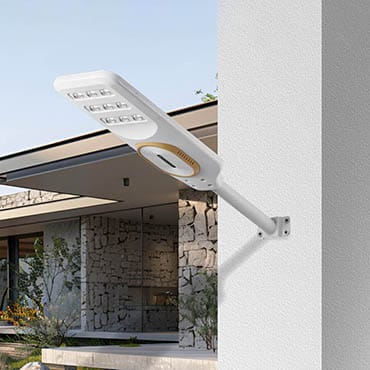

ZL16 Series All In One Solar Street Light
Model: ZL16-300/400
- Power: 300W/400WW
- Mono solar panel
- LED light board + optical lens
- LiFePO4 lithium battery
- ABS engineering plastic
- IP65 Waterproofing
- CE, ROHS Certified
Newskypower ZL16 Series Integrated Solar Street Light
NEWSKYPOWER’s new design ZL-16 series integrated solar street light is crafted from durable, high-quality ABS material. This all-weather unit combines cutting-edge technology with user-centric design. The Controller of the 16 series adopts an extremely simplified design, integrated controller, microwave induction, simple maintenance, and higher stability.
The integrated design eliminates complex wiring while maintaining a sleek profile. Ideal for pathways, campuses, parks, and residential areas, the ZL-16 series offers 30% greater energy efficiency than conventional models. With its maintenance-free operation and eco-friendly power system, this solution represents the future of cost-effective, sustainable urban lighting.
Technical Data
- Specificaton

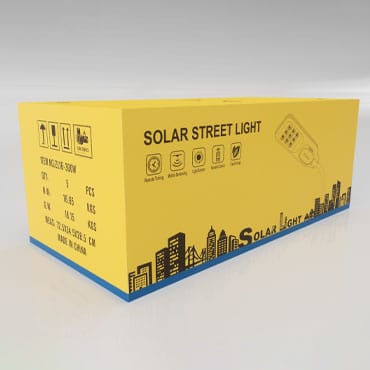

- Packing
| Model | LZ16-300 | LZ16-400 |
| Rated power | 300W | 400W |
| Lumens | 2384LM | 2713LM |
| LED chip | 54pcs,SMD5054 | 72pcs,SMD5054 |
| LiFePO4 battery | 3.2V/24Ah | 3.2V/30Ah |
| Solar panel | 5V/22W,MONO | 5V/28W,MONO |
| Lighting Area | 150m² | 180m² |
| Install height | 4-6M | 5-7M |
| Work mode | Radar sensor or Constant | |
| Lighting angel | 150 Degree | |
| Material | ABS+PC | |
| CCT. | 3000K-7500K | |
| Charge time | 4-5H | |
| Model | ROYAL-300 | ROYAL-500 |
| Qty/Carton(pcs) | 5 | 5 |
| Carton G.W.(kgs) | 18.15 | 22.5 |
| Product Size(mm) | 707*266*60 | 830*266*60 |
| Carton Size(mm) | 725*345*285 | 850*345*285 |

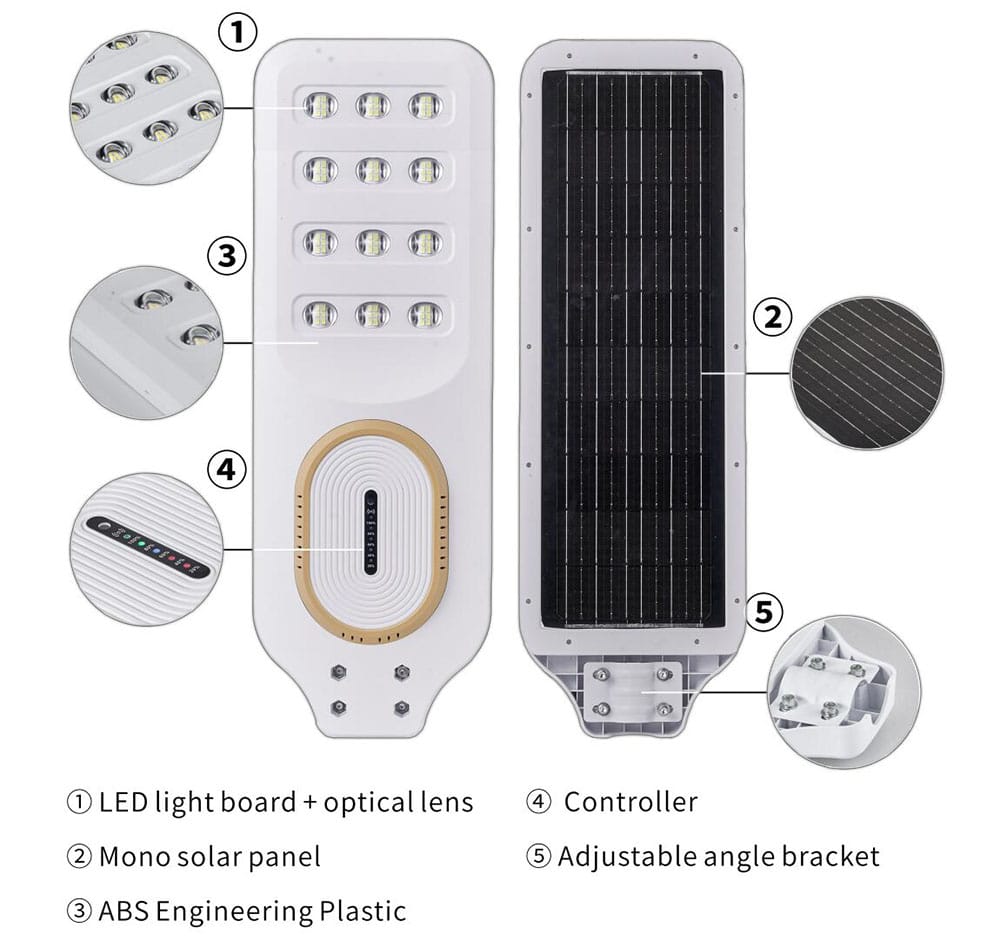

Details of ZL-16 Series All In One Solar Street Light
Solar Panel
Using monocrystalline silicon solar panels increases conversion efficiency, extends life, and lowers the attenuation rate.

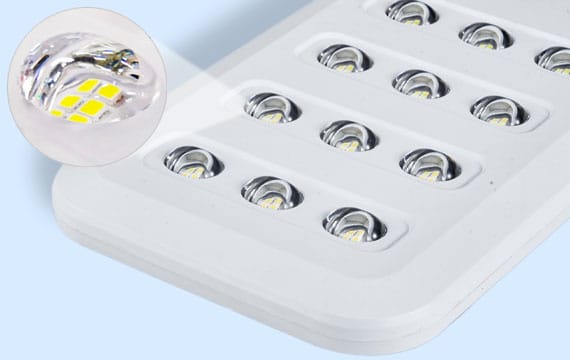

LED Chip
ZL-16 Series solar street light uses 5054 high light efficiency lamp beads, this LED source adopts a separate waterproof design to further prevent rainwater from seeping in and extend the service life of the lamp.
Multiple Lighting Modes
Intelligent light control optimization system, automatic lighting at night to make full use of solar energy. Efficient charging, environmentally friendly living.

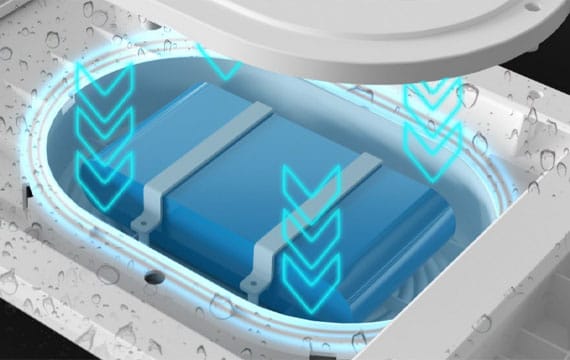

LiFePO4 Lithium Battery
The battery part is equipped with an independent battery protection compartment to prevent rainwater from seeping into the interior and damaging the battery.
Adding independent battery buckles to reinforce the battery installation and prevent the battery from falling off.
Features of ZL-16 Series All In One Solar Street Light

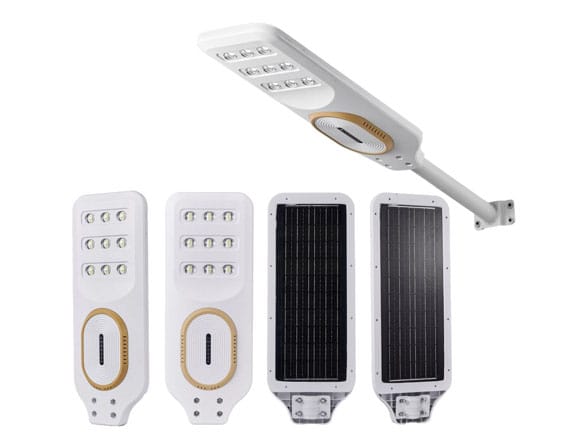

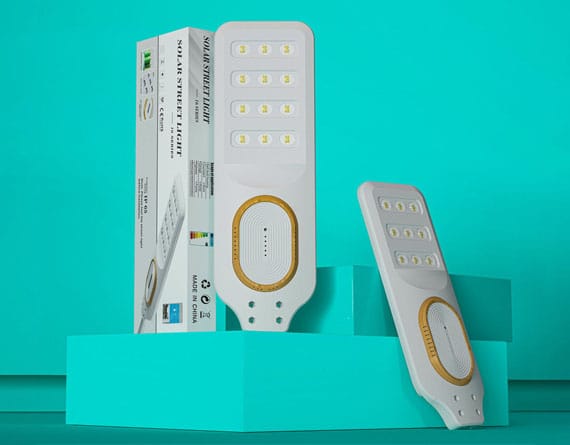

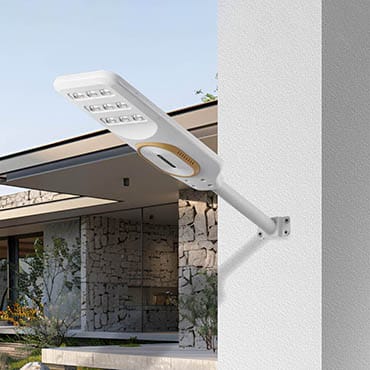

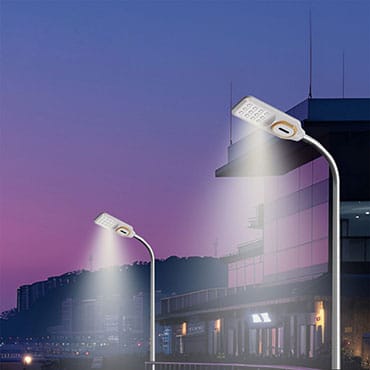

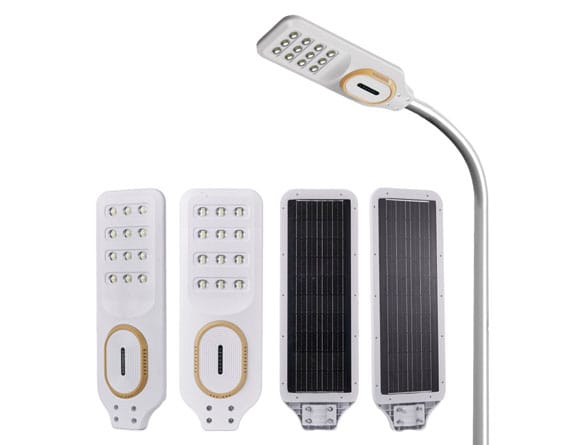

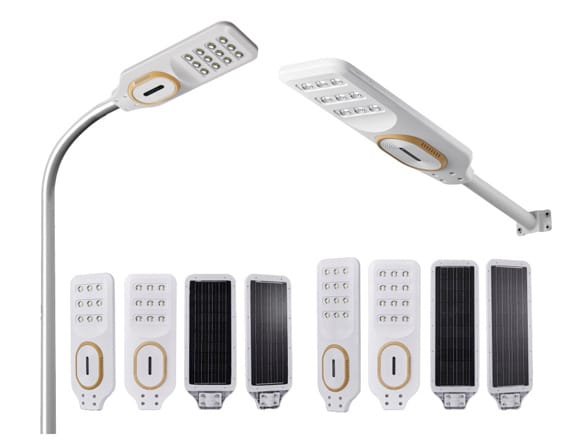

Photos of ZL-16 Series All In One Solar Street Light

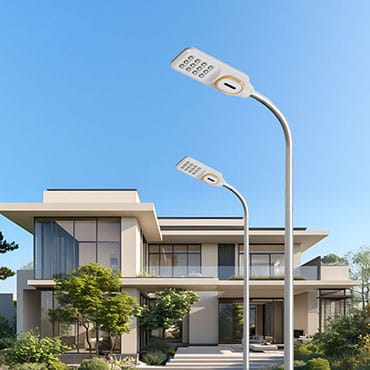

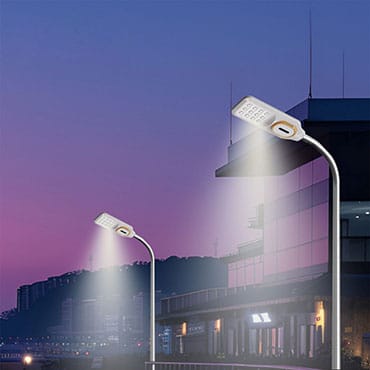

- Customer Feedback

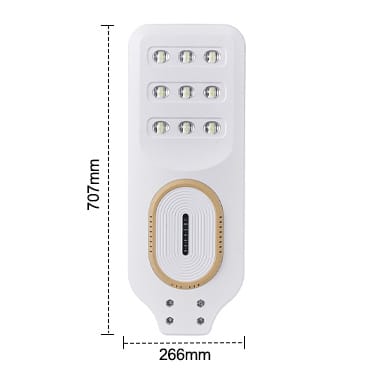

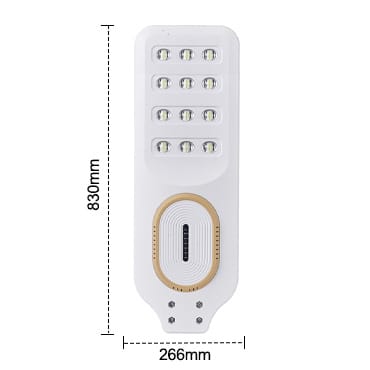

Dimension of ZL-16 Series All In One Solar Street Light (2)
OEM on Product & Package
Related Products (18)
The lighting time is 12hours per day, dusk to dawn auto working, 3-5 rainy days backup, support 365days lighting on.
6-8 Hours.
NK30W-NK60W: 60-100mm, NK80W-NK150W: 70-80mm (76mm is optimal).
The battery lifetime is 5-8 years. After expiration, replacing the battery can continue to use.
There are 3000K,4000K, 6500K CCT. for choice.
100PCS.
20′ Container is 15-20days, 40′ Container is 20-25days.
Yes, we can supply pole, pole is optional.
The warranty is 3 Years.
