SID Series Solar Tube Light
Model: SID-60/100/200/300
- Power: 60W/100W/200W/300W
- POLY Solar panel
- SMD3030 LED beads
- LiFePO4 lithium battery
- PC+PVC Lamp body
- IP67 Waterproof
- Remote contol
- CE,ROHS
SID Series Solar Tube Light
Technical Data
- Specificaton
- Packing
| Model | SID-60 | SID-100 | SID-200 | SID-300 |
| Rated power | 60W | 100W | 200W | 300W |
| LED bead（3030） | 60pcs | 90pcs | 123pcs | 156pcs |
| Lamp body size | φ40*300mm | φ40*380mm | φ40*430mm | φ40*480mm |
| Lumens | 600LM | 800LM | 1500LM | 2000LM |
| Solar panel | 6W/5V | 8W/5V | 15W/5V | 20W/5V |
| LiFePO4 battery | 4AH/3.2V | 6AH/3.2V | 12AH/3.2V | 18AH/3.2V |
| Lighting area | 60m2 | 80m2 | 120m2 | 200m2 |
| Cable length | 30cm | 5Meters | ||
| Lighting time | 10-12hours | |||
| Color temp. | 6500K | |||
| Lamp body material | PC,PVC | |||
| Water proof | IP67 | |||
| CRI | >80 | |||
| Charge time | 6-8H | |||
| Lighting mode | Light on at dusk, Light off at dawn Auto. Brightness adjustable, Timer off. | |||
| Model | SID-60 | SID-100 | SID-200 | SID-300 |
| QTY/Carton | 10 | 10 | 10 | 10 |
| Carton G.W | 9.8KG | 13.5KG | 18KG | 25KG |
| Carton Size | 470*260*315mm | 470*310*395mm | 470*380*485mm | 470*440*585mm |

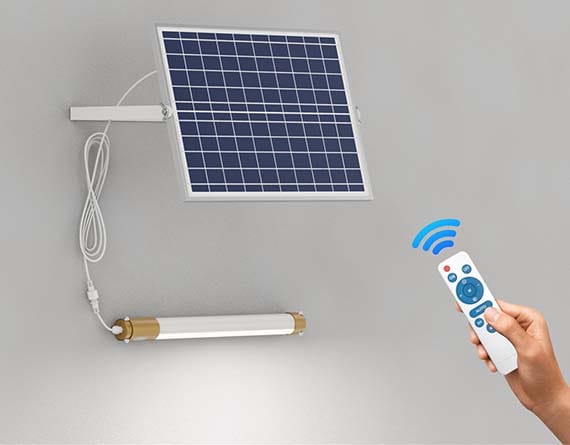

Remote Control
Functional
Power ON/OFF
Brightness Increase/Decrease
Full/half Brightness
3/5/8 Hours Timer OFF
Features of SID Series Solar Tube Light
POLY Solar Panel
SMD3030 LED Beads
32650 LiFePO4 Lithium Battery
Remote Control
IP67 Waterproof
Dusk to Dawn Auto

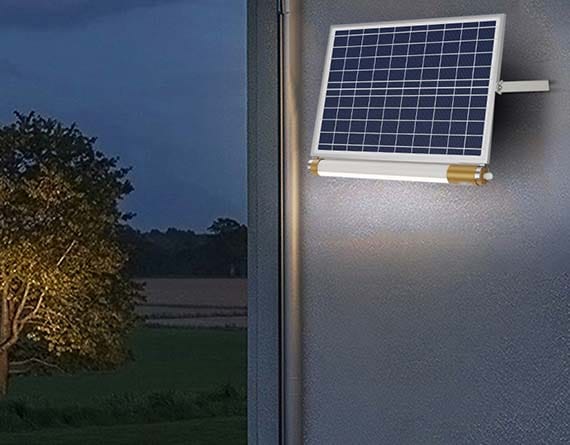

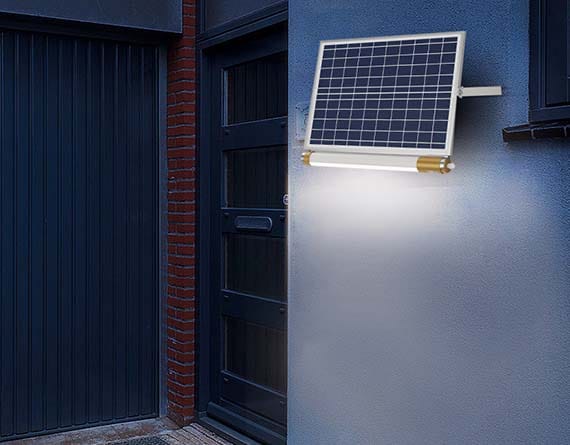

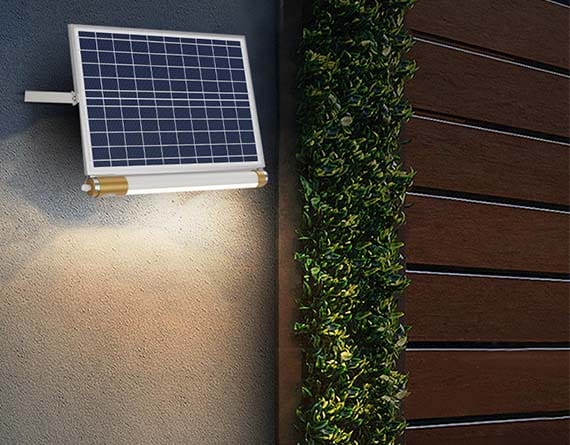

Application of SID Series Solar Tube Light
- SID-60/100/200/300
Dimension of SID Series Solar Tube Light (4)
Customized Your Logo Package
What is working time?
The lighting time is 12hours per day, dusk to dawn auto working.
What is charging time?
6-8 Hours.
What is the SID solar tube light's lifetime?
The battery lifetime is 4-5 years. After expiration, replacing the battery can continue to use.
What is the MOQ for customize color box?
500PCS.
What is your production time?
Sample order is 3-5days, 20′ Container is 15days, 40′ Container is 20days.
What is warranty time?
The warranty is 2 Years.
