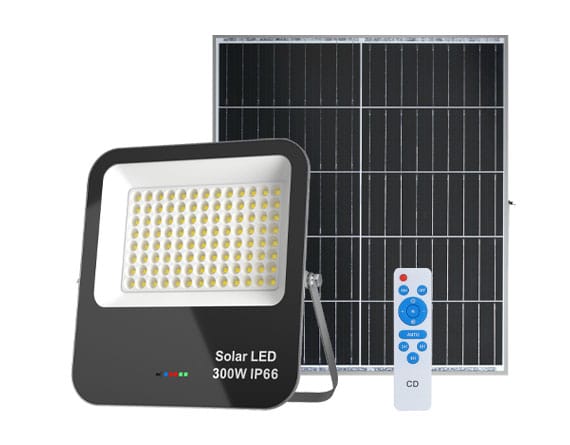

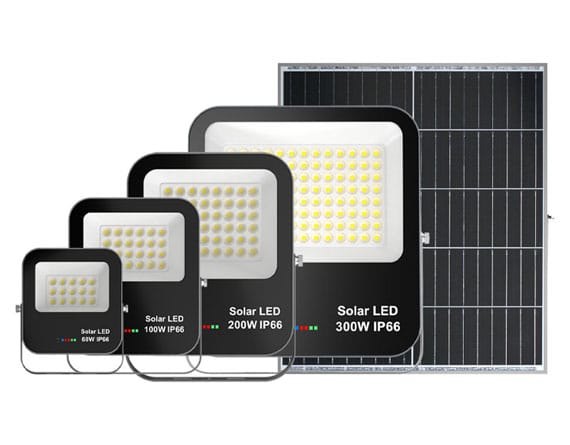

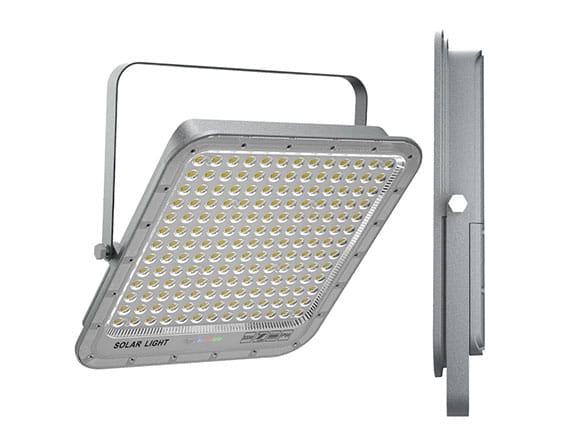

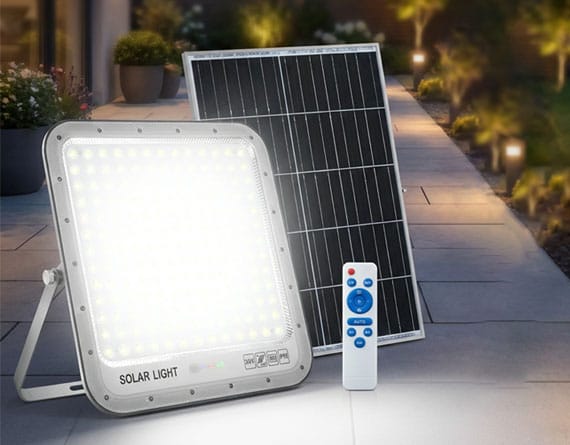

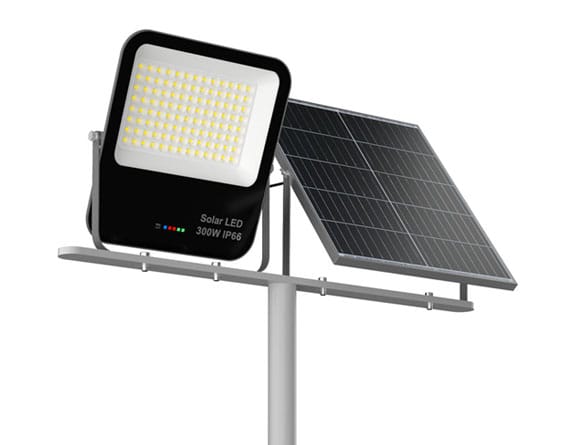

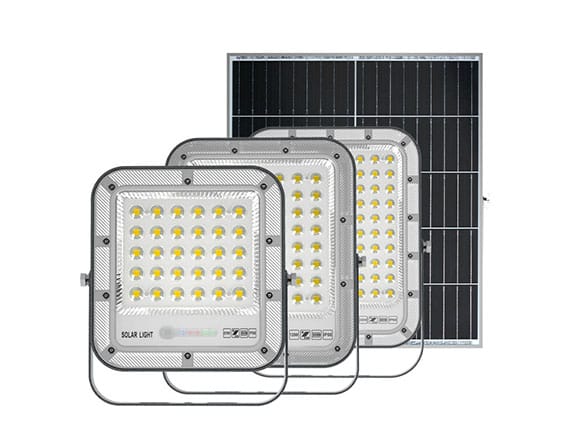

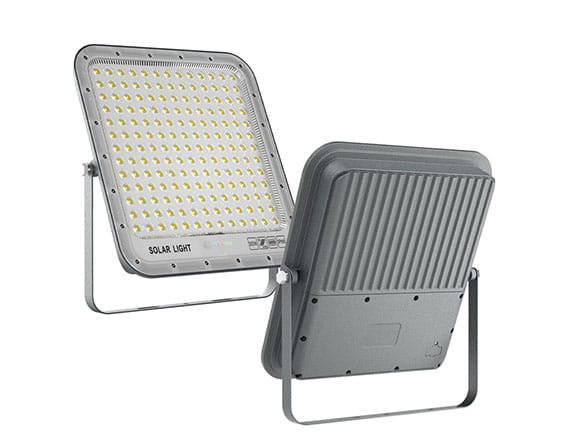

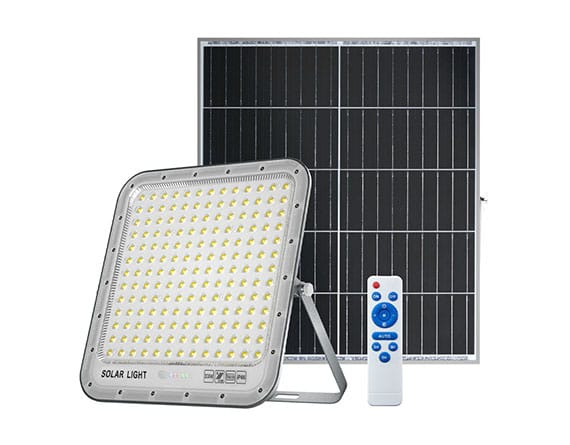

CD01 Series Solar Flood Light
Model: CD01-60W/100W/200W/300W
- Power: 60W/100W/200W/300W
- MONO Solar panel
- SMD5054 LED beads
- LiFePO4 lithium battery
- Aluminum lamp body
- IP66 Waterproof
- Remote control
- CE, ROHS
CD01 Series Solar Flood Light
Technical Data
- Specificaton

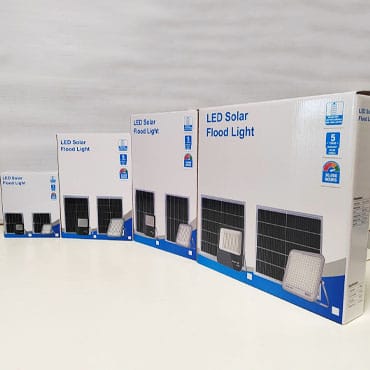

- Packing
| Model | CD01-60W | CD01-100W | CD01-200W | CD01-300W |
| Nominal Power | 60W | 100W | 200W | 300W |
| Real Power | 4-5W | 8-9W | 14-15W | 20-21W |
| Battery | 3.2V 6AH,LiFePo4 | 3.2V 10AH,LiFePo4 | 3.2V 15AH,LiFePo4 | 3.2V 30AH,LiFePo4 |
| Solar Panel | MONO,6V/6W 180*205*15mm | MONO,6V/15W 340*235*15mm | MONO,6V/20W 390*270*15mm | MONO,6V/30W 390*390*15mm |
| LED Chip | 30pcs,SMD5054 | 56pcs,SMD5054 | 90pcs,SMD5054 | 169Pcs,SMD5054 |
| Lumen | 600-700LM | 1200-1350LM | 2100-2200LM | 3000-3100LM |
| Lamp Size(cm) | 210*170*48mm | 240*200*48mm | 280*230*48mm | 348*322*48mm |
| CCT | 7500-8000k | |||
| Working Model | remote control+light sensor+time control | |||

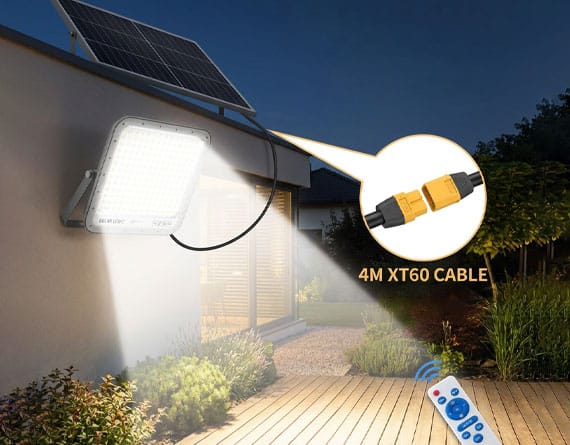

| Cable length | 4M | |||
| Housing Material | Aluminum+pc | |||
| Color | SAND GRAY | |||
| CRI | ＞70 | |||
| Charging time | 4-6H | |||
| Working time | >12H | |||
| Model | CD01-60W | CD01-100W | CD01-200W | CD01-300W |

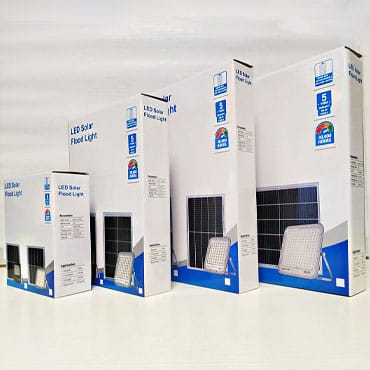

| Color Box Size | 215*80*190mm | 247*65*348mm | 277*60*405mm | 407*72*405mm |

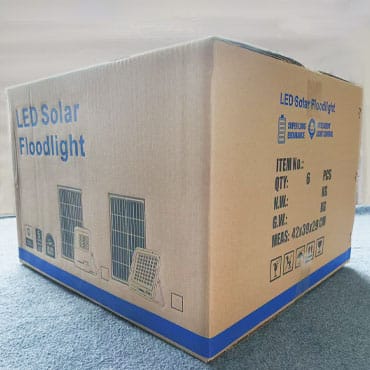

| Carton Size | 465*230*400mm | 550*360*260mm | 420*390*290mm | 410*310*420mm |
| QTY/CTN | 12 | 8 | 6 | 4 |
| N.W/G.W | 15.6KG/17.8KG | 17.6KG/18.4KG | 19.3KG/20KG | 18KG/19.5KG |
| 20HQ/40HQ | 7674PCS/18837PCS | 4313PCS/10588PCS | 3437PCS/8437PCS | 2075PCS/5094PCS |
Details of CD01 Series Solar Flood Light

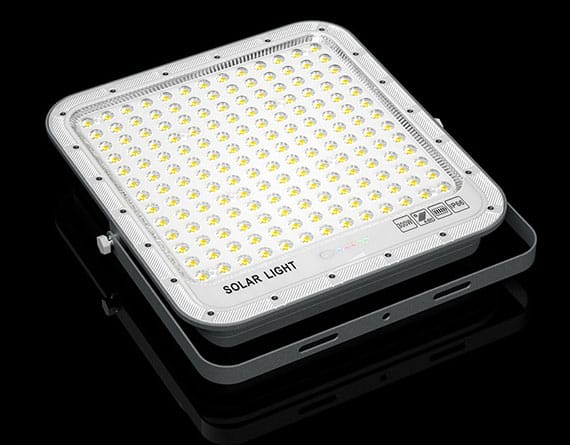

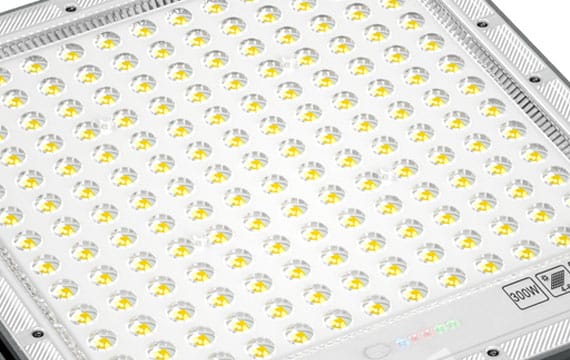

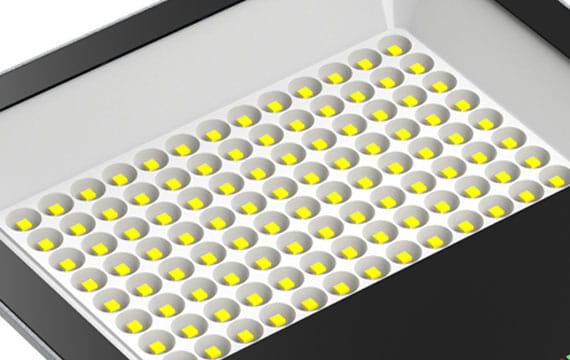

LED Chips
CD01 Solar Flood Light equipped with a big-size SMD5054 LED Chip, efficiency up to 160lm/W.
High lumen, brightness increased by 30%.

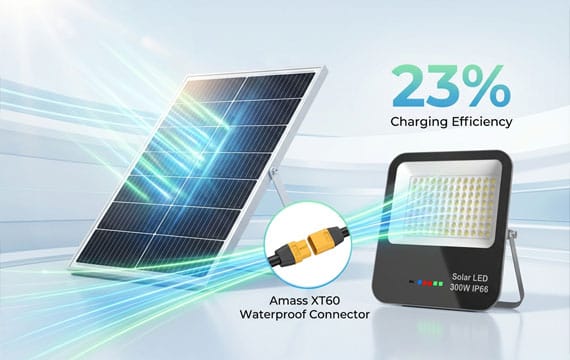

Solar Panel
CD01 Solar Flood Light uses a famous brand Mono solar panel, with higher charging conversion up to 23%, which can save 30% the volume compared to a poly solar panel.

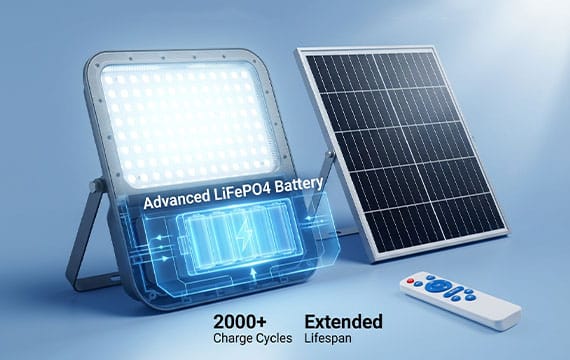

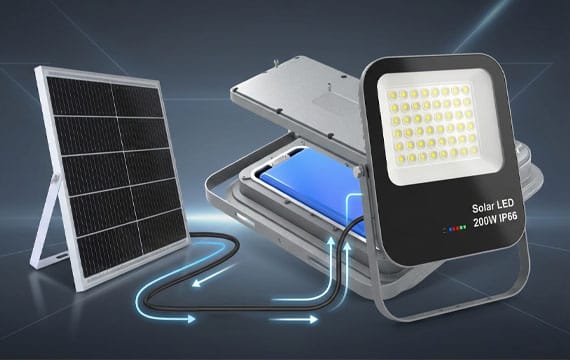

Lithium Battery
We use a completely new battery, with 2000 times cycle life, stable & safe 50,000 hours lifespan.
The battery cover is removable for easy battery replacement.

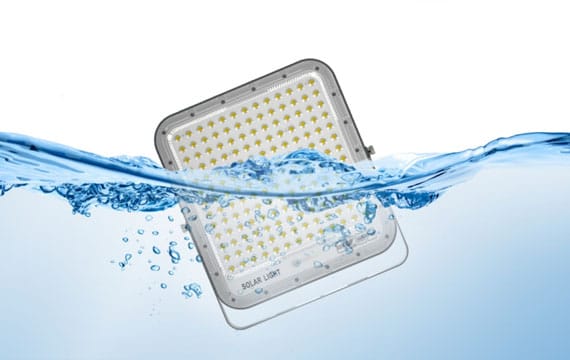

Outdoor Waterproof
All CD01 Series solar flood lights have passed IP66 waterproof testing by an authoritative laboratory. They can be used in any outdoor environment, even in rainy weather.

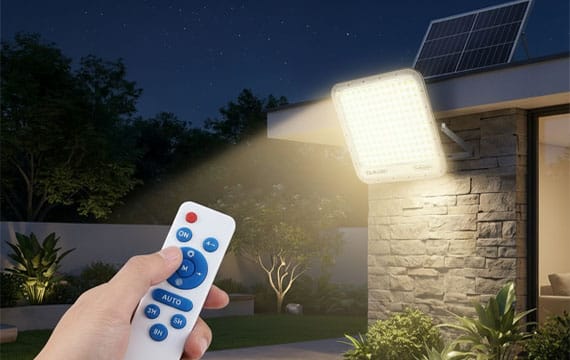

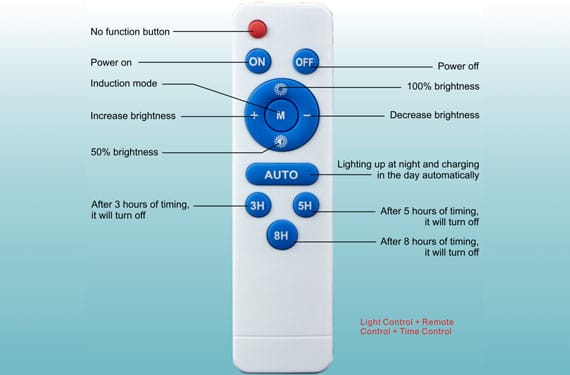

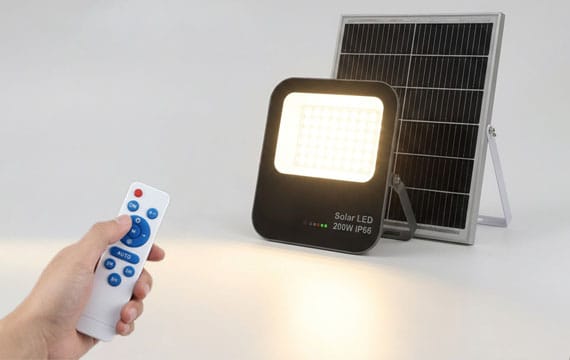

Remote Control
When using an infrared remote control, the remote control distance can reach 10M.
The intelligent controller, which can choose the working time 3/5/8H, or auto.
Features of CD01 Series Solar Flood Light

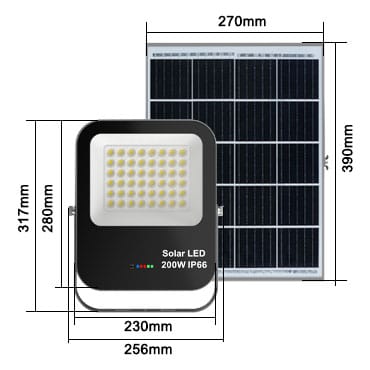

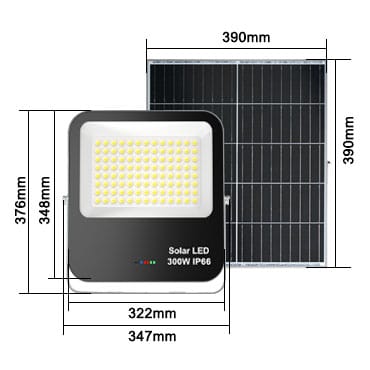

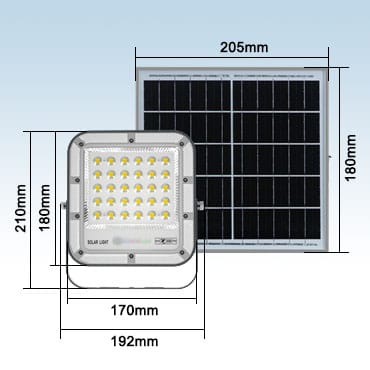

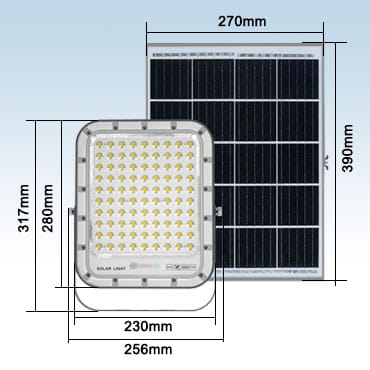

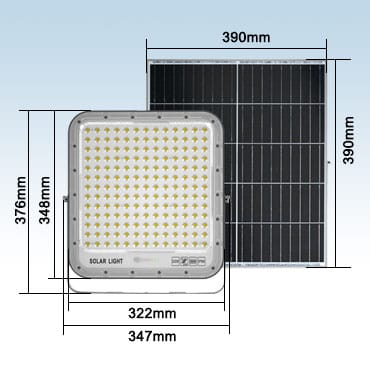

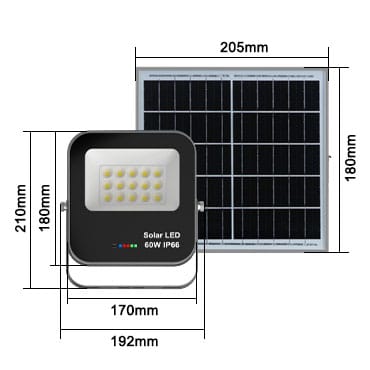

Dimension of CD01 Series Solar Flood Light (4)
Customized Your Logo on Product & Packages
