Custom Steel Light Poles for Distributors and Contractors
NEWSKYPOWER supplies custom modular steel light poles for distributors, contractors and outdoor lighting projects. The standard SP platform covers nominal heights from 2.5 m to 6 m, with selectable wall thickness, Q235 steel with pre-galvanized or hot-dip galvanized finish options, flange-base installation and optional anchor components.
For wholesale and project orders, we can coordinate pole height, section layout, color, mounting method, luminaire interface and export packing according to the approved order specification. Buyers can submit the destination market, quantity, luminaire weight, installation conditions and required finish to receive a more accurate recommendation and quotation.

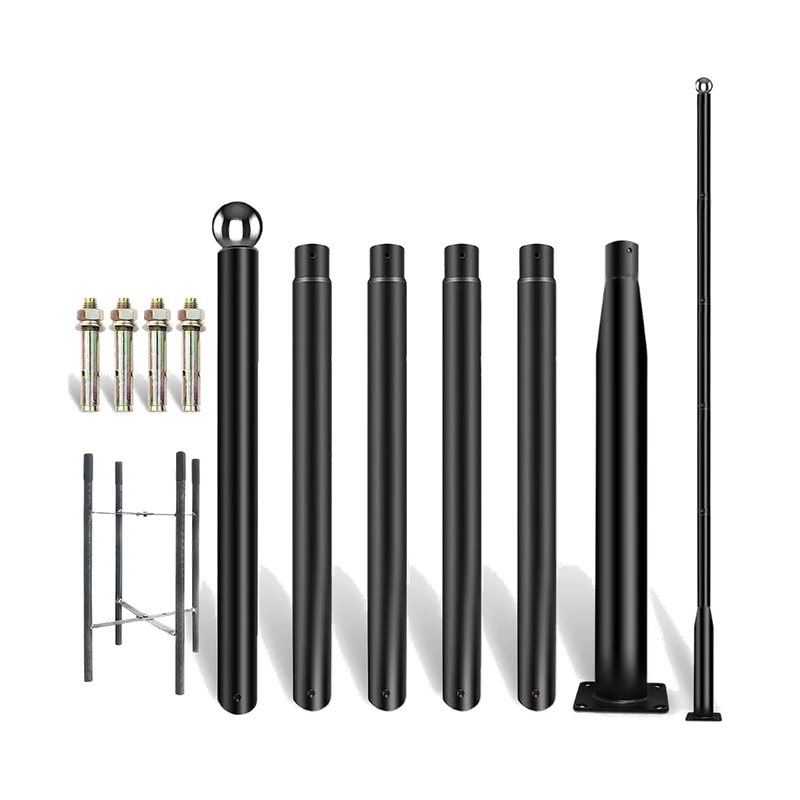

Modular Galvanized Steel Light Pole Models
Compare the standard SP split-pole range below. Compact modular sections simplify carton packing and export handling, while final selection should match the luminaire, mounting foundation and local wind conditions. Full-height MF versions are available separately and should not be confused with the standard completion heights shown below.
- Nominal height: 2.5 m; standard completion height: 2.23 m
- Upper sections: Ø76 mm × 1 m + 0.5 m
- Bottom section: Ø114 mm × 1 m
- Wall thickness: confirm the selected specification for this height
- Optional anchor height: 300 mm
- Material: Q235 steel with pre-galvanized or hot-dip galvanized finish options
- Flange: 220 × 220 × 7.5 mm
- Nominal height: 3 m; standard completion height: 2.82 m
- Upper sections: Ø76 mm × 1 m, 2 sections
- Bottom section: Ø114 mm × 1 m
- Wall thickness: confirm the selected specification for this height
- Optional anchor height: 300 mm
- Material: Q235 steel with pre-galvanized or hot-dip galvanized finish options
- Flange: 220 × 220 × 7.5 mm
- Nominal height: 3.5 m; standard completion height: 3.23 m
- Upper sections: Ø76 mm × 1 m, 2 sections + 0.5 m
- Bottom section: Ø114 mm × 1 m
- Wall thickness: confirm the selected specification for this height
- Optional anchor height: 300 mm
- Material: Q235 steel with pre-galvanized or hot-dip galvanized finish options
- Flange: 220 × 220 × 7.5 mm
- Nominal height: 4 m; standard completion height: 3.73 m
- Upper sections: Ø76 mm × 1 m, 3 sections
- Bottom section: Ø114 mm × 1 m
- Wall thickness: confirm the selected specification for this height
- Optional anchor height: 300 mm
- Material: Q235 steel with pre-galvanized or hot-dip galvanized finish options
- Flange: 220 × 220 × 7.5 mm
- Nominal height: 5 m; standard completion height: 4.65 m
- Upper sections: Ø76 mm × 1 m, 4 sections
- Bottom section: Ø114 mm × 1 m
- Wall thickness: confirm the selected specification for this height
- Optional anchor height: 400 mm
- Material: Q235 steel with pre-galvanized or hot-dip galvanized finish options
- Flange: 220 × 220 × 7.5 mm
- Nominal height: 6 m; standard completion height: 5.72 m
- Upper sections: Ø76 mm × 1.5 m, 3 sections
- Bottom section: Ø114 mm × 1.5 m
- Wall thickness: confirm the selected specification for this height
- Optional anchor height: 400 mm
- Material: Q235 steel with pre-galvanized or hot-dip galvanized finish options
- Flange: 220 × 220 × 7.5 mm
Why Buyers Choose Our Custom Light Pole Program
Q235 steel with pre-galvanized or hot-dip galvanized finish options with selectable wall thickness for different outdoor lighting projects.
Flange-base and anchor-cage configurations can be matched to the approved foundation design.
Detachable sections reduce individual package length and simplify export handling compared with one-piece poles.
Coordinate color, surface finish and corrosion-protection requirements for the destination climate and project specification.

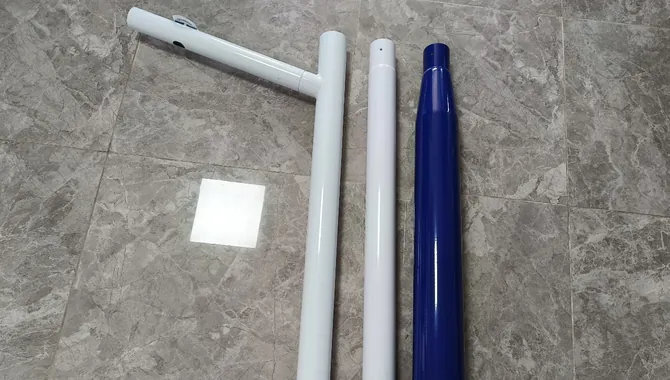

Custom Light Pole Configuration
Custom light poles can be configured by nominal height, section layout, wall thickness, pole color, flange-base arrangement, optional anchors and luminaire mounting details against the approved order specification. This helps distributors and project contractors match the pole to the intended road, garden, yard, parking or commercial outdoor application.
Galvanized Steel Light Poles for Outdoor Projects
The standard SP range uses Q235 steel with pre-galvanized or hot-dip galvanized finish options and a modular Ø114 mm-to-Ø76 mm shaft arrangement. Black is the standard color, while white, grey and dark grey can be customized. The final material thickness, surface finish and corrosion-protection requirement should be confirmed for the destination climate and project specification.

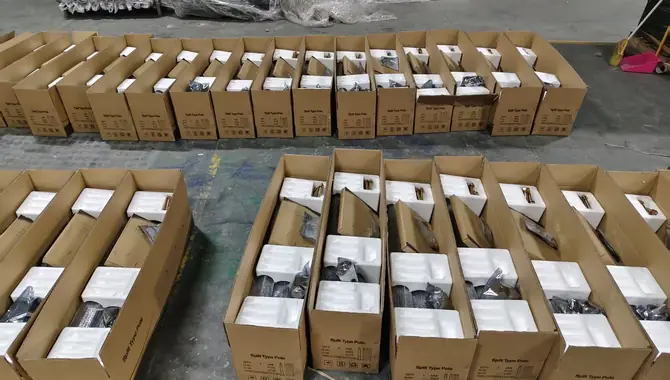

Wholesale Packing and Order Identification
Before shipment, the wholesale order checklist can cover model and section quantities, dimensions, flange and anchor matching, section fit, surface condition, accessories and carton labels. Clear packing lists and model identification help importers, wholesalers and contractors receive and assemble multi-pole orders more efficiently.
Light Pole Solutions for Project Buyers
Modular poles for street lights, solar street lights and other outdoor luminaires. Final selection should consider fixture weight, wind area, pole thickness, foundation and local wind conditions.
2.5M–4M models suit many garden, yard, pathway and residential projects; 5M–6M options support larger outdoor areas when the project design and foundation are suitable.
Light Pole Mounting Options
Use expansion bolts on an engineered concrete base with the required thickness and reinforcement. Asphalt or paving alone should not be treated as the structural foundation.
Use the specified anchor cage in a project-designed concrete foundation where soil, load or wind conditions require it. Construction and curing time depend on the foundation design and local site conditions.
Related Light Pole Solutions
Custom light pole ordering checklist
For an accurate wholesale quotation, please provide the application, destination market, order quantity, required pole height, luminaire details, preferred finish and mounting method.
- Nominal and required completion height
- Luminaire type, weight and mounting interface
- Wall thickness, finish and corrosion-protection requirement
- Foundation, packing, shipping marks and destination port

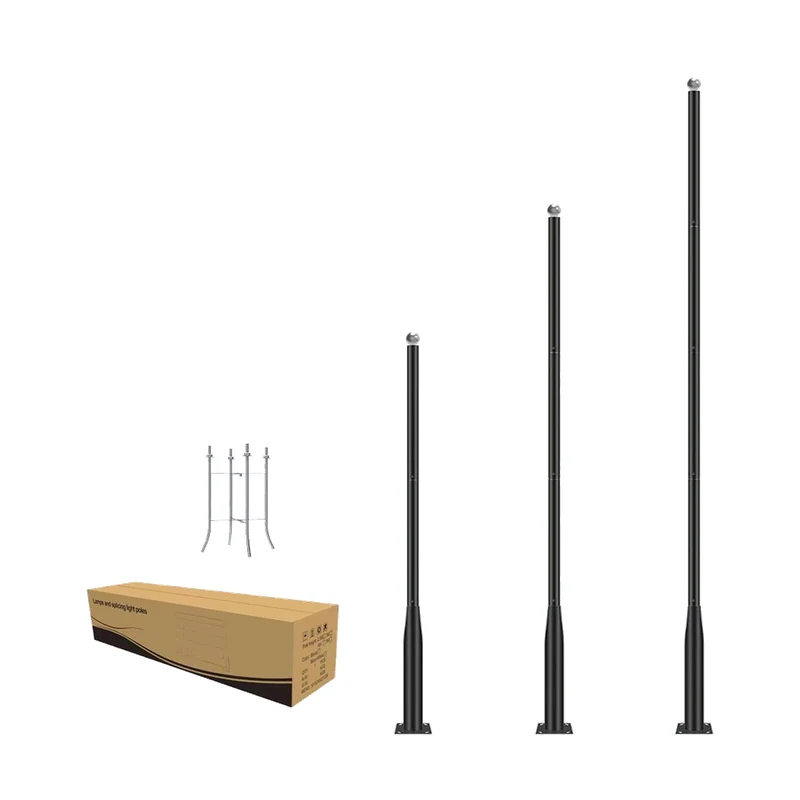

Compare our light pole models and sizes, or review solar light pole solutions for poles configured around solar fixtures.
The standard modular SP range covers nominal heights from 2.5 m to 6 m. Standard completion heights are approximately 2.23 m, 2.82 m, 3.23 m, 3.73 m, 4.65 m and 5.72 m. Separate MF versions are available when the specified completion height needs to match the nominal height.
Yes. Height, section layout, wall thickness, color, finish, mounting and luminaire interface can be coordinated against the approved order specification. Standard colors include black, with white, grey and dark grey available as customization options.
The standard SP light poles use Q235 steel with pre-galvanized or hot-dip galvanized finish options. Final wall thickness and corrosion-protection requirements should be confirmed for the project location and service conditions.
A modular light pole is divided into connected sections for packing, transport and on-site assembly. Compared with a one-piece pole, shorter sections can reduce individual package length and simplify handling for export orders.
The packing plan can use labeled cartons for pole sections and separately identified installation accessories. Final carton quantity, reinforcement, pallet use and shipping marks should be confirmed according to the order quantity and transport method.
The poles can use a flange base fixed to an engineered concrete base or a specified anchor cage installed in a project-designed concrete foundation. Foundation dimensions, reinforcement and curing time depend on the site design and local conditions.
They can be configured for compatible street-light or solar-light fixtures, but suitability depends on the fixture interface, weight, wind area, pole thickness, foundation and local wind conditions. Provide these details before the final model is confirmed.
Please provide the destination market, application, order quantity, required nominal and completion height, luminaire details, preferred finish, mounting method, packing requirements and any drawings or inspection documents required by the project.
