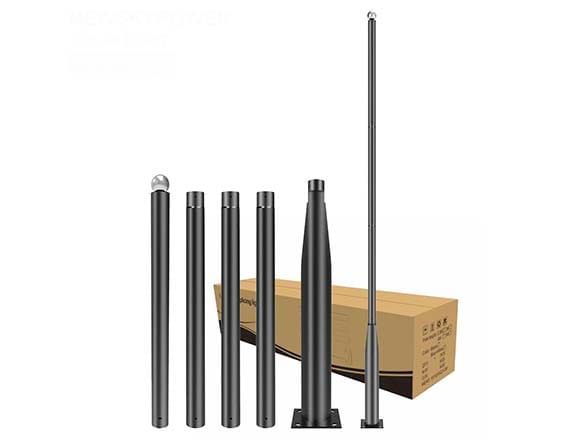

Q235 Steel Detachable Split Pole for Garden, Street , Courtyard Lights

Model: SP-2.5/3/3.5/4/5/6

  • Height: 2.5M/3M/3.5M/4M/5M/6M
  • Q235 Steel
  • Galvanized pipe
  • Φ114mm to 76mm diameter
  • 1.5mm/1.8mm/2.0mm Thickness
  • With underground anchor

Q235 Steel Detachable Split Pole for Garden, Street , Courtyard Lights

SP Series Split Pole is a new detachable splice-type light pole for outdoor use, which is made of galvanized tubes. The metal material is Q235 steel. It is designed and developed by China manufacturer NEWSKYPOWER.

The sectional-type post is simple and easy to install. Because of the split design, the package size of this light pole is much smaller than the regular light pole, saving a lot of volume and high transport costs.

The segmented type pole is from 2.5 to 6 meters in height. The thickness of the splicing type pole is from 1.5mm to 1.8mm, or customized. Anchor, Decorative Stainless Steel Ball, and Rubber Cover are available. Widely used for street lights, garden lights, courtyard lights, pathway lights, parks, pathways, walkways, etc.

Technical Data of SP Splicing Split Poles

Model SP-2.5M SP-3M SP-3.5M SP-4M SP-5M SP-6M
Height 2.5M 3M 3.5M 4M 5M 6M
Completion height 2.23M 2.82M 3.23M 3.73M 4.65M 5.72M
Thickness 1.5mm/1.8mm 1.8mm/2.0m
Anchor height 300mm 400mm
Max load weight 10KG
Diameter Φ114mm to 76mm
Material Q235 Steel (Cold galvanized)
Color Black (white, grey, dark grey can be customized)

Components Lists

component of split pole

Pole Dimension

dimension of split pole

Pole Assembling

pole assemble

Installation with Anchor

installation with anchor

Installation without Anchor

installation without anchor

Photos of SP Series Split Poles

Packing of SP Series Split Pole

package of split pole
Inner
packing of split pole
Outer
Does this pole come with underground anchor?

Yes, the anchor is optional.

Is the light pole hot-dip galvanized?

The pole is cold galvanized.

How many kilograms is the load bearing capacity of the light pole?

10KG.

What is OEM quantity?

100PCS.
