MJ-AW Series Solar Flood Light

Model: MJ-AW60/100/200/300/500/800

Power: 60W/100W/200W/300W/500W/800W
POLY Solar panel
SMD5730 LED beads
LiFePO4 lithium battery
Die-casting aluminum lamp body
IP67 Waterproof
Remote contol
CE,ROHS

PRODUCT DETAILS

Send Your Inquiry

Summary
Technical Data
Details
Feature
Lighting Effect

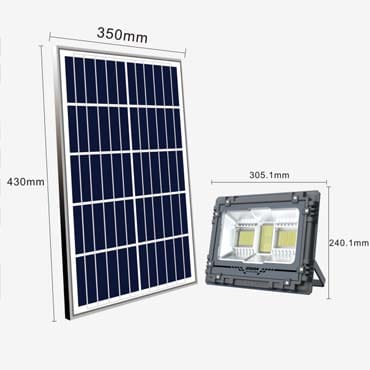

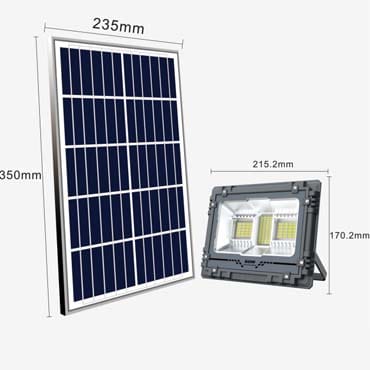

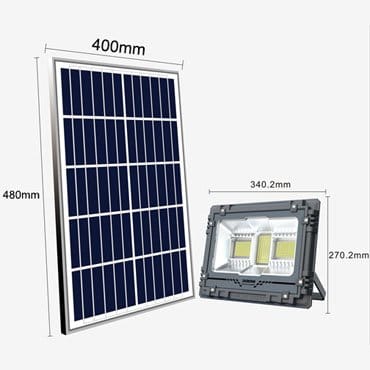

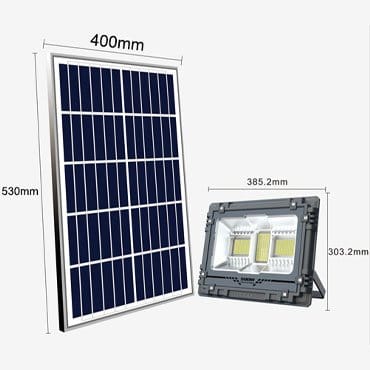

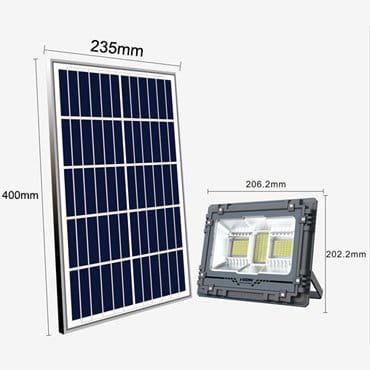

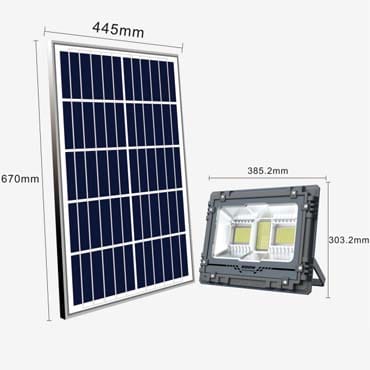

Dimension
Top

Alien Warrior MJ-AW Series Solar Flood Light

Technical Data

Specificaton
Packing

Model	MJ-AW60	MJ-AW100	MJ-AW200	MJ-AW300	MJ-AW500	MJ-AW800
Rated power	60W	100W	200W	300W	500W	800W
LED bead（5730）	80pcs	136pcs	222pcs	318pcs	381pcs	381pcs
Lumens	600LM	1000LM	1500LM	2000LM	2500LM	3000LM
Solar panel	12W/5V	15W/5V	25W/5V	35W/5V	40W/5V	50W/5V
LiFePO4 battery	6AH/3.2V	12AH/3.2V	18AH/3.2V	24AH/3.2V	30AH/3.2V	48AH/3.2V
Lighting time	15hours+	18hours+	18hours+	18hours+	18hours+	18hours+
Lighting area	50m2	80m2	150m2	200m2	300m2	400m2
Color temp.	6500K
Material	Die-casting Aluminum
Water proof	IP67
Cable length	5Meters
Charge time	8H
Lighting mode	Light on at dusk, Light off at dawn Auto. Brightness adjustable, Timer off.

Lighting Mode

Intelligent automatic power reduction

Time	0-0.5H	0.5-2H	2-4H	5H	To Dawn
Constant lighting brightness	100-80%	80-60%	60-50%	50-40%	40-20%

Model	MJ-AW60	MJ-AW100	MJ-AW200	MJ-AW300	MJ-AW500	MJ-AW800
Solar panel (Gift box)	24536026mm	30036026mm	36044026mm	36059026mm	36064026mm	45568030mm
Lamp (Gift box)	22018066mm	26521371mm	31024675mm	34527884mm	39031088mm	390*310888mm
QTY/CTN.	7	5	6	4	4	2
Carton G.W	14.3KG	14.1KG	22.9KG	20.45KG	23.35KG	14.7KG
Carton size	420375270mm	365315380mm	475430385mm	600300380mm	650310410mm	690170470mm

Details of Alien Warrior MJ-AW Series Solar Flood Light

2835SMD

High Brightness with Optical Lens

High brightness 2835SMD LED bead with PC optical lens. low light decay, low heat, constant curren stability, prolong service life of the lamp.

The optical lens provide greater luminance uniformity. 150*70 Degree luminous Angle.

The lens can effectively gather the light to improve the brightness and reduce the light loss. The light efficiency is 20% increased than traditional reflective cup.

POLY

Solar Panel

Outstanding performance in Low-Light, High transparent, Unique & Advanced technology giving the panel good performance.

Ability to withstand High Wind-Pressure and Snow-Load, Advanced module sealing technology to eliminate leakage and frame deformation.

Aluminium frame with tempered glass and waterproof junction box.

Military quality system ensure 25 years power output warranty.

Die-casting Aluminum

Strong Lamp Body

Patented appearance design.

The lamp body is made of sturdy Die-casting aluminum, Sturdy and durable.

The Die-cast aluminium material is rust-free and can be used in coastal areas. Good heat dissipation can help LEDs work better.

32650

LiFePO4 Lithium Battery

Built-in high-capacity 32650 lithium iron phosphate battery, operating temperature -20 degrees to +60 degrees.

The circulation time is 2000 times, BSM over-charge and over-discharge protection.

Excellent safety and stability.

IP67

Outdoor Waterproof

Good sealing design, waterproof with built-in waterproof rubber ring.

All MJ-XJ Series All In Two solar street light was passed IP67 waterproof testing by authoritative laboratory.

The solar street light can be used in any outdoor environment, rainstorm weather.

PWM

P-MOS Fast Charging

The solar controller has unique charge and discharge management system, PWM control P-MOS charging, Charge & discharge are more efficiency.

For example: 6V /30W solar panel is commonly used in the market, and the peak charging current is 5A, this model use 5V/30w,The charging peak current is 6A, the charging efficiency is increased by 20%.
