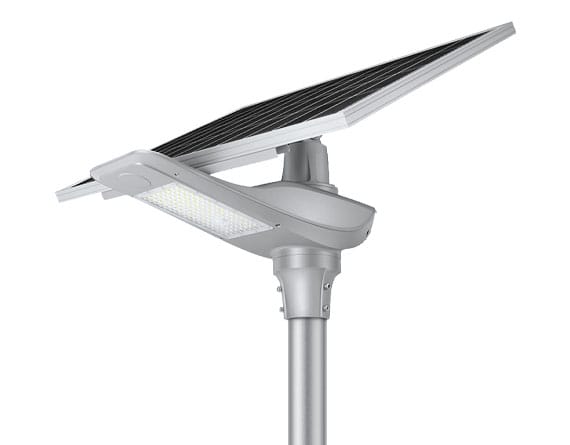

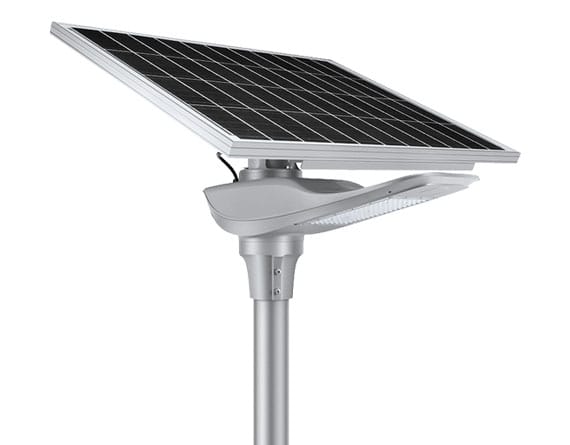

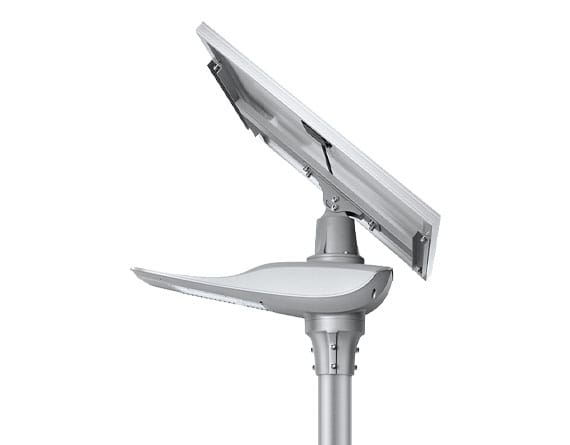

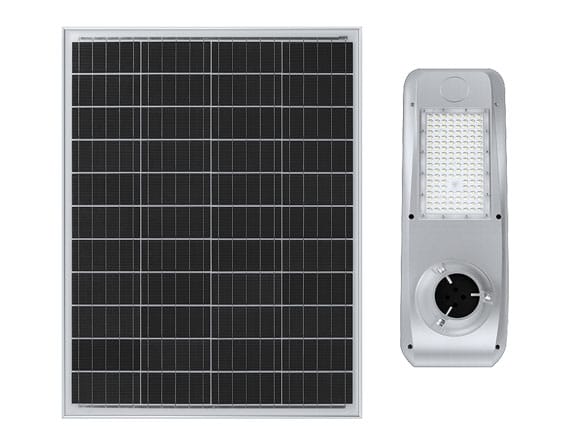

NF Series Split Solar Street Light
Model: NF-30W/40W /60W/80W
- Power: 30W/40W /60W/80W
- Monocrystalline silicon solar panel
- Bridgelux LED Source with lens
- LiFePO4 Lithium battery
- Die-casting Aluminum body
- IP65 Waterproofing
- CE, ROHS Certified
Newskypower Split Solar Street Light
The NK Series Split Solar Street Light is mainly designed for commercial projects. Its power ratings are 30W, 40W, 60W, and 80W.
NK Semi-integrated Commercial Solar Street Light integrates premium components for optimal performance. Featuring high-efficiency monocrystalline solar panels (21%+ conversion rate) and durable LiFePO4 batteries (2,000+ cycles), it ensures reliable nighttime illumination. The system utilizes A-class energy-saving LED beads (180LM/W) with 100,000-hour lifespan, managed by an intelligent MPPT controller maximizing solar absorption. Protected by IP65-rated die-cast aluminum alloy casing, it withstands harsh environments. Modular design simplifies maintenance while maintaining 3-5 rainy-day autonomy. Ideal for parking lots, campuses, and municipal roads, this eco-friendly solution reduces grid dependence with a minimal carbon footprint. Weatherproof construction ensures year-round operation (-20°C to 60°C), offering 30% higher energy efficiency than conventional models.
Technical Data of NF Split Solar Street Light
- Specificaton
- Packing
| Model | NF-30W | NF-40W | NF-60W | NF-80W |
| Rated power | 30W | 40W | 60W | 80W |
| Lumens | 5100LM | 6800LM | 10200LM | 13600LM |
| Solar panel | 80W/18V | 100W/18V | 120W/18V | 150W/18V |
| LiFePO4 battery | 24AH/12.8V | 30AH/12.8V | 36AH/12.8V | 42AH/12.8V |
| Install height | 4-6M | 5-7M | 6-8M | 8-10M |
| Spacing | 12-18M | 15-21M | 18-24M | 24-30M |
| Pole diameter | 76mm | |||
| Color temp. | 6500K | |||
| Work temp. | -20℃ ~ +60℃ (When the temperature is below -10℃, derating use ) | |||
| Waterproof | IP65 | |||
| Charge time | 6-8H | |||
| Lighting time | Light on at dusk, Light off at dawn auto. 12 hours of lighting time per day, 3 rainy days backup. 365 days can be light. | |||
| Model | NF-30W | NF-40W | NF-60W | NF-80W |
| Carton Size (Lamp Body) | 720*310*320mm | 720*310*320mm | 720*310*320mm | 720*310*320mm |
| Carton Size (Solar Panel) | 715*685*65mm | 715*875*65mm | 715*945*65mm | 715*1145*65mm |

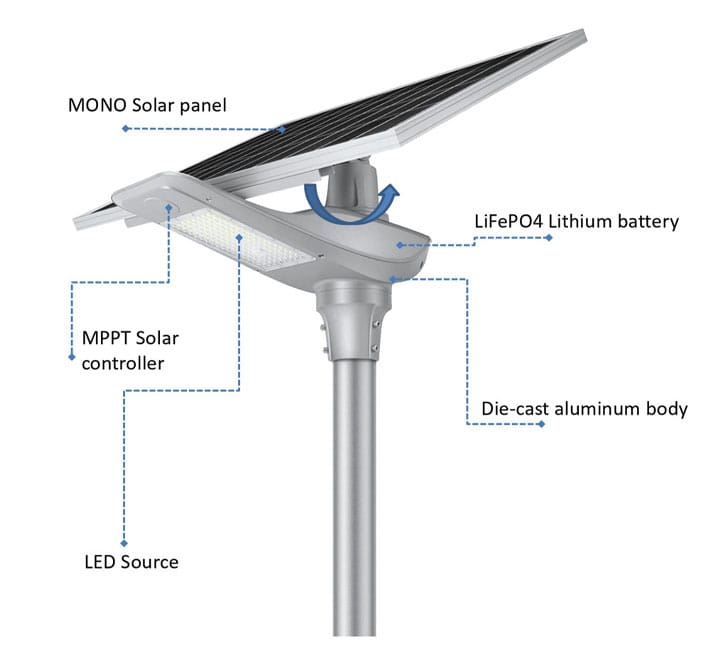

Details of NF Split Solar Street Light
Solar Panel
High module conversion efficiency. Module efficiency up to 21% is achieved through advanced cell technology and manufacturing capabilities.
Reliable quality leads to better sustainability even in harsh environments like deserts, farms, and coastlines.
Operating temperature range – 45 ℃ ~ +85 ℃,STC: 1000W/M², 1.5AM, 25℃.
LED Head with Optical Lens
A-CLASS LED bead: the advanced lighting technology brings a higher luminous intensity, lower thermal resistance, and greater luminaire stability.
This in turn improves the longevity of the LED promising more long-term system reliability.
Luminous Efficiency>180Lm/W. Working time is 100000 hours. Color temperature can be chosen from 3000K to 6000K.
LiFePO4 Lithium Battery
New-generation LiFePO4 Lithium batteries offer 4-5 times more storage and power capacity versus conventional Lead Acid batteries.
LiFePO4 is characterized by high rate discharging, high temperature, long cycle life, and safety.
The number of cycles is over 2000 times. Lifespan is 5-8 years. Comply with IEC61233.
Intelligent Controller
Intelligent MPPT solar charge controller technology with motion sensor, the tracking efficiency >99%, the charging conversion efficiency is up to 96%, and the discharging conversion efficiency is up to 95.5%.
PIR or Microwave Radar motion sensor detects human motion within 12 meters and adjusts the output power of the LED light automatically, from “30% dim brightness” to “full brightness”.
Automatic power regulation to support 365 days of lighting on.
Die-casting Aluminum Housing
The light body is made of die-casting aluminum material, it withstands harsh environments.
By adopting whole-shaped technology, the product has the characteristics of high intensity and durability.
Weatherproof construction ensures year-round operation (-20°C to 60°C), offering 30% higher energy efficiency than conventional models. Suitable for all kinds of outdoor and Marine applications.
Features of NF Integrated Solar Street Light
