ATHENA-A Solar Energy Storage System

Model: SCAE-A-51.2-100/200

Rated Capacity: 5KWH/10KWH
Intelligent LCD display
LiFePO4 lithium battery
RS485 and CAN Communication Ports
AC and PV Input
CE, ROHS

Summary
Technical Data
Details
Feature
Lighting effect
Dimension
Top

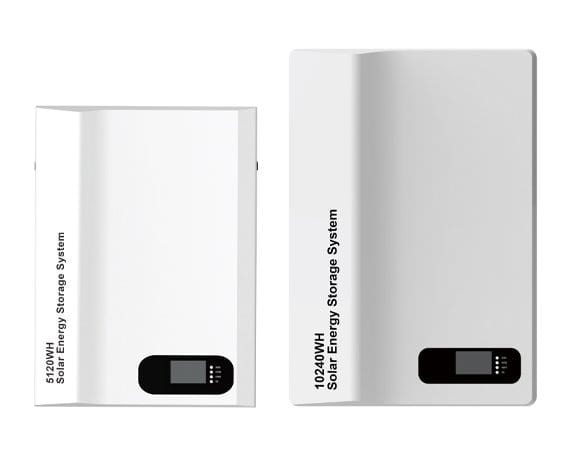

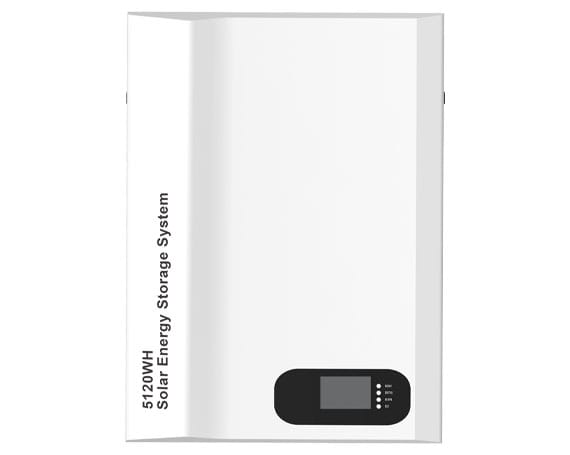

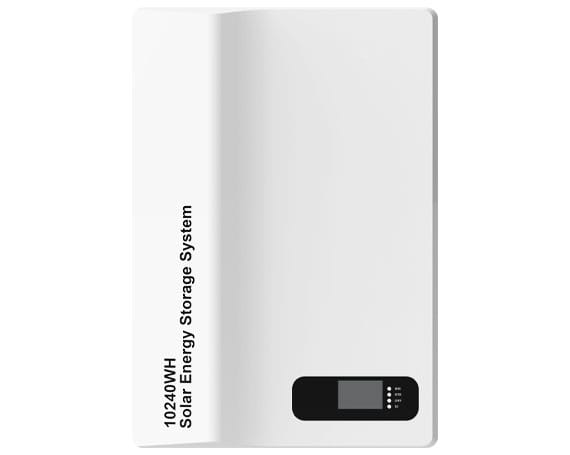

ATHENA-A Solar Energy Storage System

Home ESS refers to the storage of electricity locally by household energy storage equipment for later use, ESS consists of energy storage batteries inverters, and other components. We use a brand new A-grade LiFePo4 battery, equipped with an intelligent battery management system for charging and discharging cycles.

The inverter converts DC energy to AC energy to meet the requirements for household electricity. Normally this product is installed in combination with PV system to provide green electricity to household users, reduce energy consumption, and reduce negative impacts on the environment, it’s widely used in remote areas or areas with unstable power supply, to provide reliable, stable, and cost-effective energy supply.

Solar Energy Storage System

Technical Data

Specificaton
Packing

Battery

Model	SCAE-A-51.2-100	SCAE-A-51.2-200
Rated Capacity	5120Wh(100Ah)	10240Wh(200Ah)
Nominal Voltage	51.2V
Discharge Voltage Range	43.2V-58.4V
Standard Charing Current	50A
Max Charging Current	100A
Max Discharging Current	100A
Depth of Discharge	90%
Communication Interface	CAN/RS485
Cycle Life	≥6000，25±2℃，0.5C，EOL80%
Working Temperature Range	Charge：0℃-50℃；Discharge：-10℃-60℃
Storage Temperature	-20℃-60℃

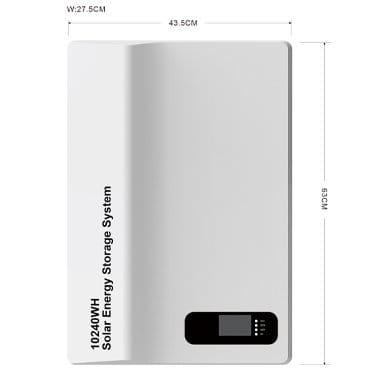

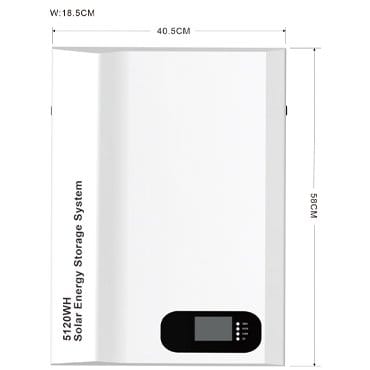

Dimension	40.518.558cm	43.52863cm

Name	Item NO	Components	CNT	Carton Size (cm)	N.W (kg)	G.W (kg)	Unit CBM (m³)	Total CBM (m³)
ATHENA A SERIES 5KWH	SCAE-A-51.2-100	Battery; Back Bracket; Scew Pack; AC Cable; Communication Cable	1	654524	46.8	49.3	0.068	0.068
ATHENA A SERIES 10KWH	SCAE-A-51.2-200	Battery; Back Bracket; Scew Pack; AC Cable; Communication Cable	1	7050.545	86.7	101.3	0.159	0.159

Details of ATHENA-A Solar Energy Storage System

Private Design

Quick installation

Modular arbitrary stacking, automatic dialing, convenient installation, and wire-free.

BMS Solution

Specifically designed

Adopts the architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.
