ATHENA-B Solar Energy Storage System
Model: SCAE-B-51.2-300
- Rated Capacity: 15KWH
- Intelligent LCD display
- LiFePO4 lithium battery
- RS485 and CAN Communication Ports
- AC and PV Input
- CE, ROHS
ATHENA-B Solar Energy Storage System
Home ESS refers to the storage of electricity locally by household energy storage equipment for later use, ESS consists of energy storage batteries inverters, and other components. We use a brand new A-grade LiFePo4 battery, equipped with an intelligent battery management system for charging and discharging cycles.
The inverter converts DC energy to AC energy to meet the requirements for household electricity. Normally this product is installed in combination with PV system to provide green electricity to household users, reduce energy consumption, and reduce negative impacts on the environment, it’s widely used in remote areas or areas with unstable power supply, to provide reliable, stable, and cost-effective energy supply.
Technical Data
- Specificaton
- Packing
Battery
| Model | SCAE-B-51.2-300 |
| Rated Capacity | 15360Wh(300Ah) |
| Nominal Voltage | 51.2V |
| Discharge Voltage Range | 43.2V-58.4V |
| Standard Charing Current | 100A |
| Max Charging Current | 200A |
| Max Discharging Current | 200A |
| Depth of Discharge | 90% |
| Communication Interface | CAN/RS485 |
| Cycle Life | ≥6000，25±2℃，0.5C，EOL80% |
| Working Temperature Range | Charge：0℃-50℃；Discharge：-10℃-60℃ |
| Storage Temperature | -20℃-60℃ |

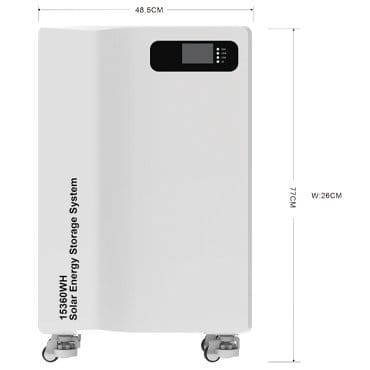

| Dimension | 48.5*26*77cm |
| Name | Item NO | Components | CNT | Carton Size (cm) | N.W (kg) | G.W (kg) | Unit CBM (m³) | Total CBM (m³) |
| ATHENA B SERIES 15KWH | SCAE-B-51.2-300 | Battery; Fuma Wheel; Scew Pack; AC Cable; Communication Cable | 1 | 82.6*55.5*42 | 113.5 | 129.8 | 0.193 | 0.193 |
Details of ATHENA-B Solar Energy Storage System
Quick installation
Modular arbitrary stacking, automatic dialing, convenient installation, and wire-free.
Specifically designed
Adopts the architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.
AC and PV
Lithium Battery
Brand new A grade LiFePo4, 6000 times cycle life. Lifespan up to 10 years.
Intelligent LCD display
Intelligent LCD display, LED indicator light. Real-time monitoring of operating data.
Multiple communication port
Support RS485 and CAN communication ports.
Features of ATHENA-B Solar Energy Storage System
