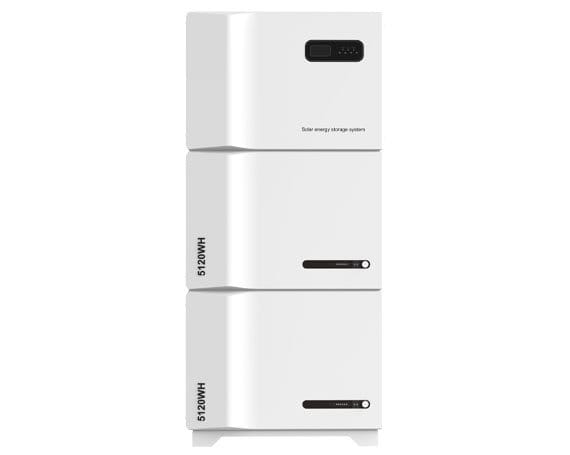

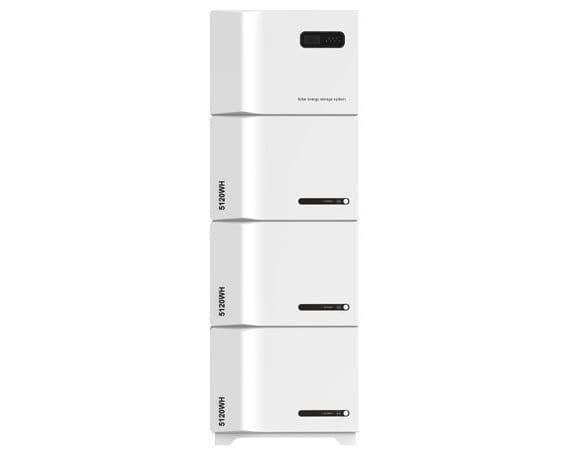

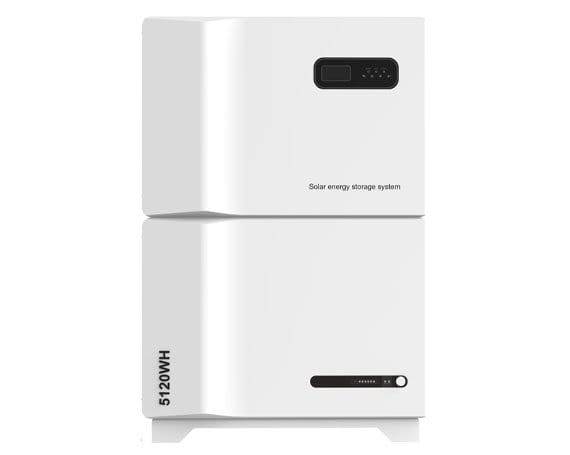

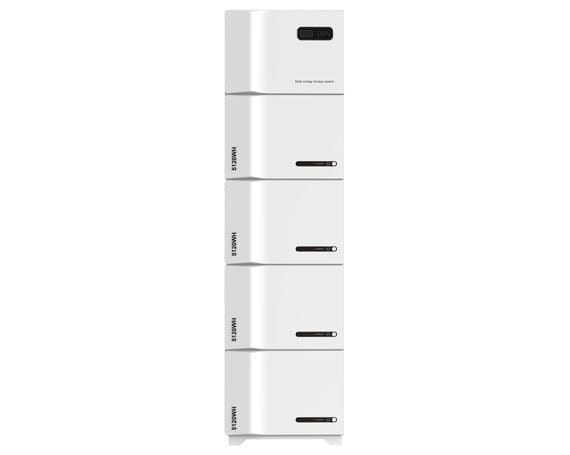

APOLLO-B Solar Energy Storage System

Model: SCAP-B-51.2-100/200/300/400

Rated Capacity: 5KWH/10KWH/15KWH/20KWH
5KWH Inverter
Intelligent LCD display
LiFePO4 lithium battery
RS485 and CAN Communication Ports
AC and PV Input
CE, ROHS

Summary
Technical Data
Details
Feature
Lighting effect

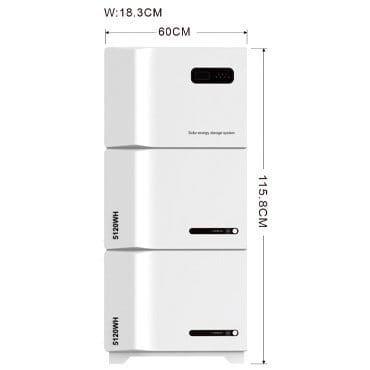

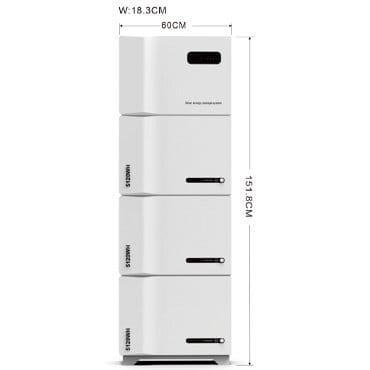

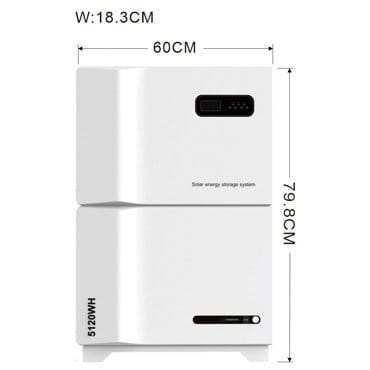

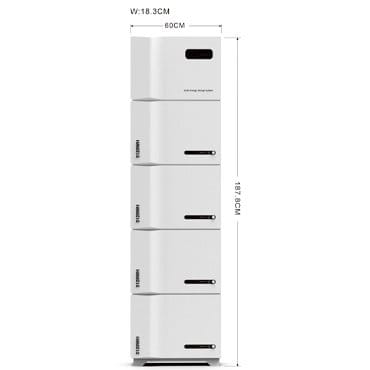

Dimension
Top

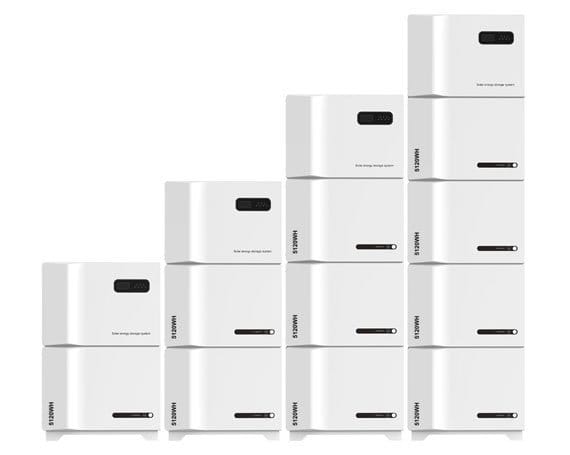

APOLLO-B Solar Energy Storage System

Home ESS refers to the storage of electricity locally by household energy storage equipment for later use, ESS consists of energy storage batteries inverters, and other components. We use a brand new A-grade LiFePo4 battery, equipped with an intelligent battery management system for charging and discharging cycles.

The inverter converts DC energy to AC energy to meet the requirements for household electricity. Normally this product is installed in combination with PV system to provide green electricity to household users, reduce energy consumption, and reduce negative impacts on the environment, it’s widely used in remote areas or areas with unstable power supply, to provide reliable, stable, and cost-effective energy supply.

Solar Energy Storage System

Technical Data

Specificaton
Packing

Inverter

Model	SCAP-B-51.2-100	SCAP-B-51.2-200	SCAP-B-51.2-300	SCAP-B-51.2-400
Rated Power	5KW
AC Rated Voltage	230V AC
Rated Frequency	50Hz
Efficiency	>94%
Transfer Time	10ms
Waveform	Pure sinusoidal wave
Battery Overvoltage	58.4V
Battery Undervoltage Alarm	45V
Constant Voltage Charge	58.4V
Float Voltage	56V
Max Charging Current	100A
Communication Interface	RS232(Inverter)/RS485(BMS)
Dimension	6018.336.5cm

AC Input

Model	SCAP-B-51.2-100	SCAP-B-51.2-200	SCAP-B-51.2-300	SCAP-B-51.2-400
Nominal Voltage	230V AC
Voltage Range	90-280V AC
Rated Frequency	50Hz
Frequency Range	40-70Hz
Rated Current	30A
Max AC Current	60A

PV Input

Model	SCAP-B-51.2-100	SCAP-B-51.2-200	SCAP-B-51.2-300	SCAP-B-51.2-400
Max Voltage	500V
Optimum Voltage	300-400V
Voltage Range	120V-500V DC
Max Power	5500W

Battery

Model	SCAP-B-51.2-100	SCAP-B-51.2-200	SCAP-B-51.2-300	SCAP-B-51.2-400
Rated Capacity	5120Wh(100Ah)	10240Wh(200Ah)	15360Wh(300Ah)	20480Wh(400Ah)
Nominal Voltage	51.2V
Discharge Voltage Range	43.2V-58.4V
Standard Charing Current	50A
Max Charging Current	100A
Max Discharging Current	100A
Depth of Discharge	90%
Communication Interface	CAN/RS485
Cycle Life	≥6000，25±2℃，0.5C，EOL80%
Working Temperature Range	Charge：0℃-50℃；Discharge：-10℃-60℃
Storage Temperature	-20℃-60℃
Dimension	6018.339cm

Name	Item NO	Components	CNT	Carton Size (cm)	N.W (kg)	G.W (kg)	Unit CBM (m³)	Total CBM (m³)
APOLLO B Series 5KWH	SCAP-B-51.2-100	Inverter	1	654324	26.5	28	0.067	0.067
		Battery	1	654324	44.2	45.7	0.067	0.067
		Accessories	1	61918	4.3	4.6	0.010	0.010
APOLLO B Series 10KWH	SCAP-B-51.2-200	Inverter	1	654324	26.5	28	0.067	0.067
		Battery	2	654324	44.2	45.7	0.067	0.134
		Accessories	1	61918	4.3	4.6	0.010	0.010
APOLLO B Series 15KWH	SCAP-B-51.2-300	Inverter	1	654324	26.5	28	0.067	0.067
		Battery	3	654324	44.2	45.7	0.067	0.201
		Accessories	1	61918	4.3	4.6	0.010	0.010
APOLLO B Series 20KWH	SCAP-B-51.2-400	Inverter	1	654324	26.5	28	0.067	0.067
		Battery	4	654324	44.2	45.7	0.067	0.268
		Accessories	1	61918	4.3	4.6	0.010	0.010

Details of APOLLO-B Solar Energy Storage System

Private Design

Quick installation

Modular arbitrary stacking, automatic dialing, convenient installation, and wire-free.

BMS Solution

Specifically designed

Adopts the architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.
