E7 All-in-One Solar Street Light with Optical Lenses
Models: E7-300T / E7-400T / E7-500T
- Light output: 2,436 / 2,968 / 3,926 lumens
- 35W / 40W / 45W monocrystalline solar panel
- 25Ah / 30Ah / 35Ah LiFePO4 battery, 3.2V
- Integrated ABS housing with optical-lens LEDs
- Radar sensing and remote-controlled lighting modes
- 6500K cool white; light grey or dark grey body
E7 T-Series Integrated Solar Lighting
The E7 T-series is an integrated solar street light with optical-lens LEDs, a monocrystalline solar panel and a built-in LiFePO4 battery. Three configurations help distributors and installers compare lighting for residential roads, outdoor access areas and yards without a separate grid connection.
Choose E7-300T, E7-400T or E7-500T by the required light output, panel capacity, battery and installation height. The light grey or dark grey ABS housing offers a consistent appearance across the range, while radar sensing and remote control allow the operating mode to suit the site.
This page covers the T-series optical-lens models. For other configurations, compare our solar street light range.
Technical Data of E7 T-Series Solar Street Lights
- Specifications
| Model | E7-300T | E7-400T | E7-500T |
|---|---|---|---|
| Nominal product designation | 300W | 400W | 500W |
| Luminous flux | 2436 lm | 2968 lm | 3926 lm |
| Monocrystalline solar panel | 35W / 4V | 40W / 4V | 45W / 4V |
| LiFePO4 battery | 25Ah / 3.2V | 30Ah / 3.2V | 35Ah / 3.2V |
| Recommended installation height | 4–6m | 4–7m | 5–8m |
| Catalogue coverage reference | 300m² | 400m² | 500m² |
| Housing material | ABS | ABS | ABS |
| Body colors | Light grey / dark grey | Light grey / dark grey | Light grey / dark grey |
| Color temperature | 6500K | 6500K | 6500K |
| Operating temperature | −20°C to +60°C | −20°C to +60°C | −20°C to +60°C |
| Pole diameter | 60–80mm; 76mm preferred | 60–80mm; 76mm preferred | 60–80mm; 76mm preferred |
| Charging reference | 4–6 hours of effective sunshine | 4–6 hours of effective sunshine | 4–6 hours of effective sunshine |
Selection note: 300W, 400W and 500W are nominal product designations, not stated rated electrical consumption. Compare the listed lumens, solar panel and battery when selecting a model.
The current catalogue gives a reference of 12 hours of lighting per night with up to 3 rainy days of backup. Runtime depends on the lighting mode, charge level, sunlight and weather. Coverage and mounting-height figures are selection references; actual illumination depends on the installation layout and required light level.
E7 Features and Installation

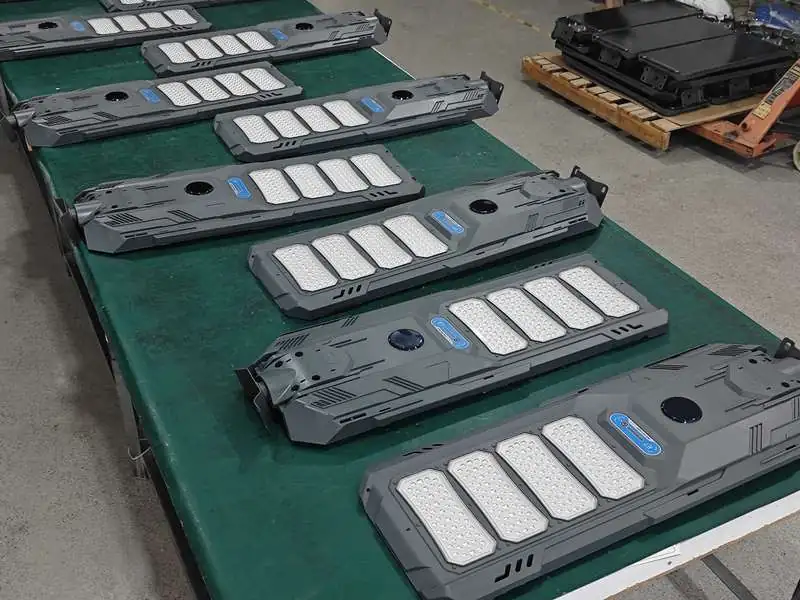

Inspect the E7 Optical-Lens Modules
This real factory photograph shows E7-400T lamp bodies arranged for inspection, with the optical-lens LED modules visible. Compare the E7-300T, E7-400T and E7-500T specifications in the technical table before selecting a configuration.
Panel, Battery and Lighting Modes
The three E7 models pair 35–45 W monocrystalline solar panels with 25–35 Ah, 3.2 V LiFePO4 batteries. The original E7 instructions describe radar-sensing, constant-light and timed constant-light-then-sensor modes. Lighting time depends on the selected mode and local charging conditions; confirm the configuration in the quotation.
Plan Mounting and Solar Exposure
Choose an installation position with unobstructed sunlight and check the pole or wall-mount interface against the project drawing. The E7 source instructions show mounting options, but the supplied lamp arm, pole and fixing hardware depend on the order. Confirm the supplied parts and installation requirements before purchase.
Request an E7 Configuration and Quote
Tell NEWSKYPOWER your installation location, mounting height, pole diameter, lighting schedule, preferred body color and quantity. We can help compare the three E7 T-series models and confirm the required mounting accessories.
This page covers E7-300T, E7-400T and E7-500T with optical lenses. Compare their light output, panel capacity and battery specifications to choose the configuration for your site.
These are nominal product designations in the current catalogue. Compare the listed luminous flux, solar panel and battery capacity when choosing the configuration. Rated electrical consumption is not specified here.
Yes. The original instructions describe remote-controlled radar sensing, constant lighting and timed constant lighting followed by sensing. Select the mode according to site activity and available sunlight.
Send NEWSKYPOWER the model or required light output, installation location, mounting height, pole diameter, lighting schedule, body color and order quantity. Confirm the required arm, pole and accessories as part of the quotation.

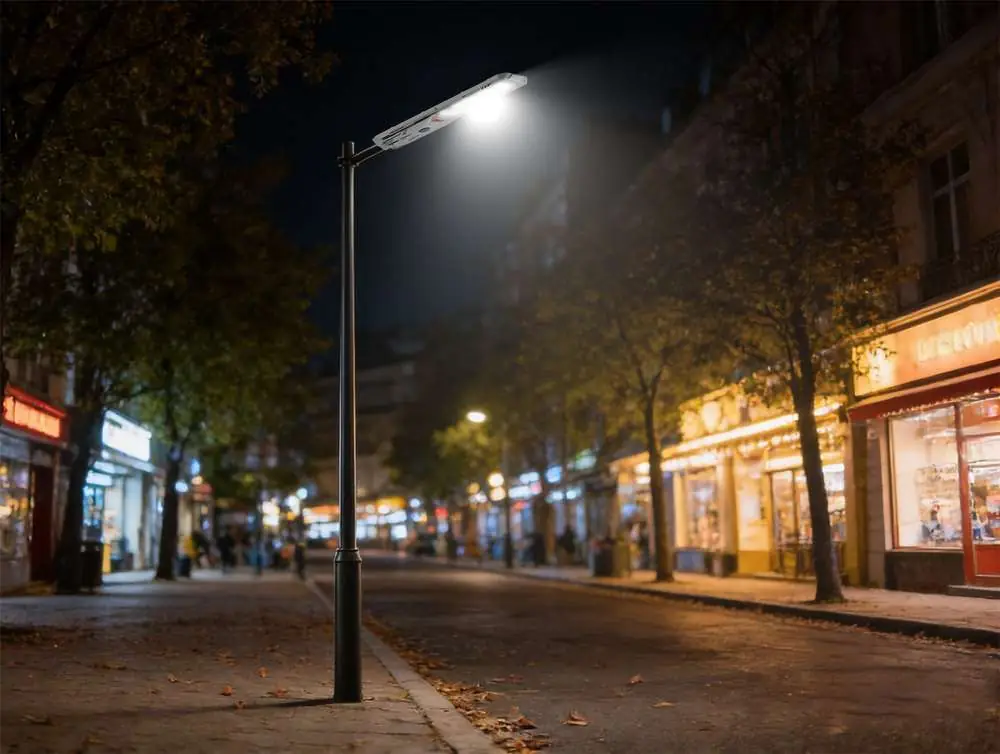

The pole shown in installation images is an illustration. The supply scope depends on the quotation. Confirm whether the pole, lamp arm and mounting hardware are included before placing an order.
