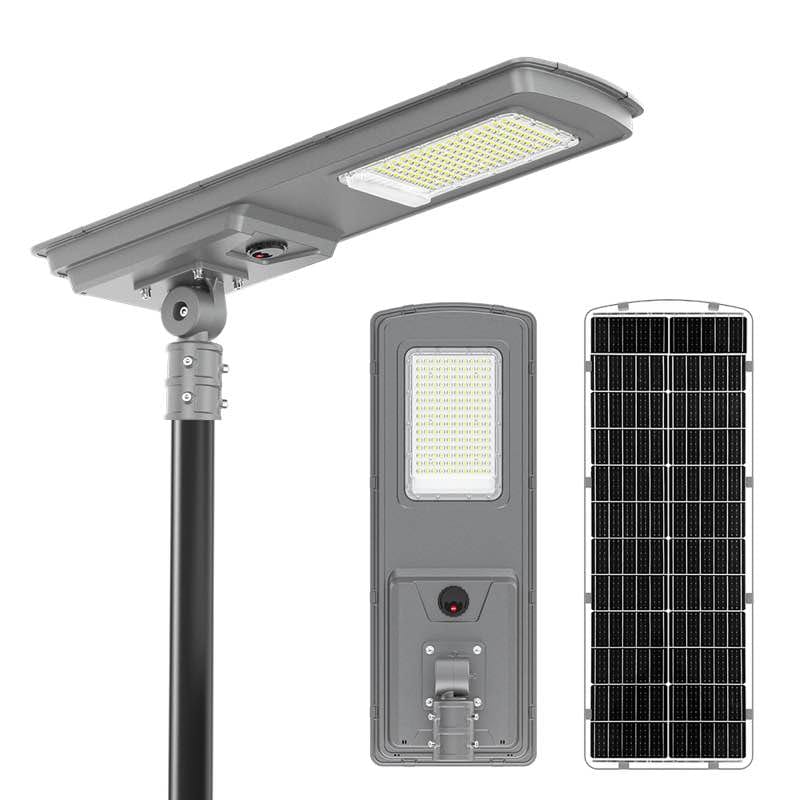

QH01 All-in-One Solar Street Light with Motion Sensor
Models: QH01-200 / QH01-300 / QH01-400
- Rated lighting power: 20W / 25W / 30W
- Light output: 3,200 / 4,000 / 4,800 lumens
- 30W / 40W / 50W monocrystalline solar panel
- Built-in LiFePO4 battery and radar motion sensor
- Galvanized steel housing with PC components
- 6500K cool white; IP65 protection
QH01 Integrated Solar Lighting for Outdoor Access Areas
The QH01 series combines the solar panel, rechargeable LiFePO4 battery and LED light in one integrated housing. It is a practical option for distributors and installers comparing solar lighting for residential access roads, yards and outdoor paths where a grid power connection is inconvenient.
Choose from three configurations with rated lighting power of 20W, 25W and 30W. The galvanized steel body, SMD5054 LEDs with optical lenses and remote-controlled lighting modes support straightforward product selection and installation.
Compare the model-specific panel, battery and mounting recommendations below, or browse our solar street light range for other configurations.
Technical Data of QH01 Solar Street Lights
- Specifications
| Model | QH01-200 | QH01-300 | QH01-400 |
|---|---|---|---|
| Nominal product designation | 200W | 300W | 400W |
| Rated lighting power | 20W | 25W | 30W |
| Luminous flux | 3200 lm | 4000 lm | 4800 lm |
| SMD5054 LED quantity | 60 pcs | 100 pcs | 150 pcs |
| Monocrystalline solar panel | 30W | 40W | 50W |
| LiFePO4 battery | 25Ah / 3.2V | 30Ah / 3.2V | 45Ah / 3.2V |
| Recommended installation height | 4–5m | 5–6m | 6–7m |
| Recommended spacing | 12–15m | 15–18m | 18–21m |
| Color temperature | 6500K | 6500K | 6500K |
| Housing | Galvanized steel + PC | Galvanized steel + PC | Galvanized steel + PC |
| Protection rating | IP65 | IP65 | IP65 |
| Lighting modes | Constant lighting / radar motion sensing, with remote control | Constant lighting / radar motion sensing, with remote control | Constant lighting / radar motion sensing, with remote control |
| Charging reference | 4–6 hours of effective sunshine | 4–6 hours of effective sunshine | 4–6 hours of effective sunshine |
Selection note: 200W, 300W and 400W are nominal product designations. Rated lighting power is 20W, 25W and 30W respectively.
The current catalogue gives a reference of 12 hours of lighting per night with up to 3 rainy days of backup. Actual runtime depends on the initial charge, solar exposure, selected lighting mode and weather. Mounting height and spacing are selection references; confirm them against the required illumination and site layout.
QH01 Features and Installation
Choose the QH01 Size for Your Project

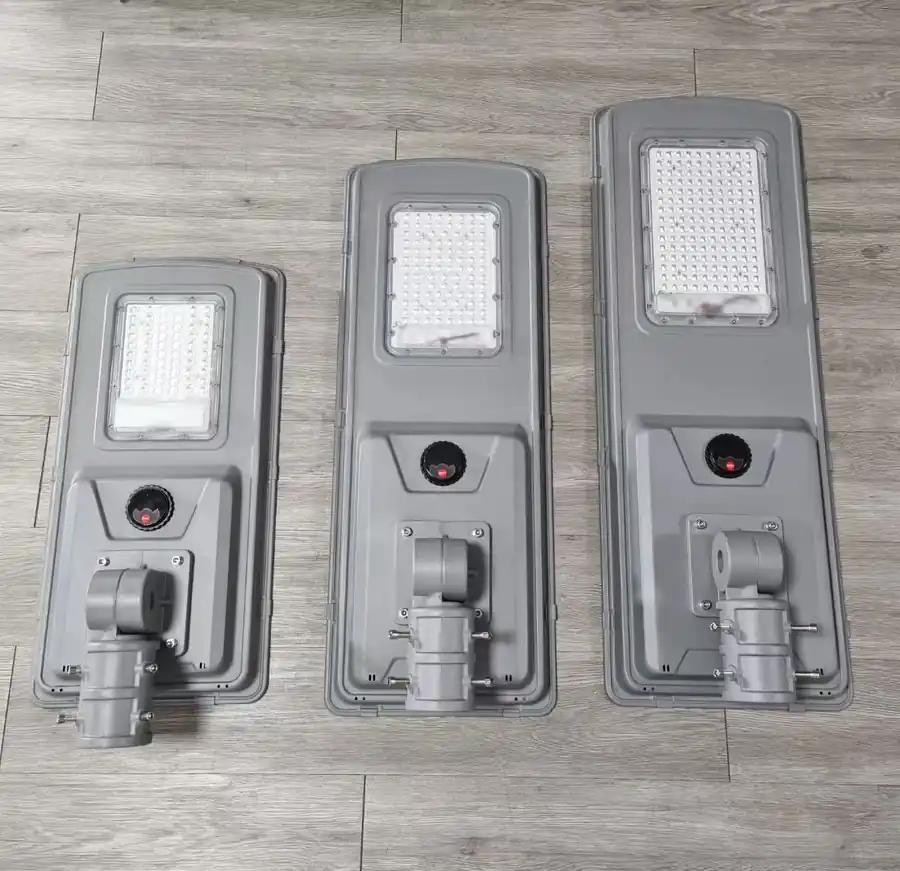

QH01-200, QH01-300 and QH01-400 share the same integrated optical-lens design but differ in body size, solar panel, battery and verified light output. Compare the technical table and match the model to the proposed mounting height and lighting area.
Panel and Battery in One Light Body

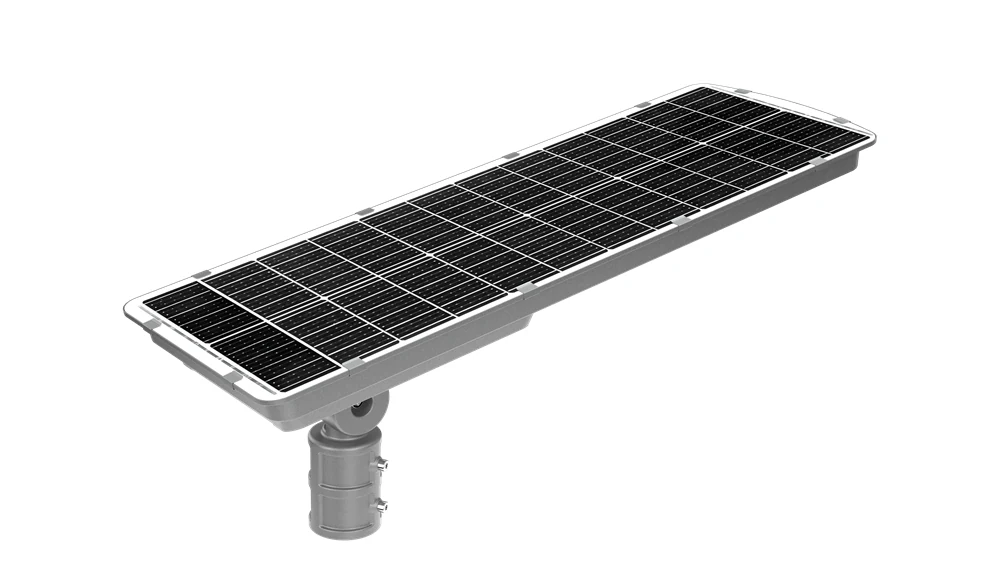

The QH01 housing combines the solar panel, LiFePO4 battery and LED module. The rear view shows the panel and bracket position. Compare panel and battery specifications by model; charging and operating time vary with sunlight, installation angle and lighting mode.
Lens Output and Bracket Options

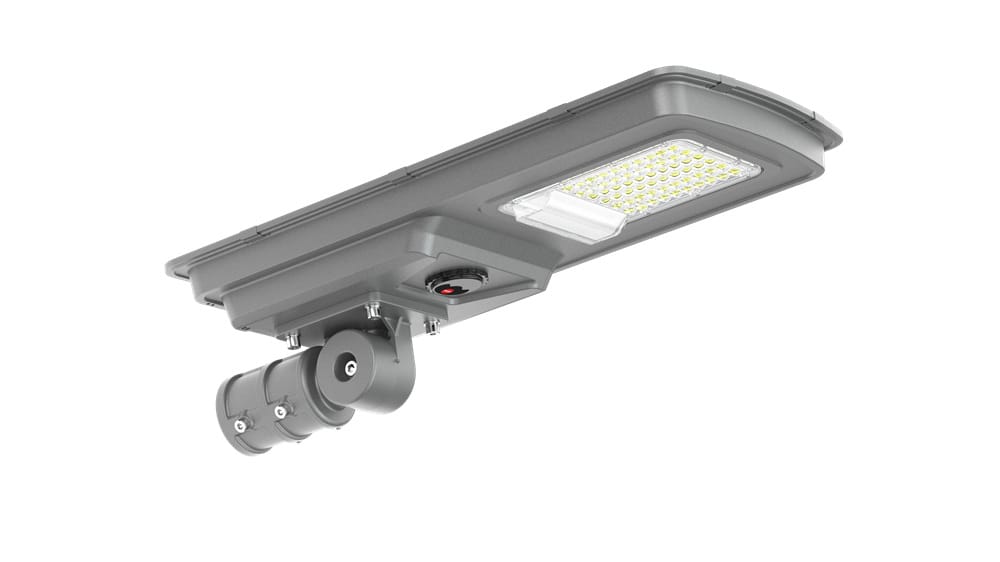

Use the optical-lens view to check the lamp form and the mounting interface. The QH01 source material lists horizontal and vertical bracket options for 60 mm or 76 mm pole or lamp-arm interfaces. Confirm the exact bracket and fixing hardware for the selected model in the quotation.
Request a QH01 Model Recommendation
Send NEWSKYPOWER your installation location, pole height, spacing, required lighting hours and order quantity. We can help compare QH01-200, QH01-300 and QH01-400 and prepare a quotation for the selected configuration.
They identify three product configurations. The corresponding rated lighting powers are 20W, 25W and 30W, with light outputs of 3200 lm, 4000 lm and 4800 lm. Use the technical table when comparing performance.
Yes. The QH01 specification lists constant lighting and radar motion-sensing modes with remote control. Select the operating mode for the site and available charging conditions.
Compare installation height, desired spacing, road or path width and nightly operating time. Send NEWSKYPOWER the location, layout and quantity so the model and mounting option can be reviewed together.
Its LiFePO4 battery stores solar energy for nighttime operation. The current catalogue lists up to 3 rainy days of backup as a reference. Actual operation depends on the charge level, lighting mode and local sunlight.
The QH01 source specification lists horizontal and vertical bracket options for 60 mm or 76 mm pole or lamp-arm interfaces. Confirm the selected bracket, pole diameter and included fixing hardware in the quotation before installation.
