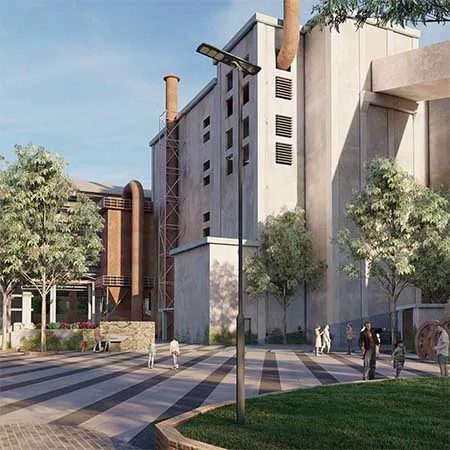

MJ-SSOC Series STARSHIP I All In One Solar Street Light

Model: MJ-SSO100C / MJ-SSO200C / MJ-SSO300C / MJ-SSO400C

Power: 100W/200W/300W/400W
POLY Solar panel
SMD5050 LED
LiFePO4 lithium battery
Die-casting aluminum+Teijin PC Lens
CCTV Camera
IP65 Waterproof
Remote contol
CE,ROHS

Summary
Technical Data
Details
Feature
Photos
Dimension
Top

MJ-SSOC Series STARSHIP I All In One Solar Street Light

Technical Data

Specificaton
Packing

Model	MJ-SSO100C	MJ-SSO200C	MJ-SSO300C	MJ-SSO400C
Rated power	100W	200W	300W	400W
Lumens	4500LM	6500LM	8500LM	12000LM
Solar panel	4V/60W	4V/75W	4V/90W	4V/110W
LiFePO4 battery	3.2V/70AH	3.2V/80AH	3.2V/105Ah	3.2V/150Ah
Install height	5-6M	6-7M	7-8M	8-9M
Spacing	15-18M	18-21M	21-24M	24-27M
CCTV Camera	1080P, 24Hours Monitoring, APP Control (TUYA platform)
Communication	WIFI or 4G
Material	Die-cast aluminum+Teijin PC Lens
Color temp.	6500K
Sensing distance	12M
Work temp.	-20℃ ~ +60℃
Pole diameter	76mm
Water proof	IP65
Charge time	6-8H
Lighting time	Light on at dusk, Light off at dawn auto. 12 hours lighting time per day, 3-5rainy days backup.

Lighting Mode

Power reduction in different modes

Modes	Model-On Time
Modes	1H	1H	2H	1H	6H	30mins Before morning
Sensor mode	100%	75%	60%	40%	40%	50%
3+X/4+X	100%	75%	60%	40%	40%	50%
AUTO mode	100%	75%	60%	40%	25%	40%

Remote Control

Multiple work modes

REMOTE CONTROLLER OF MJ-SSO

Model	MJ-SSO100C	MJ-SSO200C	MJ-SSO300C	MJ-SSO400C
QTY/CTN.	1PCS	1PCS	1PCS	1PCS
Carton G.W	9.5KG	11.3KG	14KG	15.8KG
Carton size (mm)	965200410	1155200410	1375200410	1705200410

Details of MJ-SSO Series All In One Solar Street Light

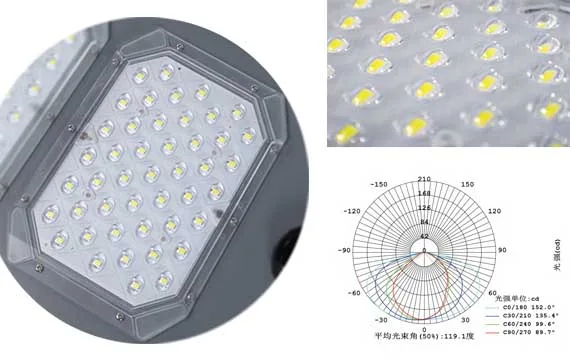

5050SMD

High Brightness with Optical Lens

High brightness 5050SMD LED bead with Teijin PC optical lens. low light decay, low heat, constant curren stability, prolong service life of the lamp.

The optical lens provide greater luminance uniformity. 150*70 Degree luminous Angle.

The lens can effectively gather the light to improve the brightness and reduce the light loss. The light efficiency is 20% increased than traditional reflective cup.

POLY

Solar Panel

Outstanding performance in Low-Light, High transparent, Unique & Advanced technology giving the panel good performance.

Ability to withstand High Wind-Pressure and Snow-Load, Advanced module sealing technology to eliminate leakage and frame deformation.

Aluminium frame with tempered glass and waterproof junction box.

Military quality system ensure 25 years power output warranty.

Die-casting Aluminum

Strong Lamp Body

Patented appearance design.

The lamp body is made of sturdy Die-casting aluminum, Sturdy and durable.

The Die-cast aluminium material is rust-free and can be used in coastal areas. Good heat dissipation can help LEDs work better.

32650

LiFePO4 Lithium Battery

Built-in high-capacity 32650 lithium iron phosphate battery, operating temperature -20 degrees to +60 degrees.

The circulation time is 2000 times, BSM over-charge and over-discharge protection.

Excellent safety and stability.

PWM

P-MOS Fast Charging

The solar controller has unique charge and discharge management system, PWM control P-MOS charging, Charge & discharge are more efficiency.

For example: 6V /30W solar panel is commonly used in the market, and the peak charging current is 5A, this model use 5V/30w,The charging peak current is 6A, the charging efficiency is increased by 20%.
