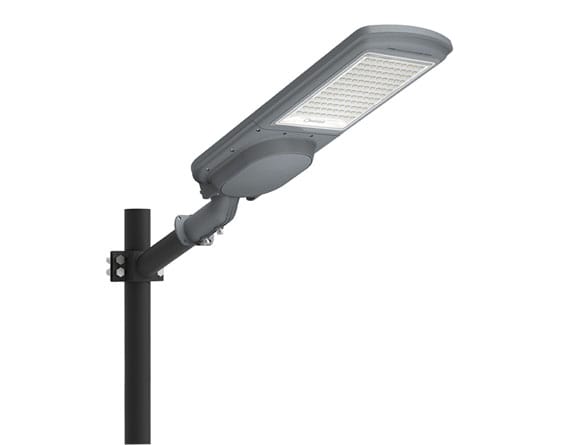

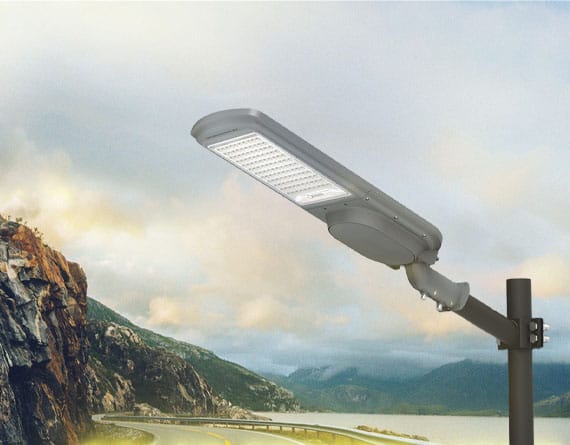

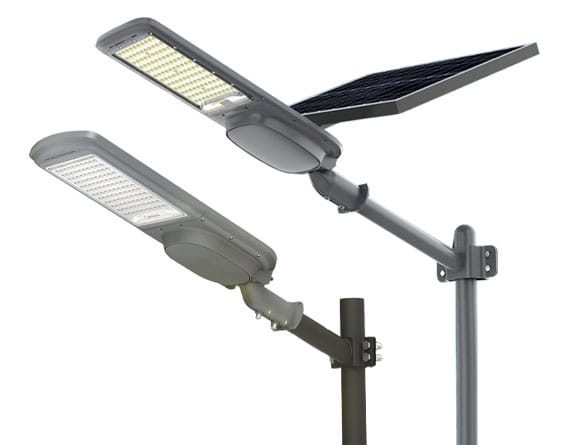

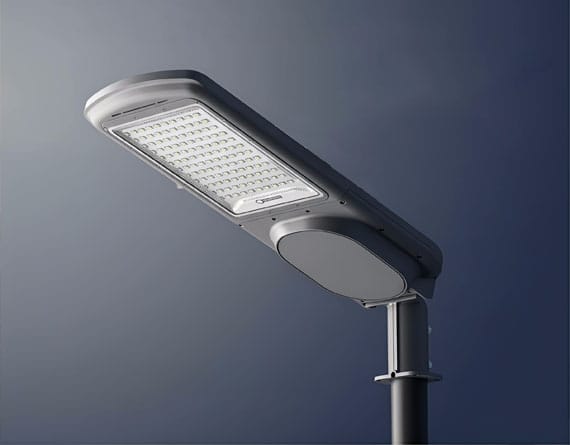

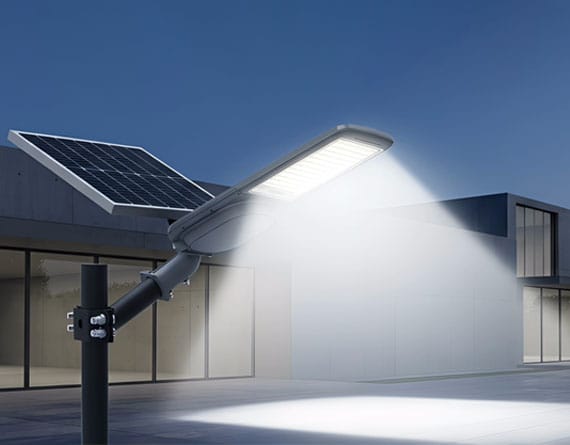

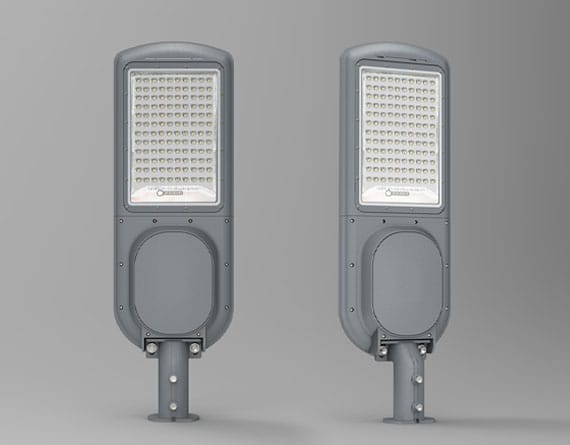

CD06 Series All In One Solar Street Light

Model: CD06-200W/ 300W / 400W / 500W

Power: 200W/300W/400W/500W
MONO Solar panel
SMD5054 LED
LiFePO4 lithium battery
Aluminum + PC Lens
IP66 Waterproof
Remote control
CE, ROHS

Summary
Technical Data
Details
Feature
Photos
Top

CD06 Series All In One Solar Street Light

The CD06 solar street light, following a major upgrade, now offers exceptional battery life. Equipped with a high-capacity LiFePO4 battery capable of over 2,000 charge cycles, it significantly extends the street light’s service life. With outstanding safety and stability, it provides you with eco-friendly and reliable power around the clock.

Technical Data of CD06 Solar Street Lights

Specificaton

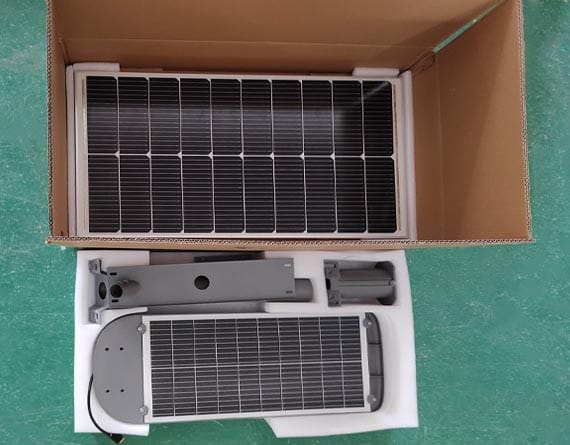

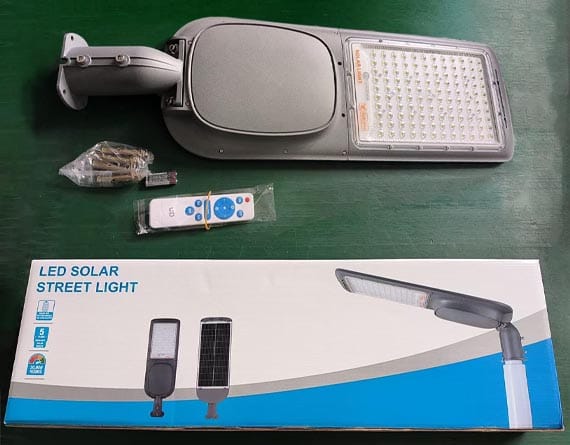

Packing

Model	CD06-200W	CD06-300W	CD06-400W	CD06-500W
Dimension	77.59.524cm	77.59.524cm	77.59.524cm	77.59.524cm
LED chips	120pcs, SMD5054	120pcs, SMD5054	120pcs, SMD5054	120pcs, SMD5054
Housing material	Alumium+pc
Battery type	LiFePO4, 2000 times cycle
Battery capacity	3.2V 15AH NEW BATTERY	3.2V 45AH NEW BATTERY	3.2V 54AH NEW BATTERY	3.2V 60AH NEW BATTERY
Solar panel	MONO 6V 20W	MONO 6V 50W	MONO 6V60W	MONO 6V 70W
Waterproof	IP66
Lighting efficiency	170lm/W
CCT.	6000-6500K
Controller	pwm
Lighting mode	Automatically lights up at dusk and lights off at dawn
Charging time & backup	Charging Time: 4-6 hours. Backup: 3-7 rainy days.
Warranty	3years

Model	CD06-200W	CD06-300W	CD06-400W	CD06-500W
Lamp Size(mm)	77.59.524	77.59.524	77.59.524	77.59.524
Carton Size(mm)	804626.5	70.54612	70.54612	74.54612.5
Qty/Ctns	4	1	1	1
Carton N.W/G.W(kgs)	16.8/19.7	7/8kg	8.5/9.1	9.6/10.2

Details of CD06 Series All In One Solar Street Light

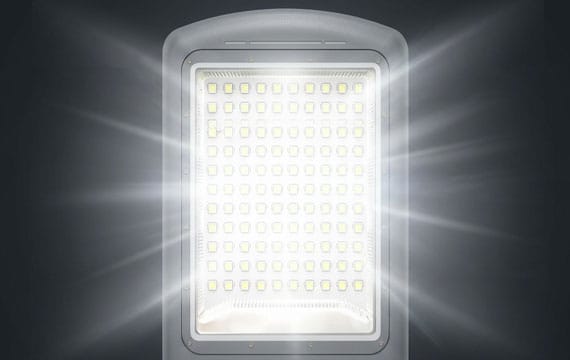

SMD5054

High Brightness with Optical Lens

Equipped with advanced SMD5054 LED chips, the CD06 Series Solar Street Light delivers high brightness and exceptional efficiency.

These chips provide a wide lighting range with sufficient, well-distributed illumination, ensuring superior visibility and reliable performance for expansive outdoor areas.

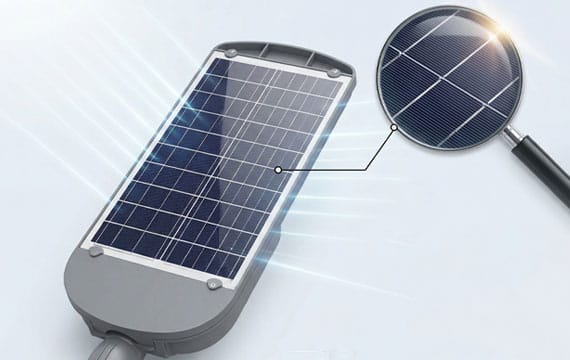

MONO

Solar Panel

SS Series Solar Street Lights are equipped with high-efficiency monocrystalline silicon solar cells, which achieve a 23% conversion rate. The panel is protected by 3.2mm high-transmittance tempered glass and sealed with EVA material to ensure stable performance and durability.

Designed for long-term use, these solar street lights have a service life of up to 25 years. This makes them a reliable and sustainable lighting solution suitable for various outdoor applications, thanks to their durable construction and consistent energy efficiency.

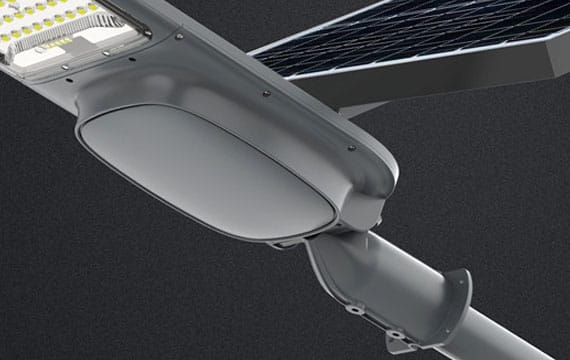

Die-casting Aluminum

Lamp Body

This rugged enclosure is constructed of thickened, single-piece die-cast aluminum for superior strength and long-lasting durability. The corrosion-resistant material eliminates rust problems while providing excellent thermal management for efficient heat dissipation.

In addition, its IP65 waterproof rating ensures reliable protection against dust and low-pressure water jets, ensuring consistent performance in demanding environments.

32700

LiFePO4 Lithium Battery

In order to ensure top quality for outdoor lighting/government project,the lamp is equipped with brand new A grade LiFePO4 battery with 4000 times cycle life. After 4000 times cycles, battery still keep 80% capacity.

We has developed an smart power management system in cooperation with the University of Electronic Science and Technology to make sure our product has higher charging efficiency, and can independently adjust the capacity to achieve a better rainy day efficiency.

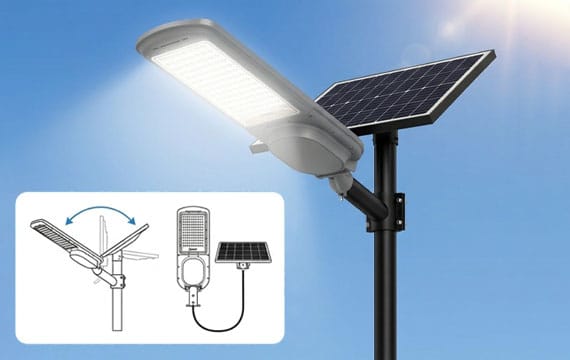

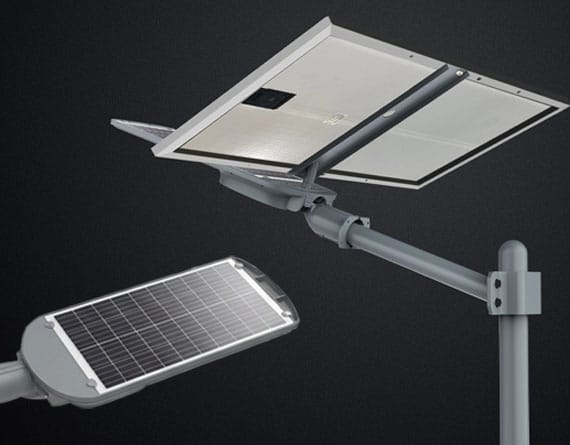

180° Adjustable Angle

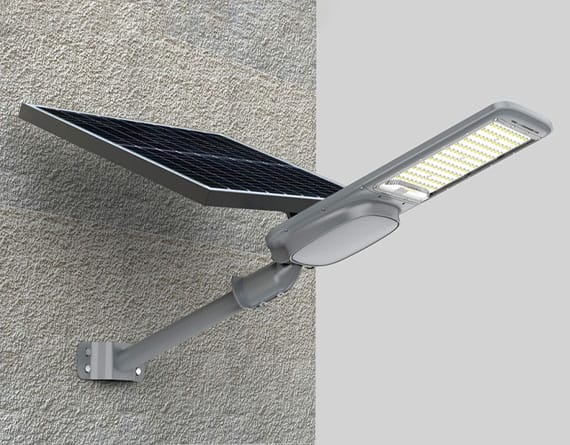

Convenient installation

All-in-one solar light means the solar panel is embedded into the lamp body. This design eliminates complex installation accessories such as brackets; no need to install the lamp and solar panel separately, which is very convenient for outdoor installation.

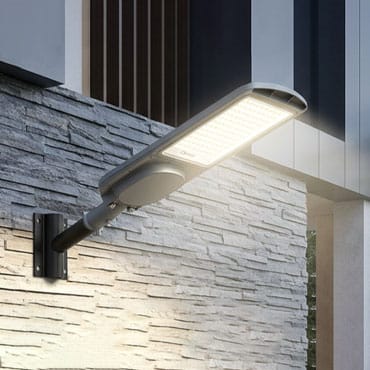

Specially designed pole mounting bracket with adjustable tilt angles of 180°, which can also be used in post top & lateral mounting positions.
