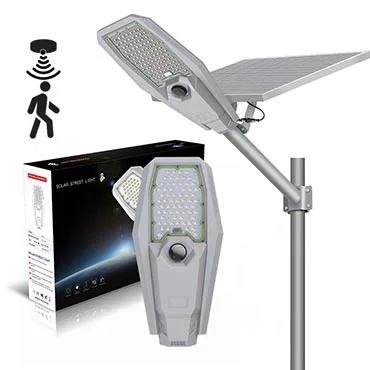

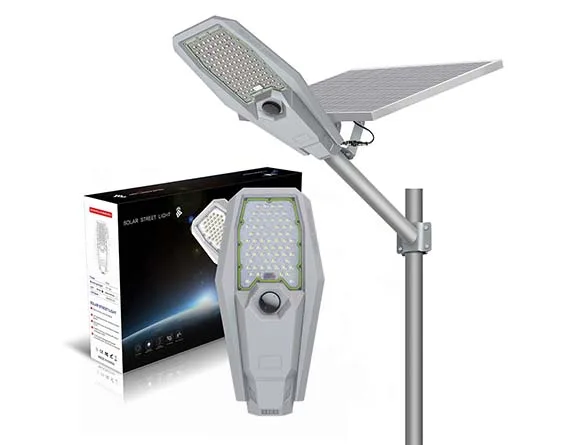

Interstellar Warrior II All In Two Split Solar Street Light MJ-XJ9

Model: MJ-XJ902 / MJ-XJ903 / MJ-XJ904/ MJ-XJ906

Power: 200W/300W/400W/600W
POLY Solar panel
SMD5050 LED
LiFePO4 lithium battery
Die-casting aluminum lamp body
Radar motion sensor
IP65 Waterproof
Remote contol
CE,ROHS

Summary
Technical Data
Details
Feature
Photos

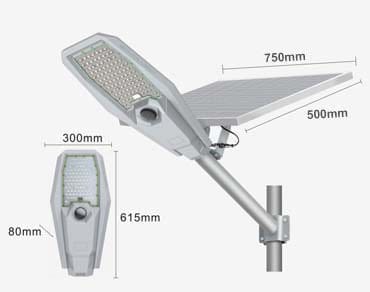

Dimension
Top

Interstellar Warrior II All In Two Split Solar Street Light MJ-XJ9

Technical Data

Specificaton
Packing

Model	MJ-XJ902	MJ-XJ903	MJ-XJ904	MJ-XJ906
Rated power	200W	300W	400W	600W
LED bead	64pcs,SMD5050	64pcs,SMD5050	90pcs,SMD5050	90pcs,SMD5050
Lumens	1550LM	2620LM	3100LM	3627LM
Solar panel	25W/5V	35W/5V	40W/5V	50W/5V
LiFePO4 battery	18000mAh/3.2V	30000mAh/3.2V	36000mAh/3.2V	48000mAh/3.2V
Mounting height	3-4M	3-5M	4-6M	5-7M
Radar motion sensor	Available
Color temp.	6500K
Material	Die-casting Aluminum
Water proof	IP65
Charge time	6-8H
Lighting time	Light on at dusk, Light off at dawn auto. 12 hours lighting time per day, 2-3 rainy days backup.

Lighting Mode

Intelligent automatic power reduction

Model	0.5H	0.5-2H	2-4H	5H	5H to morning
Auto mode	100-80%	80-60%	60-50%	50-40%	40-25%
3+X/4+X	100-80%	80-60%	60-50%	50-40%	40-25%
Radar Mode	130-100%	100-80%	80-65%	65-40%	40%

Remote Control

Multiple work modes

REMOTE CONTROLLER MJ-XJ9

Model	MJ-XJ902	MJ-XJ903	MJ-X904	MJ-XJ906
Gift box (mm)	580405130	630405130	700425130	715510140
QTY/CTN.	4PCS	4PCS	3PCS	2PCS
Carton G.W	23.1KG	25.7KG	22.2KG	17.9KG
Carton size (mm)	590420550	640420550	715410440	730300520

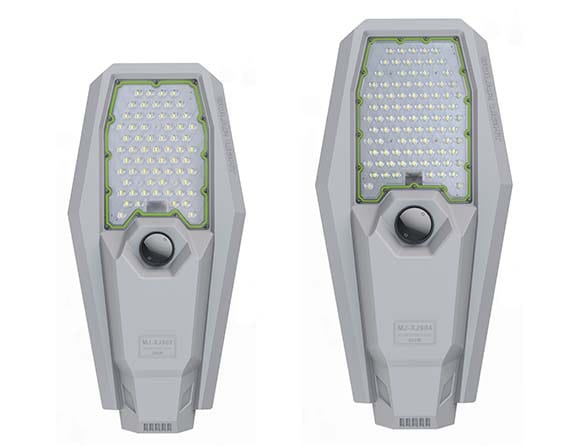

Details of MJ-XJ9 Series All In Two Solar Street Light

5050SMD

High Brightness with Optical Lens

High brightness5050SMD LED bead with PC optical lens. low light decay, low heat, constant curren stability, prolong service life of the lamp.

The optical lens provide greater luminance uniformity. 150*70 Degree luminous Angle.

The lens can effectively gather the light to improve the brightness and reduce the light loss. The light efficiency is 20% increased than traditional reflective cup.

POLY

Solar Panel

Outstanding performance in Low-Light, High transparent, Unique & Advanced technology giving the panel good performance.

Ability to withstand High Wind-Pressure and Snow-Load, Advanced module sealing technology to eliminate leakage and frame deformation.

Aluminium frame with tempered glass and waterproof junction box.

Military quality system ensure 25 years power output warranty.

Die-casting Aluminum

Strong Lamp Body

Patented appearance design.

The lamp body is made of sturdy Die-casting aluminum, Sturdy and durable.

The Die-cast aluminium material is rust-free and can be used in coastal areas. Good heat dissipation can help LEDs work better.

32650

LiFePO4 Lithium Battery

Built-in high-capacity 32650 lithium iron phosphate battery, operating temperature -20 degrees to +60 degrees.

The circulation time is 2000 times, BSM over-charge and over-discharge protection.

Excellent safety and stability.

PWM

P-MOS Fast Charging

The solar controller has unique charge and discharge management system, PWM control P-MOS charging, Charge & discharge are more efficiency.

For example: 6V /30W solar panel is commonly used in the market, and the peak charging current is 5A, this model use 5V/30w,The charging peak current is 6A, the charging efficiency is increased by 20%.
