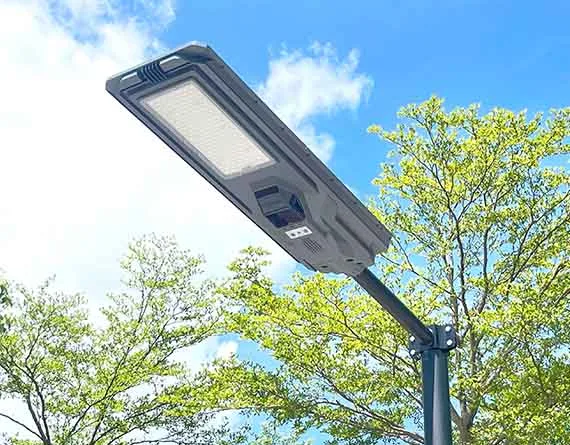

MJ-SSTH STARSHIP III All In One Solar Street Light

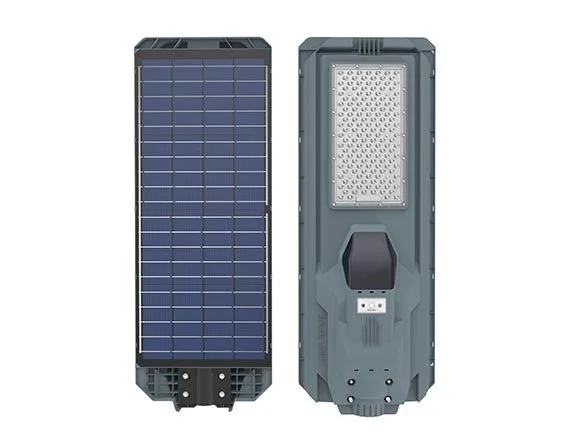

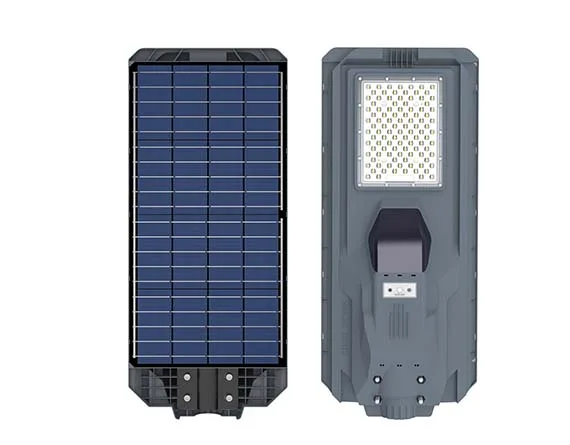

Model: MJ-SSTH800 / MJ-SSTH1200
- Power: 800W/1200W
- POLY Solar panel
- SMD3030 LED
- LiFePO4 lithium battery
- ABS+Teijin PC Lens
- IP65 Waterproof
- Remote contol
- CE,ROHS
MJ-SSTH STARSHIP III All In One Solar Street Light
Technical Data
- Specificaton
- Packing
| Model | MJ-SSTH800 | MJ-SSTH1200 |
| Rated power | 800W | 1200W |
| LED bead | 104pcs,3030 | 154pcs,3030 |
| Lumens | 2400LM | 3600LM |
| Solar panel | 28W/4V | 35W/4V |
| LiFePO4 battery | 24000mAh/3.2V | 36000mAh/3.2V |
| Mounting height | 4-5Meters | |
| Color temp. | 6500K | |
| Material | ABS | |
| Water proof | IP65 | |
| Charge time | 6-8H | |
| Work time | 12 hours lighting time per day, 4-5rainy days backup. | |
| Lighting mode | Light on at dusk, Light off at dawn Auto.
4work modes. |
|
Lighting Mode
Intelligent automatic Power reduction
| Modes | 1H | 2-3H | 4-5H | 6H | 6H to morning |
| Auto model | 100%-80% | 80%-60% | 60%-50% | 50%-40% | 30% |
| 2+X/3+X | 100%-80% | 80%-60% | 60%-50% | 50%-40% | 30% |
| Always model | 100%-80% | 80%-60% | 60%-50% | 50%-40% | 30% |
Remote Control
Multiple work modes
| Model | MJ-SSTH800 | MJ-SSTH1200 |
| Gift box (mm) | 305*88*705 | 305*85*825 |
| QTY/CTN. | 5 | 4 |
| Carton G.W | 18KG | 18KG |
| Carton size (mm) | 710*455*320 | 835*365*320 |
Details of MJ-SSTH Series All In One Solar Street Light
High Brightness with Optical Lens
High brightness 3030SMD LED bead with Teijin PC optical lens. low light decay, low heat, constant curren stability, prolong service life of the lamp.
The Teijin PC lens provide greater luminance uniformity. 150*70 Degree luminous Angle.
The lens can effectively gather the light to improve the brightness and reduce the light loss. The light efficiency is 20% increased than traditional reflective cup.

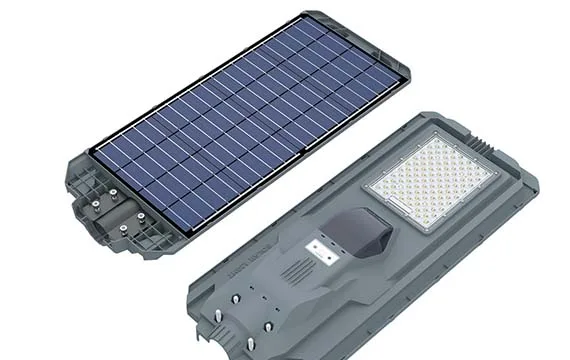

Solar Panel
Outstanding performance in Low-Light, High transparent, Unique & Advanced technology giving the panel good performance.
Ability to withstand High Wind-Pressure and Snow-Load, Advanced module sealing technology to eliminate leakage and frame deformation.
Aluminium frame with tempered glass and waterproof junction box.
Military quality system ensure 25 years power output warranty.
LiFePO4 Lithium Battery
Built-in high-capacity 32650 lithium iron phosphate battery, operating temperature -20 degrees to +60 degrees.
The circulation time is 2000 times, BSM over-charge and over-discharge protection.
Excellent safety and stability.
P-MOS Fast Charging
The solar controller has unique charge and discharge management system, PWM control P-MOS charging, Charge & discharge are more efficiency.
For example: 6V /30W solar panel is commonly used in the market, and the peak charging current is 5A, this model use 5V/30w,The charging peak current is 6A, the charging efficiency is increased by 20%.
Features of MJ-SSTH Series All In One Solar Street Light

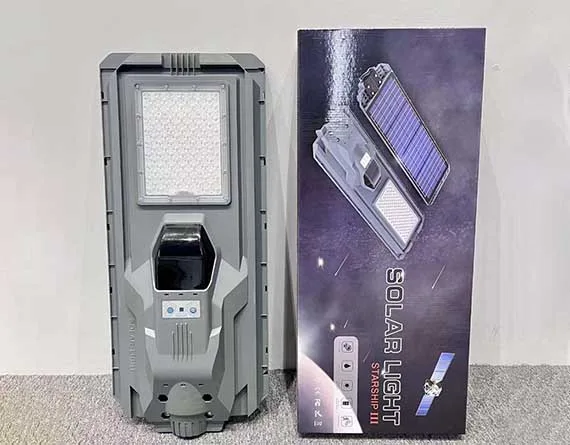

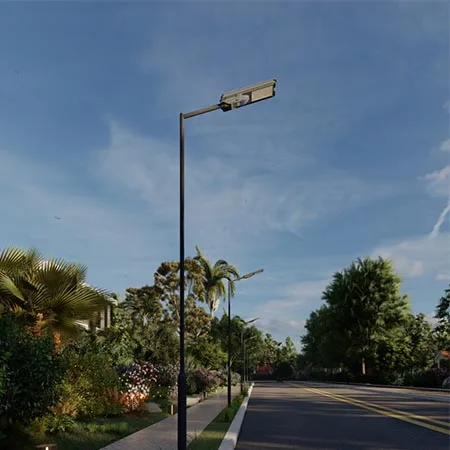

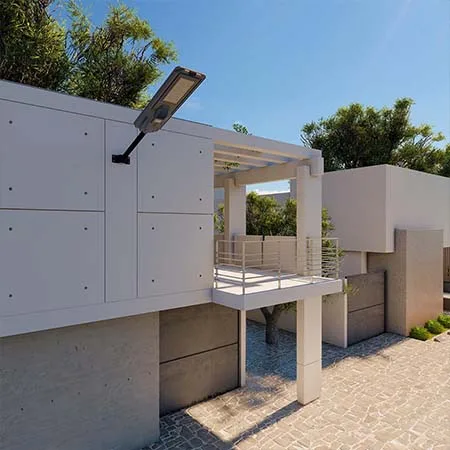

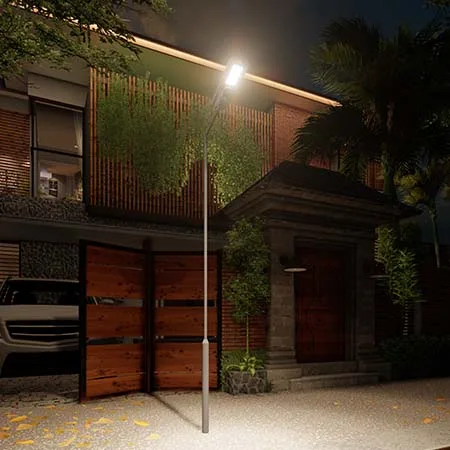

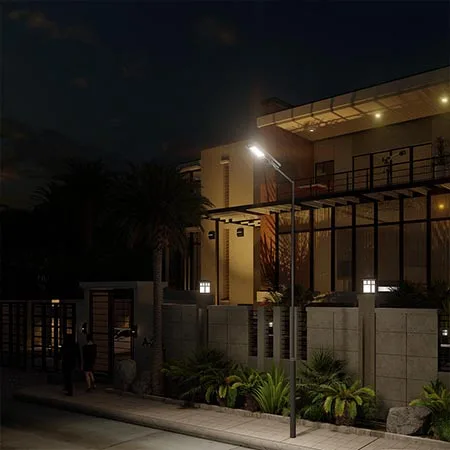

Photos of MJ-SSTH Series All In One Solar Street Light
- Photos
Dimension of SSTH All In One Solar Street Light (2)
Intelligent Power Management System
Meet the customer’s “365 days, daily brightness” demand.
Customized Your Logo on Product & Packages
Related Products (24)
The lighting time is 12hours per day, dusk to dawn auto working, 2-3 rainy days backup.
6-8 Hours.
The recommend diameter of pole is 76mm, the diameter range is 60~100mm.
The battery lifetime is 4-5 years. After expiration, replacing the battery can continue to use.
There are 3500K and 6000K CCT. for choice.
The lens will not turn yellow and brittle within 5 years, it is made of PC (Japanese emperor) material, working temperaturer is -40℃ ~ +125℃.
500PCS.
Sample order is 3-5days, 20′ Container is 15days, 40′ Container is 20days.
Yes, pole is optional.
The warranty is 2 Years.
