LKA Series Heavy‑Duty Outdoor Solar Street Light
Model: LKA-80W/100W/120W/150W
- Power: 80W/100W/120W/150W
- MONO Solar panel
- SMD5050 LED
- LiFePO4 lithium battery
- Die casting Aluminum + PMMA
- IP66 Waterproof
- CE, ROHS

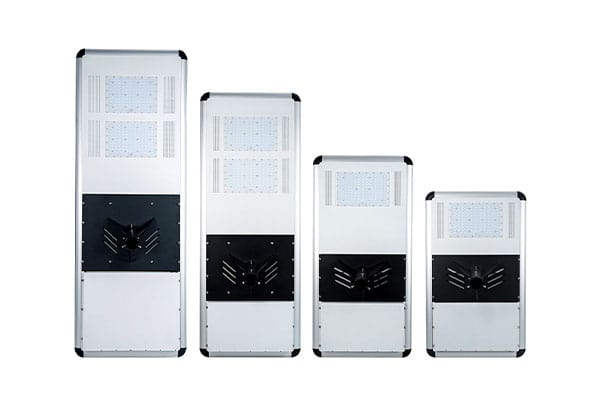

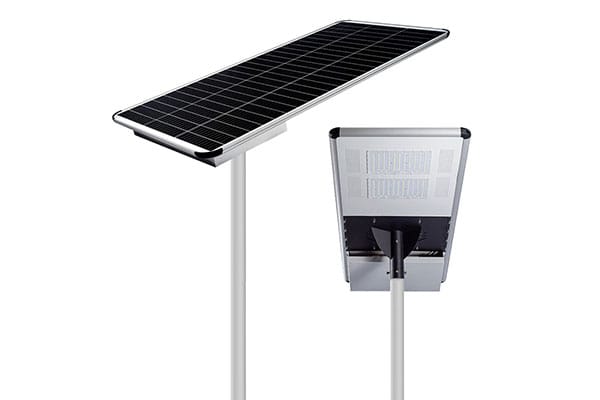

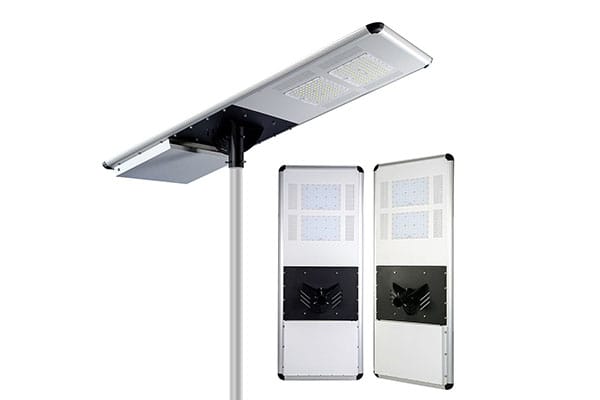

LKA Series Outdoor Solar Street Light

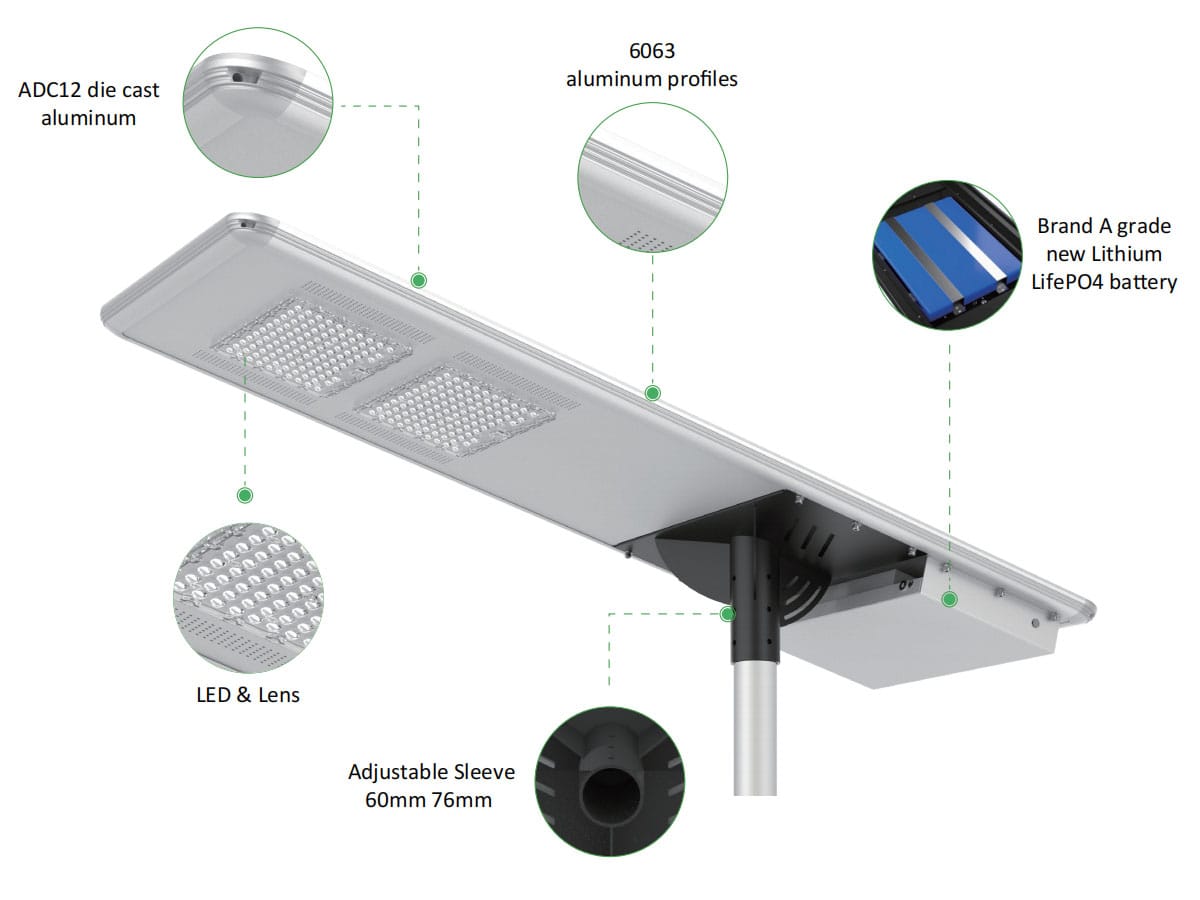

Engineered for tough outdoor environments, the LKA Series Solar Street Light comes with heavy‑duty ADC12 die‑cast aluminum construction. Its mono solar panel and integrated MPPT controller enable rapid 4‑6‑hour charging. Fitted with high‑performance SMD5050 LED chips, it provides consistently bright lighting. Backed by an A‑grade new Lithium LiFePO4 battery with 2,500+ charge cycles and a 6‑8‑year lifespan, this unit ensures long‑lasting, low‑cost outdoor lighting with minimal upkeep.

Technical Data of LKA Series Outdoor Solar Street Lights
- Specificaton
| Model | LKA-80W | LKA-100W | LKA-120W | LKA-150W |
| Power | 80W | 100W | 120W | 150W |
| Solar Panel | 18V/150W Mono 1130*679*4mm | 36V/180W Mono 1370*679*4mm | 36V/240W Mono 1790*679*4mm | 36V/300W Mono 1940*770*4mm |
| Battery | LiFePO4, 12.8V/60AH(768wh) | LiFePO4, 25.6V/45AH(1152wh) | LiFePO4, 25.6V/60AH(1536wh) | LiFePO4, 25.6V/75AH(1920wh) |
| LED | SMD5050,105PCS | SMD5050,105PCS | SMD5050,210PCS | SMD5050,210PCS |
| Product Size | 1135*686*280mm | 1375*686*280mm | 1795*686*280mm | 1945*778*280mm |
| Lighting Mode (Optional) | Intelligent control + segmented time control | |||
| Material | Die casting Aluminum + PMMA | |||
| Efficacy | 220LM/W | |||
| Conversion Efficiency (solar panel ) | 23.8% | |||
| Luminous Flux | 1760OLM | 22000LM | 26400LM | 33000LM |
| Controller | MPPT optional | |||
| Light Angle | 75*155°/ transmittance: >95% | |||
| Temperature | O-55°℃ | |||
| Discharge time | 3-5 rainy days | |||
| Installation Height | 8-10m | 10-12m | 12-14m | 14-18m |
