STARSHIP III MJ-SSTH All In One Solar Street Light

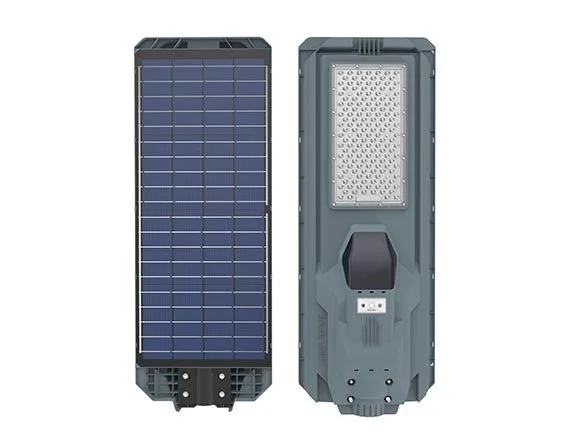

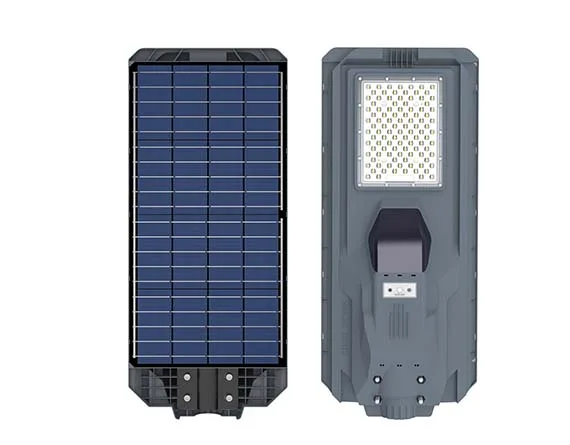

Model: MJ-SSTH800 / MJ-SSTH1200
- Power: 800W/1200W
- MONO Solar panel
- SMD3030 LED
- LiFePO4 lithium battery
- ABS+Teijin PC Lens
- IP65 Waterproof
- Remote control
- CE, ROHS
STARSHIP III MJ-SSTH All In One Solar Street Light
STARSHIP III MJ-SSTH Series Solar Street Light with Radar Sensor is a new integrated solar street light designed inspired by starships. Super bright LED chip with optical lens, large capacity LiFePO4 battery. Multiple working modes with remote control.

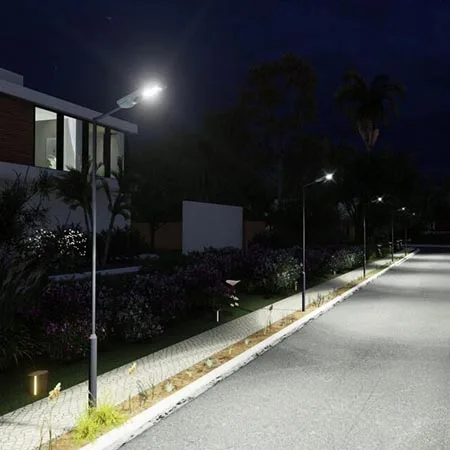

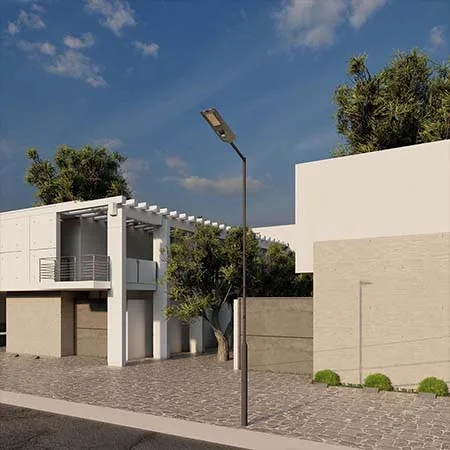

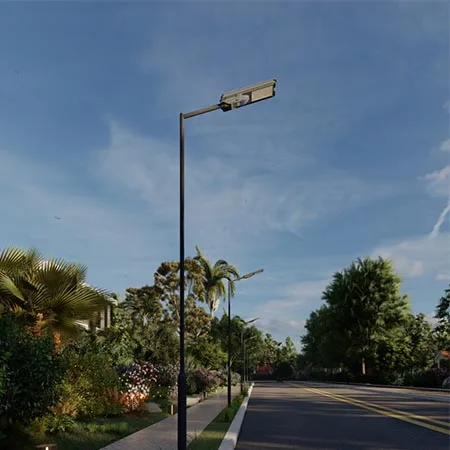

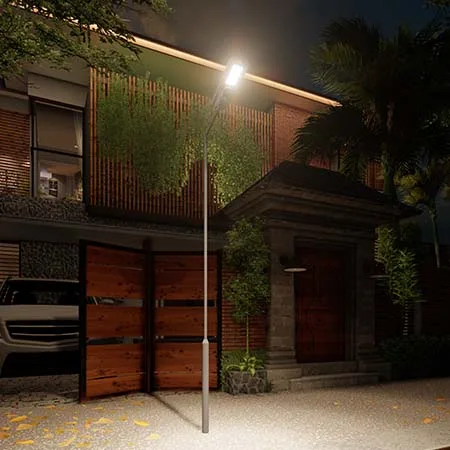

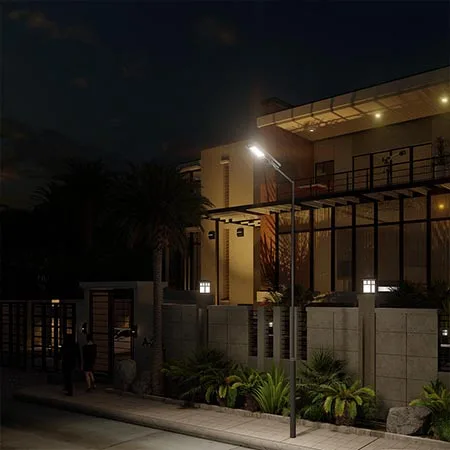

There are two mounting options for wall and pole mounting. It can be widely used in communities, parks, streets, etc.
Technical Data
- Specificaton
- Packing
| Model | MJ-SSTH800 | MJ-SSTH1200 |
| Rated power | 800W | 1200W |
| LED bead | 104pcs,3030 | 154pcs,3030 |
| Lumens | 2400LM | 3600LM |
| Solar panel | 30W/4V | 40W/4V |
| LiFePO4 battery | 30AH/3.2V | 45AH/3.2V |
| Mounting height | 4-5Meters | |
| Color temp. | 6500K | |
| Material | ABS | |
| Water proof | IP65 | |
| Charge time | 6-8H | |
| Work time | 12 hours lighting time per day, 4-5rainy days backup. | |
| Lighting mode | Light on at dusk, Light off at dawn Auto. 4work modes. | |
Lighting Mode
Intelligent automatic Power reduction
| Modes | 1H | 2-3H | 4-5H | 6H | 6H to morning |
| Auto model | 100%-80% | 80%-60% | 60%-50% | 50%-40% | 30% |
| 2+X/3+X | 100%-80% | 80%-60% | 60%-50% | 50%-40% | 30% |
| Always model | 100%-80% | 80%-60% | 60%-50% | 50%-40% | 30% |
How to Install STARSHIP III MJ-SSTH Solar Street Light?
| Model | MJ-SSTH800 | MJ-SSTH1200 |
| Gift box (mm) | 305*88*705 | 305*85*825 |
| QTY/CTN. | 5 | 4 |
| Carton G.W | 18KG | 18KG |
| Carton size (mm) | 710*455*320 | 835*365*320 |
Details of MJ-SSTH Series All In One Solar Street Light
High Brightness with Optical Lens
High brightness 3030SMD LED bead with Teijin PC optical lens.
Low light decay, low heat, constant current stability, prolonged service life of the lamp.
150*70 degree luminous angle.

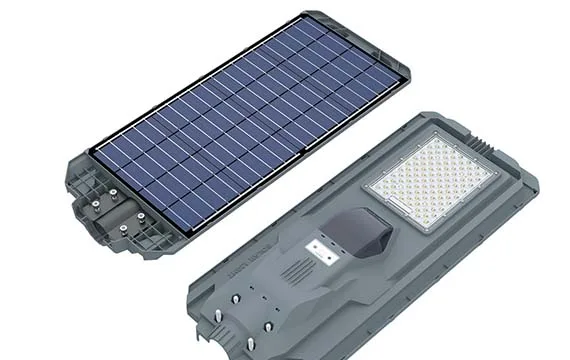

Solar Panel
DC4V Fast charging technology.
Service life of more than 15 years.
Removable design.
Motion Sensor
High sensitivity.
Unaffected by ambient temperature.
12 meters sensing distance.
Lithium Battery
Lithium iron phosphate battery.
BSM over-charge and over-discharge protection.
Excellent safety and stability.
Features of MJ-SSTH Series All In One Solar Street Light

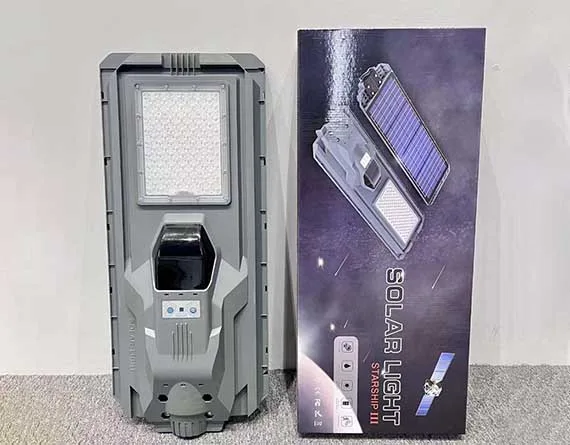

Photos of MJ-SSTH Series All In One Solar Street Light
- Photos
Dimension of MJ-SSTH Series All In One Solar Street Light (2)

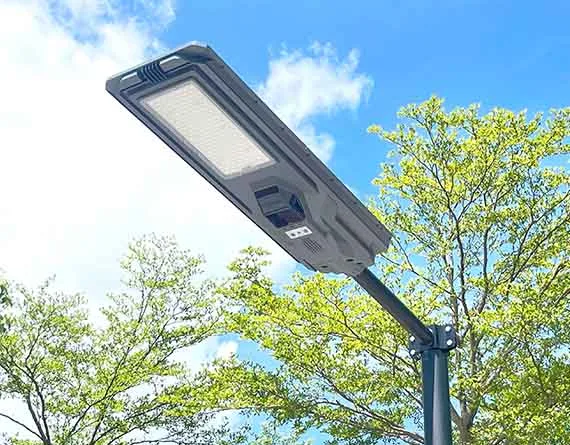

Two Mounting Options

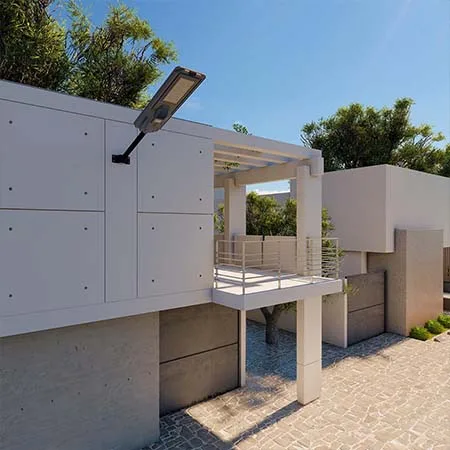

Wall Mounting and Pole Mounting. Two mounting ways to meet different installation needs.
Customized Your Logo on Product & Packages

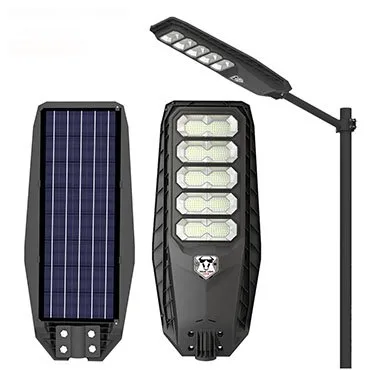

Related Products (26)
There are 3500K and 6500K CCT. for choice.
500PCS.
Yes, pole is optional.
The warranty is 2 Years.
