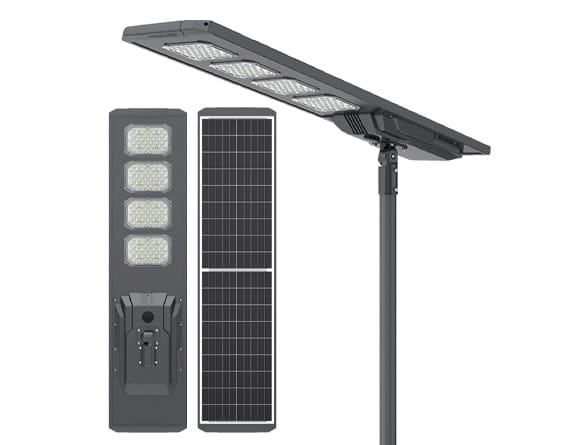

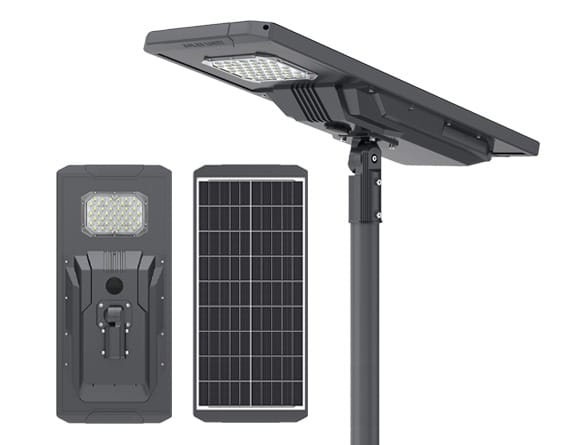

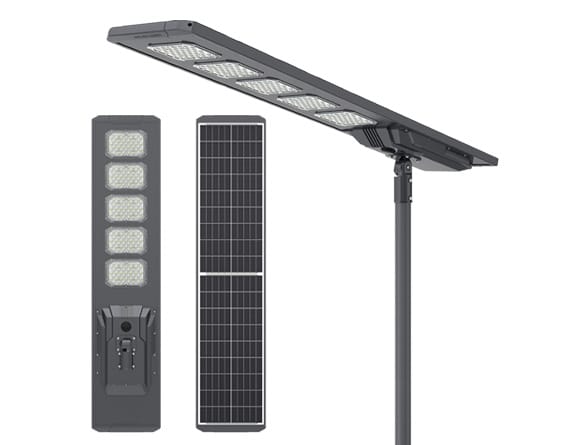

SSP Series All In One Industrial Solar Street Light

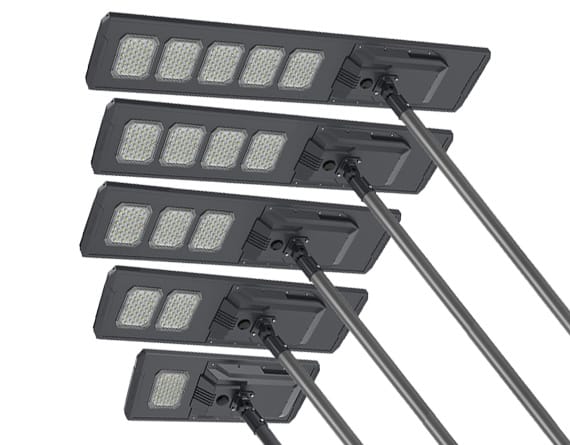

Model: SSP-40W/SSP-60W/SSP-80W/SSP-100W/SSP-120W
- Power: 40W/60W/80W/100W/120W
- MONO Solar panel
- SMD5050 LED
- LiFePO4 lithium battery
- Die-casting aluminum+Teijin PC Lens
- IP65 Waterproof
- Remote control
- CE, ROHS
SSP Series All In One Industrial Solar Street Light
The SSP series is a newly designed all-in-one solar street light. The outlook of this product is designed by our company’s product visual design team, and is our patent product. Product design concept keeps with the”outer space family” design element, mixed with the inspiration from “SMART LIGHITNG”, coming out with a unique industrial design in the market. While providing lighting also brings a brand-new visual impact to users, it also offers a great user experience.
Integrating power, intelligence, and durability, the SSP Series offers a complete solar lighting solution. Its robust construction features a double-sided MONO solar panel and a durable LiFePO4 battery pack, ensuring rapid energy capture and extended runtime. The light operates intelligently from dusk to dawn, providing bright, maintenance-free lighting with a streamlined installation process perfect for streets and pathways.
Technical Data of SSP Industrial Solar Street Lights
- Specificaton
- Packing
| Model | SSP-40W | SSP-60W | SSP-80W | SSP-100W | SSP-120W | |
| Rated Power | 40W | 60W | 80W | 100W | 120W | |
| LED Chip | 45pcs,SMD5050 | 90pcs,SMD5050 | 135pcs,SMD5050 | 180pcs,SMD5050 | 225pcs,SMD5050 | |
| LiFePo4 Battery | 12.8V/25Ah | 12.8V/30Ah | 12.8V/30Ah | 12.8V/45Ah | 12.8V/60Ah | |
| Solar Panel | 18V/65W | 18V/85W | 18V/110W | 18V/125W | 18V/140W | |
| Discharge Current | 8A | 10A | 12A | 16A | 20A | |
| Luminous | 6400lm | 9600lm | 12800lm | 16000lm | 19200lm | |
| Installation Height | 5-6m | 6-7m | 7-8m | 8-10m | 9-11m | |
| Distance Between Each | 15-18m | 18-21m | 21-24m | 24-30m | 27-33m | |
| Pole Size | 60/76mm | |||||
| CCT | 6500K | |||||
| Radar Sensor | Optional | |||||
| Product Features | Optical+Remote Control | |||||
| IP Rank | IP65 | |||||
| Charging Time | Effective sunshine 4-6H | |||||
| Discharge Time | 3-5 rainy & cloudy days | |||||
| Material | Die-casting Aluminium +Teijin PC | |||||
| Model | SSP-40W | SSP-60W | SSP-80W | SSP-100W | SSP-120W | |
| Solar Panel Size(mm) | 398*830 | 398*1050 | 398*1360 | 398*1565 | 398*1750 | |
| Lamp Size(mm) | 910*400*102 | 1130*400*102 | 1440*400*102 | 1645*400*102 | 1830*400*102 | |
| Carton Size(mm) | 1080*455*132 | 1290*455*132 | 1610*455*132 | 1805*455*132 | 1990*455*132 | |
| Qty/Ctns | 1 | 1 | 1 | 1 | 1 | |
| Carton N.W./G.W.(kgs) | 8.47/9.54 | 11.13/12.41 | 12.36/13.9 | 14.58/16.12 | 16.33/18.21 | |
Details of SSP Series All In One Industrial Solar Smart Street Light

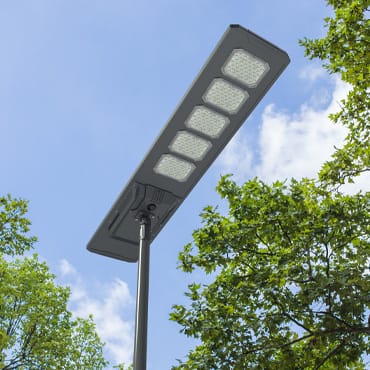

High Brightness with Optical Lens
SSP Series Solar Street Light adopts LED optical lens design, which can effectively concentrate light, enhance brightness and reduce light loss, and increase light efficiency by more than 20% compared with traditional lamps.
The lens uses high transmittance PC material (91% transmittance), much higher than glass (80%), so that the overall luminous efficacy increased by 30%, and the irradiation area increased by more than 25%.
Solar Panel
SSP Series Solar Street Lights are equipped with high-efficiency monocrystalline silicon solar cells, which achieve a 23% conversion rate. The panel is protected by 3.2mm high-transmittance tempered glass and sealed with EVA material to ensure stable performance and durability.
Designed for long-term use, these solar street lights have a service life of up to 25 years. This makes them a reliable and sustainable lighting solution suitable for various outdoor applications, thanks to their durable construction and consistent energy efficiency.
Lamp Body
This rugged enclosure is constructed of thickened, single-piece die-cast aluminum for superior strength and long-lasting durability. The corrosion-resistant material eliminates rust problems while providing excellent thermal management for efficient heat dissipation.
In addition, its IP65 waterproof rating ensures reliable protection against dust and low-pressure water jets, ensuring consistent performance in demanding environments.
LiFePO4 Lithium Battery
In order to ensure top quality for outdoor lighting/government project,the lamp is equipped with brand new A grade LiFePO4 battery with 4000 times cycle life. After 4000 times cycles, battery still keep 80% capacity.
We has developed an smart power management system in cooperation with the University of Electronic Science and Technology to make sure our product has higher charging efficiency, and can independently adjust the capacity to achieve a better rainy day efficiency.

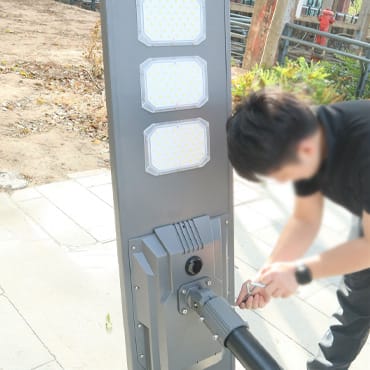

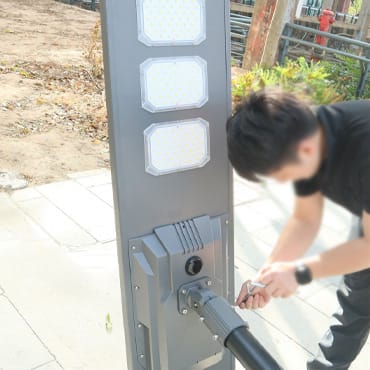

Convenient installation
All-in-one solar light means the solar panel is embedded into the lamp body. This design eliminates complex installation accessories such as brackets; no need to install the lamp and solar panel separately, which is very convenient for outdoor installation.
Specially designed pole mounting bracket with adjustable tilt angles of 180°, which can also be used in post top & lateral mounting positions.
Features of SSP Series All In One Industrial Solar Street Light

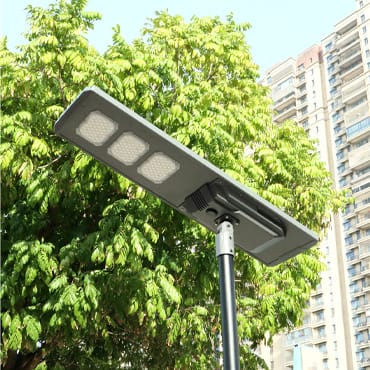

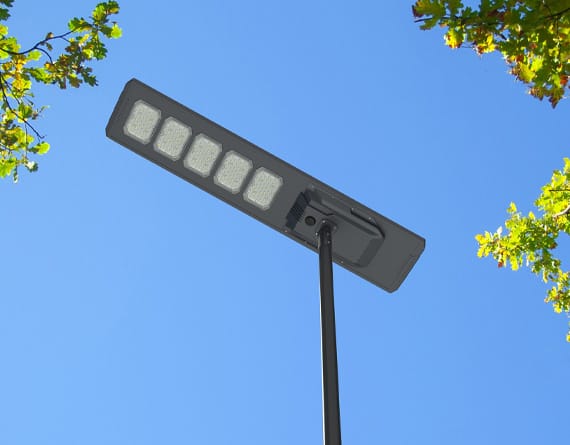

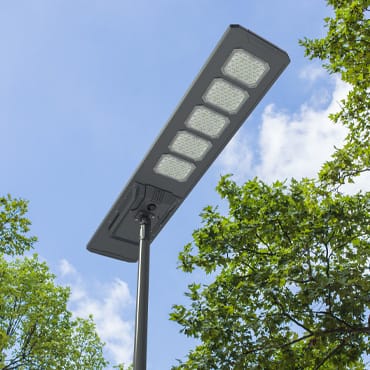

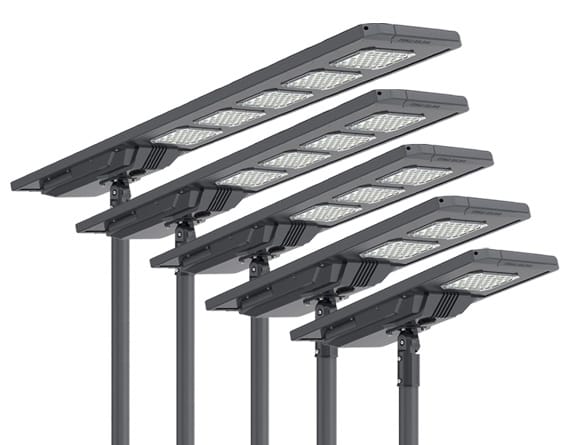

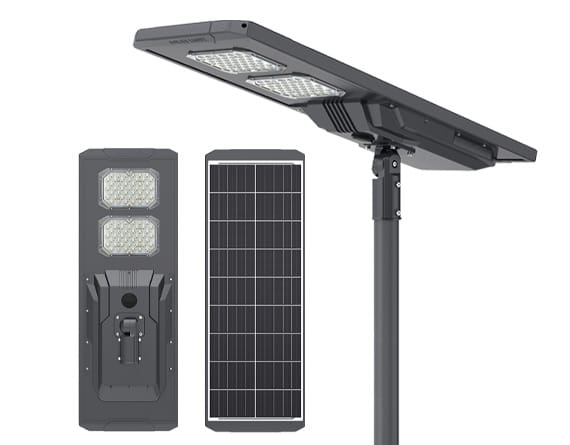

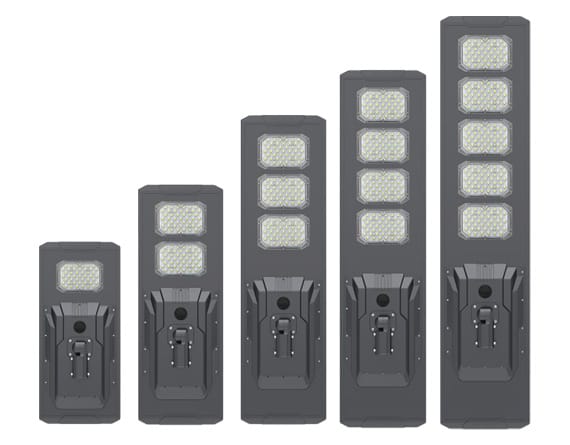

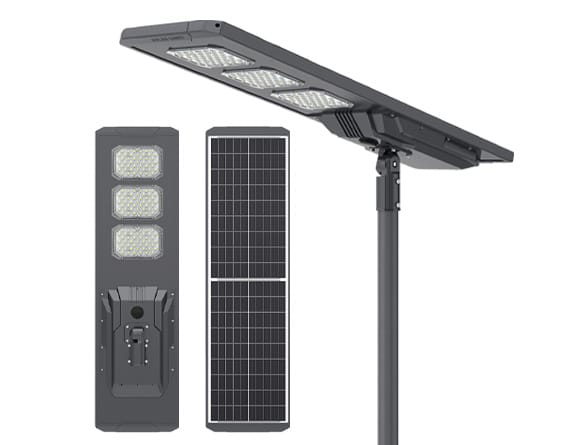

Photos of SSP Series All In One Industrial Solar Street Light

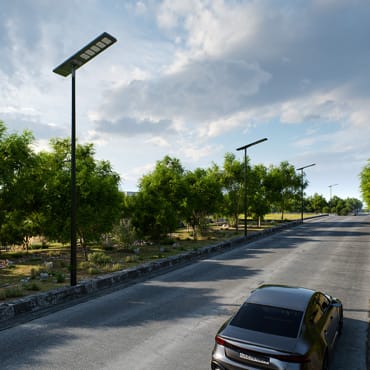

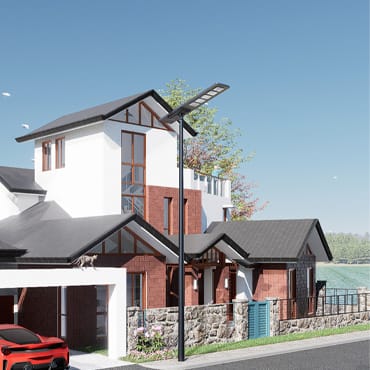

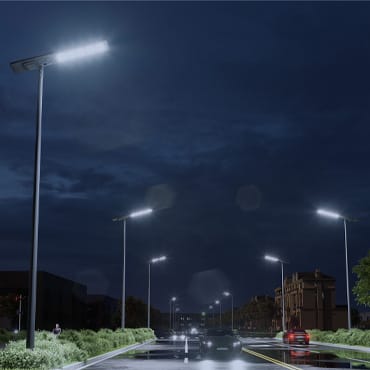

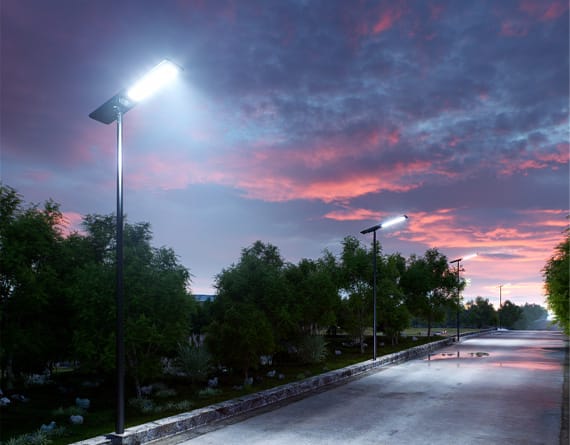

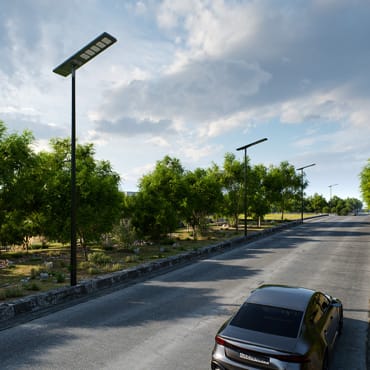

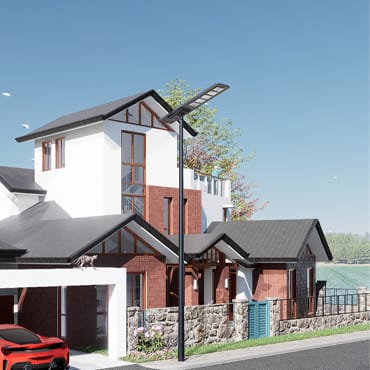

- Application
Packing of SSP Series Industrial Solar Street Light
Related Products (25)
100PCS.
The recommend diameter of pole is 76mm.
There are 3500K and 6000K CCT. for choice.
The lens will not turn yellow and brittle within 5 years, it is made of PC (Japanese emperor) material, and the working temperature is -40℃ ~ +125℃.
Yes, pole is optional.
The warranty is 2 Years.
